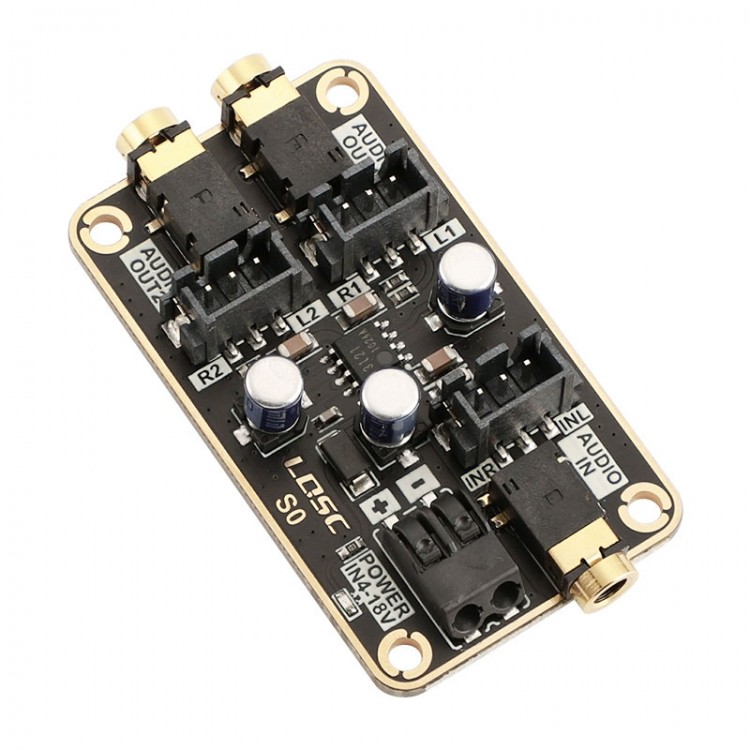

SO Audio Isolation Module Noise Reduction DS Power Amplifier Board Common Ground Lossless Audio Transmission
Specification:
- Working voltage: DC4 - 18V
- Input method: 3.5mm audio input, 3P_2.54mm audio input
- Output method: 2x3.5mm audio output, 2x3P_2.54mm audio output, support multiple power amplifier audio source input
- Frequency input: 20 - 20KHz
- Maximum output amplitude: 3V/RMS
- THD+N: <0.002%
- SNR: -105DB
- Working temperature: -30℃ ~ +85℃
- Protection function: power input reverse connection protection
- Application:
Car audio common ground noise cancellation
Audio DSP common ground noise cancellation
Robot voice system module common ground noise cancellation
Multiple audio equipment common ground noise cancellation
- PCB size: L x W = 55.12 x 32.26mm
- Whole size: L x W x H = 55.12 x 32.26 x 10mm
- Installation hole distance: 48.26 x 25.4mm
- Installation hole size: M3
Package Included:
- 1 x Audio Isolation Module
