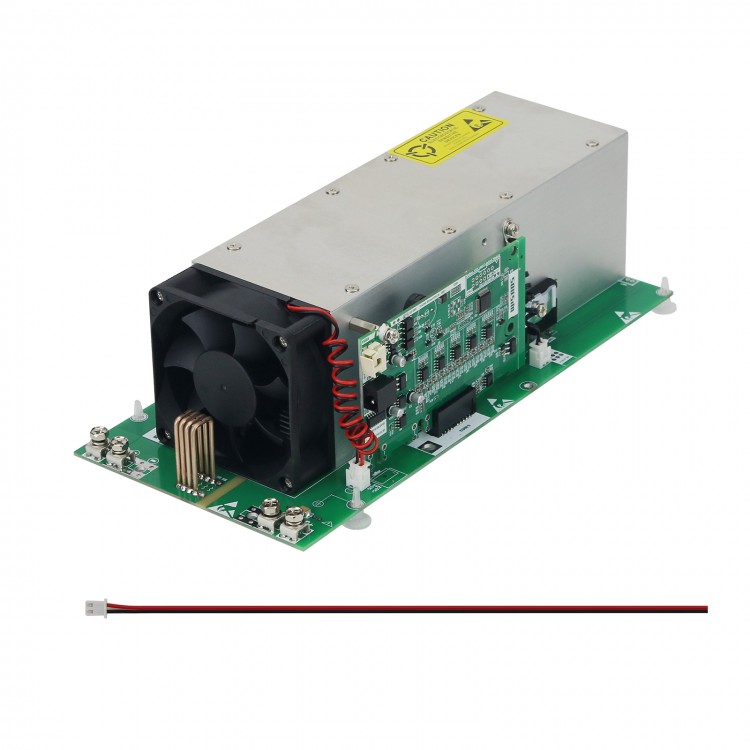

SOUSIM 500W Enhanced 0-200V 0-60A Electronic Load Board Programmable Load Suitable for Aging Racks

SOUSIM 500W Enhanced 0-200V 0-60A Electronic Load Board Programmable Load Suitable for Aging Racks

Attention:
Related technical knowledge such as serial communications is required for the electronic load. And RS485 communications devices needs to be purchased separately.

Features:
- The communication electronic load adopts a modular structure
- Easy to assemble and use. Easy to maintain and repair
- Its main control uses a 32-bit microcontroller (for ARM Cortex-M3) as the control core, enabling fast response, high precision and low power consumption in tests
- With various test modes such as CV/CC/CW/CR dynamic test and list test
- With over-voltage, over-current, over-power and over-temperature protection, and intelligent temperature control for heat dissipation
- CPU real-time tracking makes the load value stable for a long time
- Its PCB circuit board and semiconductor electronic components used are all produced by well-known brand manufacturers at home and abroad
- High quality and high reliability
- The communication port circuit of the load adopts the photoelectric isolation method for communication, making the communication stable and reliable for a long time
- Communication port supports multi-machine parallel communication
- Batch operation and individual operation test can be realized
- Provide standard Modbus communication control protocol and debugging software to facilitate control software development

Technical Parameters:
- Power supply: DC12V/1A-15V/1A (power adapter socket 5.5*2.1mm) (Powered separately. Use 15V power supply for long-time full-load tests)
- Load power: 500W
- Load voltage: 0-200V
- Load current: 0-60A
- Minimum operating current with load: 0.05%FS
- Minimum operating voltage with load: 500W (0-50V/0.5V at 60A) (0-100V 0-200V/0.7V at 10A 20A 30A 40A; 1.3V at 50A 60A)
- Remote measurement: Independent 4-wire voltage measurement terminal 0-65.000V/0.1%±5mV
- Refresh rate: 200Hz
- Dynamic mode: 10kHz T1 & T2 (0.1ms~6553.5ms) (provides a set of ten-step list test mode)
- Current slope: 1mA-2000mA/100us (rising slope 20mA/100us; falling slope 100mA/100us)
- Working environment: 0~40℃; 0~95%RH
- Cooling method: temperature controlled air cooling
- Protection function: over-voltage, over-current, over-power and over-temperature protection
- Extended function: GPIO control board
- Communication port: RS485 communication interface (support 128-node communication)
- Communication parameters: Default communication slave address ①/communication baud rate 9600bps/data bit ⑧/stop bit ①/no parity
- Size (500W): 250 x 117 x 80mm/9.8 x 4.6 x 3.1"
- Net weight (500W): 1.6Kg/3.5Lb

Resolution of the set value:
- Constant voltage: 0.01V
- Constant current: 0.001A
- Constant power: 0.01W
- Constant resistance: 0.1Ω (0.1-6553.5Ω)

Resolution of read-back values:
- Constant voltage: 0.01V
- Constant current: 0.001A
- Constant power: 0.01W
- Constant resistance: 0.1Ω (0.1-6553.5Ω)

Precision of set value:
- Constant Voltage: Enhanced version 0.1%±0.1%FS
- Constant current: Enhanced version 0.1%±0.1%FS
- Constant power: Enhanced version 0.2%±0.25w
- Constant resistance: Enhanced version 0.2%±0.2Ω

Precision of read-back value:
- Constant voltage: Enhanced version 0.1%±0.01%FS
- Constant current: Enhanced version 0.1%±0.01%FS
- Constant power: Enhanced version 0.2%±0.15w
- Constant resistance: Enhanced version 0.2%±0.1Ω

Package Included:
- 1 x Electronic Load
