Spindle Motor 300W Air Cooling E240 with Speed Controller Mount Collet for CNC Engraving Machine DIY
Specifications:
- Spindle motor:DC motor
- Working voltage: 12-50 VDC (dc voltage)
- Power: 300 W
- Speed: 3000-12000 r/min
- Distance: 600 mN. m
- Insulation resistance: > 2Mohms
- Insulation dielectric strength: 400V
- Diameter: 54 mm
- Collet: ER11 (standard 3.175 mm, optional 4/5/6 mm)
- Collet section length: 45 mm tool rod parts, (including nuts and sandwich 50 mm)
- Collet part: diameter 16 mm
- Motor length: 178 mm (including clamping part and motor)
- Spindle net weight: 0.9 KG
- The spindle radial runout: about 0.01 to 0.03.

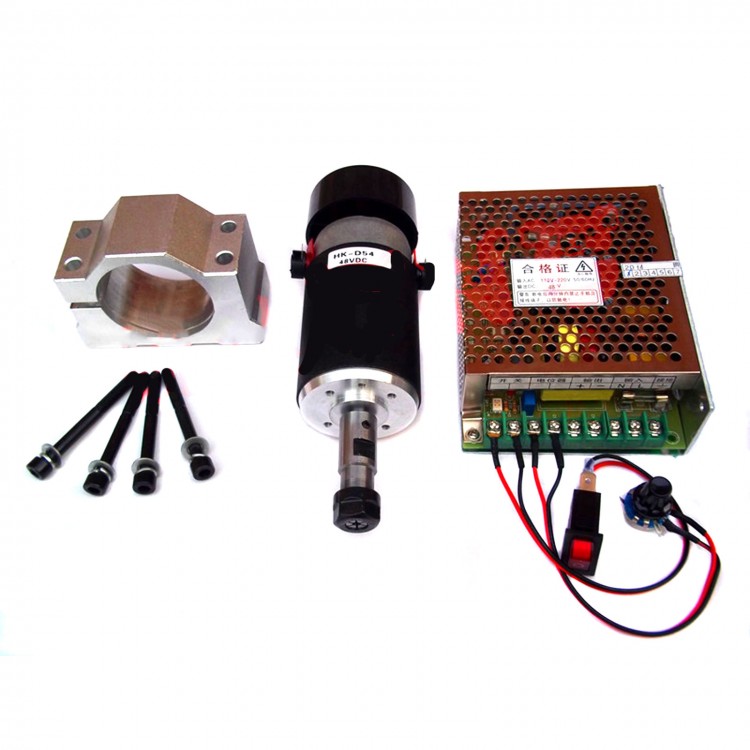

Package list:
- 1 x Spindle Motor
- 1 x Motor mount
- 1 x Collet
- 1 x Power supply with Speed controller
- 4 x Screws
