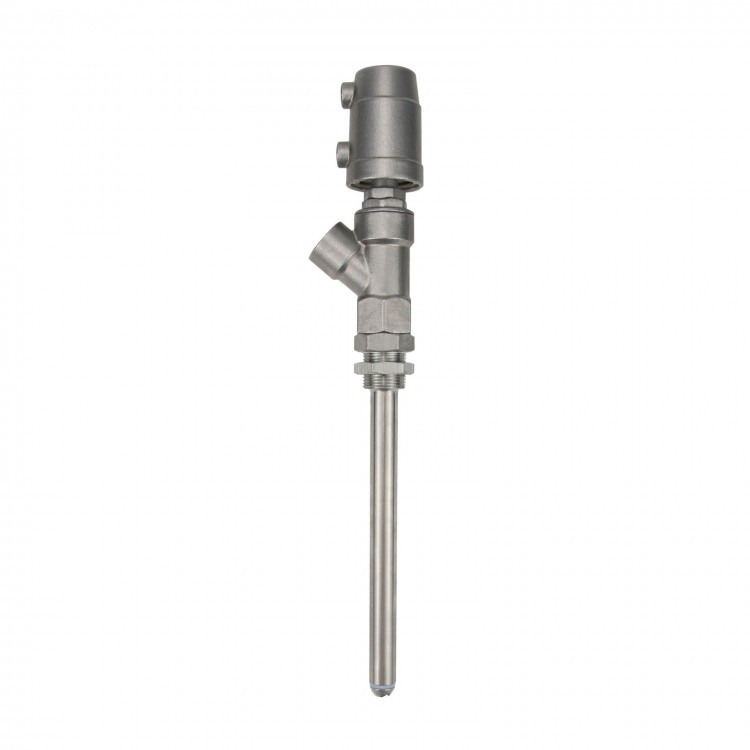

Stainless Steel Long Filling Nozzle DN15-32 (14mm) Filling Valve Double Acting Free PTFE Seal

Stainless Steel Long Filling Nozzle DN15-32 (14mm) Filling Valve Double Acting Free PTFE Seal

Description:
Made of stainless steel material, widely used in filling machinery, especially suitable for the filling of viscous, pasty and foamy liquids. The special sealing design at the bottom of the filling head can realize the filling without dripping. At the same time, the bottom chamfer structure provides positioning function, achieving submersible filling.

Specification:
Control method: double acting free style
Pipeline pressure: 0-0.7Mpa
Control pressure: 0.35-0.4Mpa
Body material: CF8 or CF8M
Sealing material: PTFE
Medium temperature: -10~120℃

Outlet Sealing Form:
1. Outer Seal Type: The filling rod is inserted into the bottom of the bottle, and the liquid is discharged in a spray state.
2. Inner sealing Type: The filling rod can be inserted into the lower part of the bottle mouth or aligned with the bottle mouth to discharge the material in a DC column shape.
3. Variable Diameter Type: Inner sealing and the filling rod changes from thick to thin, it can be easily inserted into the small mouth of the bottle, and the material is discharged in a DC state.

Package List:
1 x Filling Nozzle
