Standard Version XMOS XU208 Asynchronous USB Digital Interface Sound Card Coaxial Optical Fiber IIS Output

Standard Version XMOS XU208 Asynchronous USB Digital Interface Sound Card Coaxial Optical Fiber IIS Output

Description:
- The new generation of XMOS XU208 solution digital interface, higher running memory than the previous generation U8, so that XMOS audio has risen to a new level (XU208 memory 1000MIPS, U8 is only 500MIPS), comparable to the Italian Amanero solution, and more stable (Amanero easy Loss of firmware and bricks), the coaxial output also supports dsd DOP, which Amanero can’t achieve.

Features:
- Coaxial output support DSD dop (only DSD64 format)

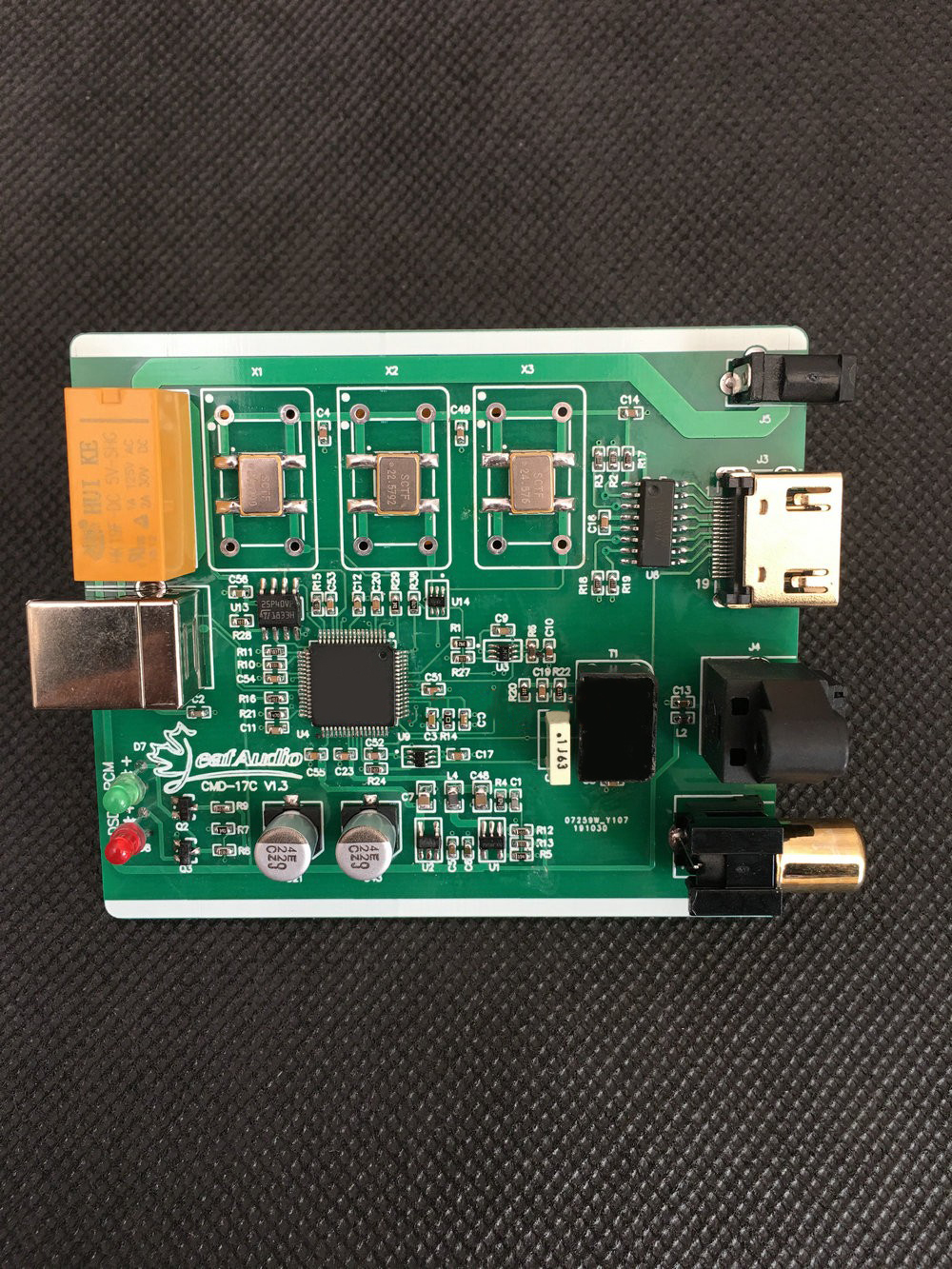

- Gold-plated temperature compensation crystal oscillator and femtosecond CCHD957, 575 can be upgraded (this is a function that other same models do not have)

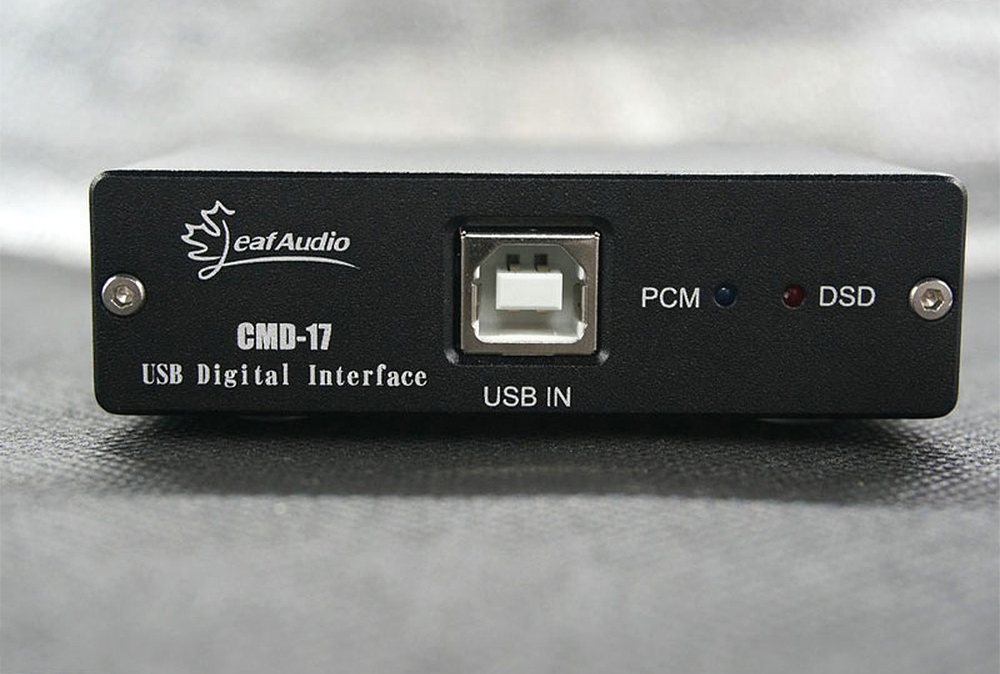

- The board has PCM and DSD indicator lights (this is a function that other models do not have)
- Ultra-low noise LDO stabilized power supply, solid capacitors, high-frequency low-impedance capacitor filtering

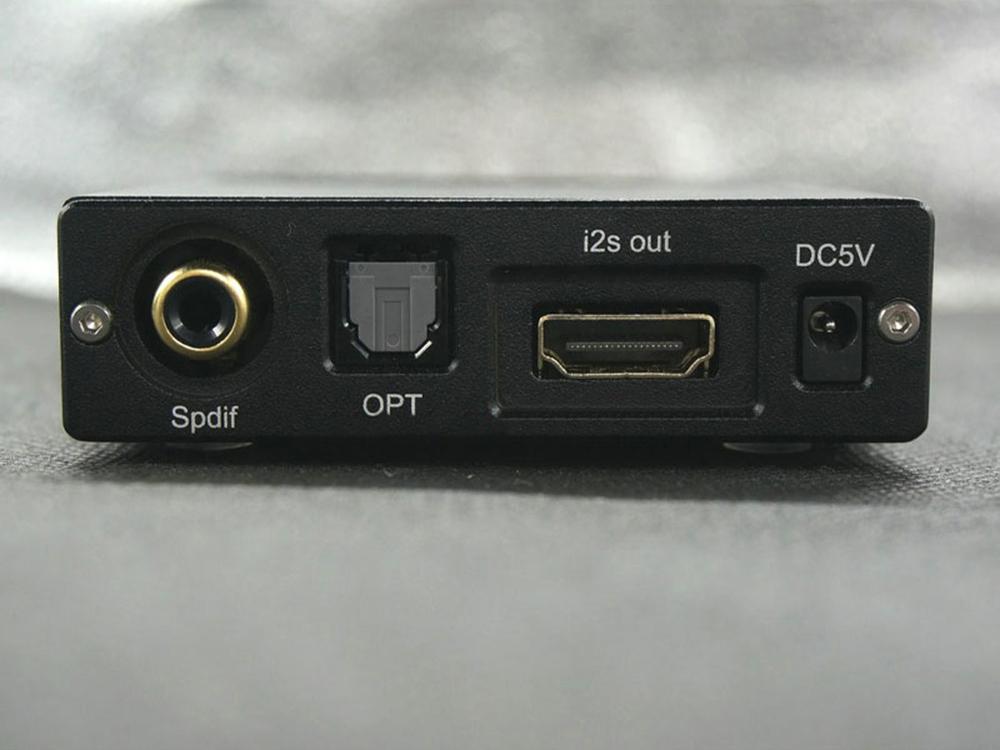

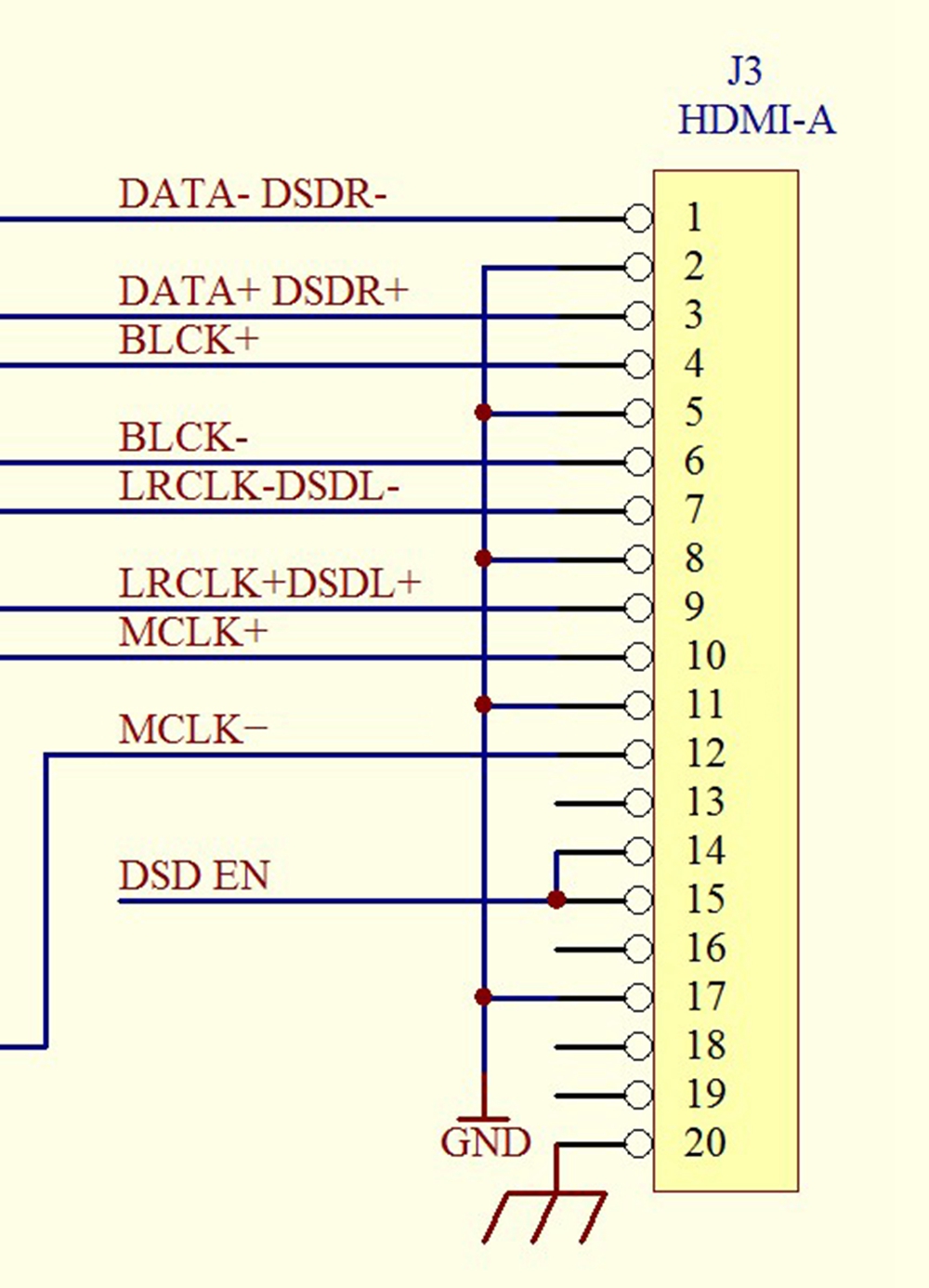

- HDMI IIS output, supports up to Native DSD256 mode
- Support external power supply, voltage: DC5V; current: 200mA; DC port specification: 3.5 - 1.35mm

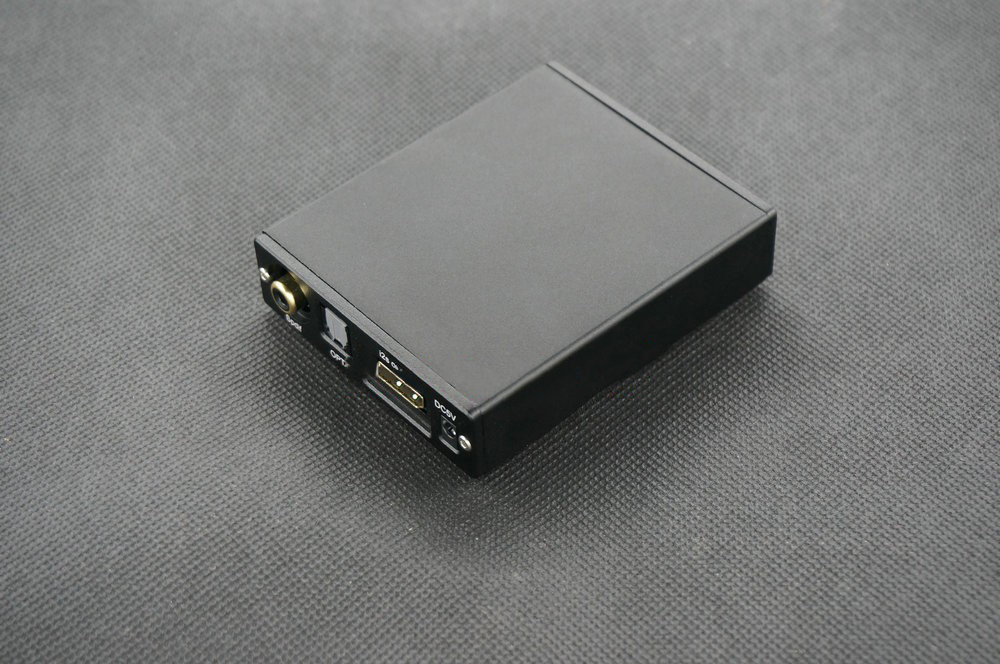

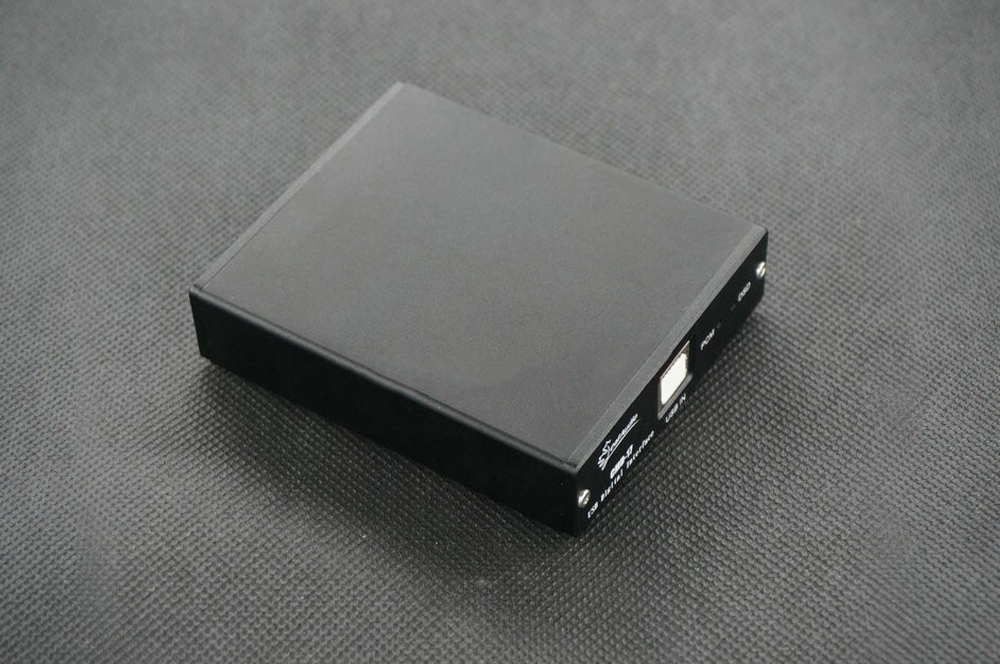

- Dimensions: 89 x 74 x 21mm
- Driver, player, plug-in download address:
  https://pan.baidu.com/s/1Mg2dH5l7M7jF9-UW_pSqow

Sampling rate supported by each output interface:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz,
  176.4KHz, 192KHz, 352.8KHz, 384KHz
- DSD: 2.8MHz (DSD64)-DoP, native
  5.6 MHz (DSD128)-DoP, native
  11.2 MHz (DSD256)-native
  [I2S out supports all sampling rates, S/PDIF supports up to 192KHz and DOP DSD64]
- Bit width: up to 32 bit over I2S output
  Up to 24 bit over S/PDIF

System compatibility:
- Windows 7, Windows 8, Windows 10; 32/64 bit, need to install special driver
- Native MacOS 10.6 and later, use the system's own driver
- Native Linux with UAC2 compliant kernel, using the system's own driver, (tested on Ubuntu and Daphile systems, based on INTEL X86 platform)
- For Android OS 4.2 and above, the device needs to support OTG function. Generally speaking, Android 5.0 system is supported by default. It is recommended to use special players (such as Haiby player) below 5.0. Note: You need to purchase a camera kit separately to connect to an iPhone

Note:
- The maximum withstand voltage of this digital interface is 5.5V. Try to use a linear power supply (with a regulator chip inside) or a computer USB port for power supply. Do not use a switching power supply such as a mobile phone charger. IIS Output cant not be connected with HDMI port. Otherwise, it will not be guaranteed or returned.

Package Included:
- 1 x Digital Interface
