START SHAPHON Remote Control Kit + CC-M3 or CC-M4 CNC Plasma Controller for Plasma Cutting Machines

START SHAPHON Remote Control Kit + CC-M3 or CC-M4 CNC Plasma Controller for Plasma Cutting Machines

Features:
- The system can be upgraded via a U disk, which is convenient, simple and practical. Lifetime upgrades are provided.
- Supports plasma dynamic piercing. Raise the plasma cutter at the moment of plasma piercing to protect the tip.
- Up to 58 standard graphics libraries. Users can directly retrieve the shape, modify the parameters and then quick cutting is enabled.
- The system has a built-in nesting function: quickly combine nesting cutting of multiple parts
- Break-point recovery function: Resume cutting after cutting interruptions such as sudden power failure and pause.

Basic Parameters:
- System name: CC-M3 or CC-M4 (please choose one)
- Number of linkage axes: 2-axis linkage
- Number of inputs: 16 opto-isolated inputs
- Number of outputs: 16 opto-isolated outputs
- Display size: 7 inches, 16 million colors bright LCD screen
- Memory: 64M SDRAM
- User storage space: 4G
- Frequency: 400MHZ
- USB type: USB1.1
- Number of USB port: 1 front interface; support U disk over 16GB
- Keyboard: PCB film keyboard
- Chassis: Fully enclosed structure, resistant to electromagnetic radiation and static electricity

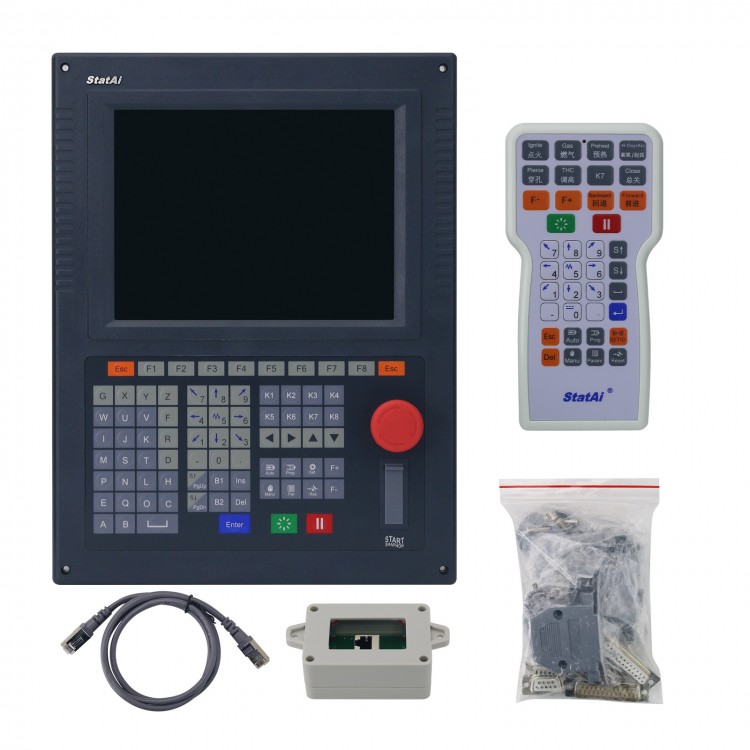

Package Included:
- 1 x CNC Plasma Controller
- 1 x Remote Control
- 1 x Receiver
- 1 x Cable

Note:
- Please leave a message of the controller type (CC-M3 or CC-M4) while purchasing. Thank you!
