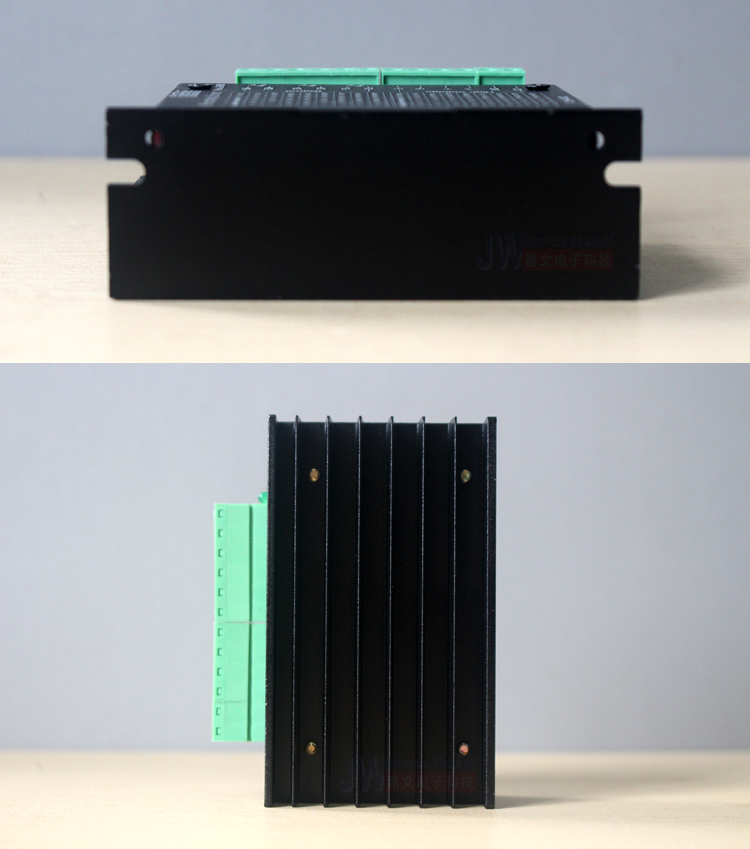

Stepper Motor Driver Controller TB6600 Upgraded 4A 9-42V (Pulse 3-24V) For 42/57 Stepper Motor
Features:
- 9V-42V DC power supply (recommended 12-24V)
- The input voltage of control signal 3.3V-24V common

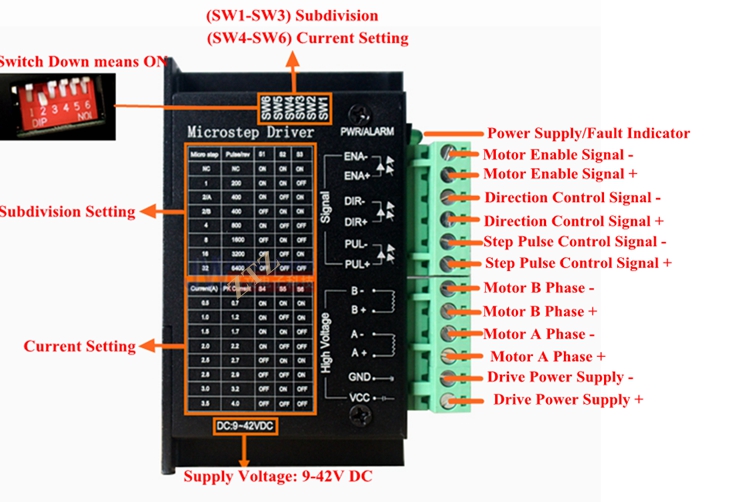

- Up to 32 subdivisions of 6 models optional
- The maximum output current 4.0A, eight kinds of output current
- Suitable for 57, 42 stepper motor 1.8NM and above
- H-bridge bipolar constant-phase flow-driven
- The input signal is high-speed optical isolation
- Built-in temperature protection and over-current protection
- Energy-Saving: semi-automatic current lock function

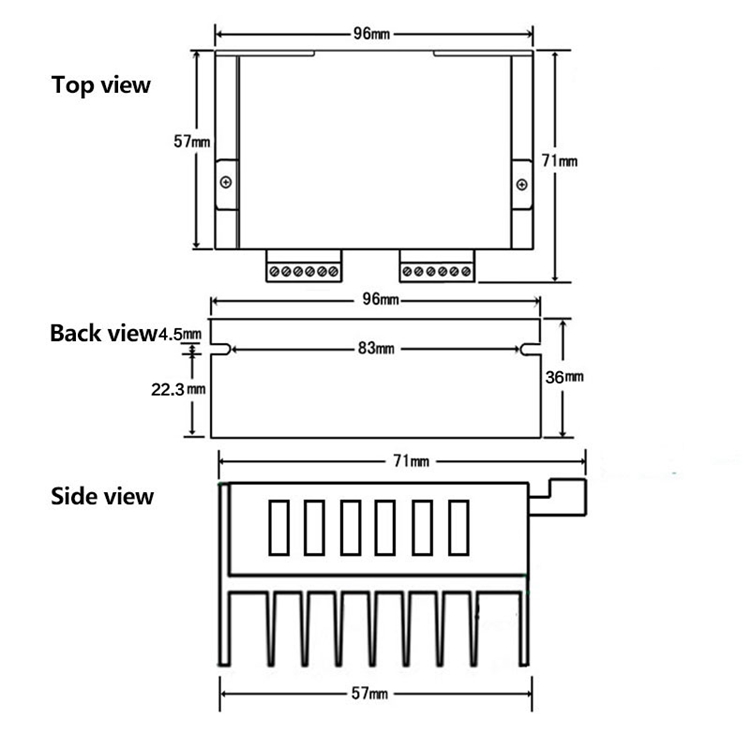

- Compact size saving space
Package Included:
- 1 x Stepper Motor Driver Controller
