- Mode:STG-5000W

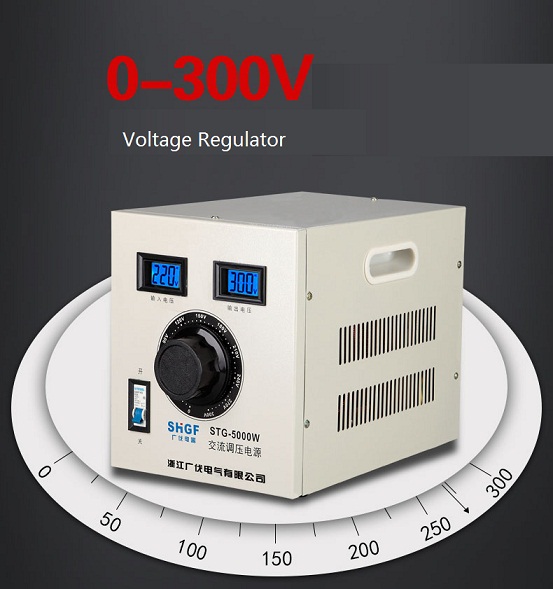

- Name:Single Phase AC Voltage Regulator Power Supply
- The max current:20A
- Input voltage:220V
- Frequency:50/60Hz
- The max power:5000W
- Adjustable voltage:0-300V
- Temperature rise:<=60℃

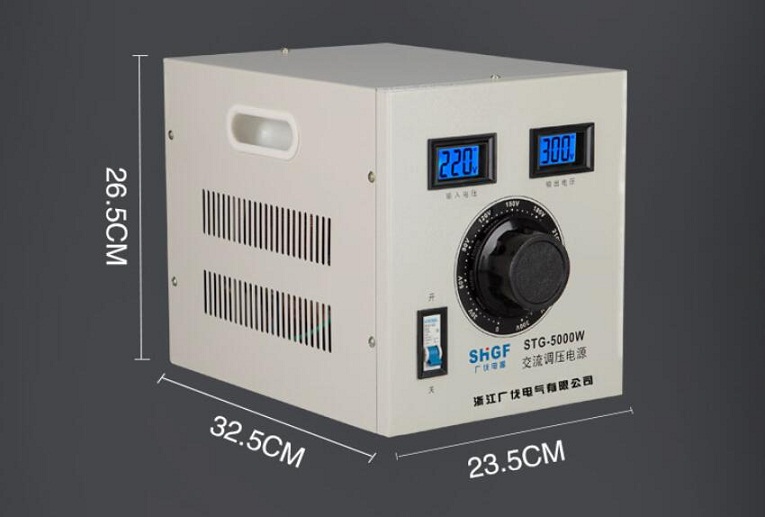

- Dimension:23.5x32.5x26.5cm
- Net weight:19.92kg
Voltage Regulator Autotransformer load power characteristics:
Output voltage | 220V | 150V | 100V | 50V | 10V |
Load power | <=4000W | <=3000W | <=2000W | <=1000W | <=200W |
Calculation Corresponding load voltage value the max power formula: Output load power(W)=Output volatge(V)*The max current(A)
Note:The output voltage is lower,the output power is lower,the load power is lower.

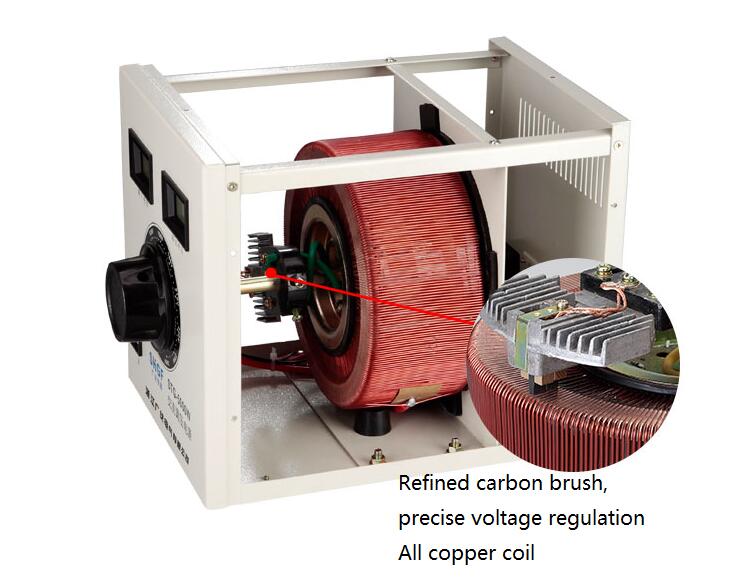

During normal operation, the regulator should be checked regularly by charcoal brush and make sure that the brush and contact parts won’t be more than the wide of two wires. Check the insulation resistance regularly, the insulation resistance between coil and base shouldn’t be less than 2mm. Please connect the ground line to regulator case. After operation, turn the hand wheel pointed to “zero” place and cut off the power.
Package Included:
-1 x STG-5000W Voltage Regulator
