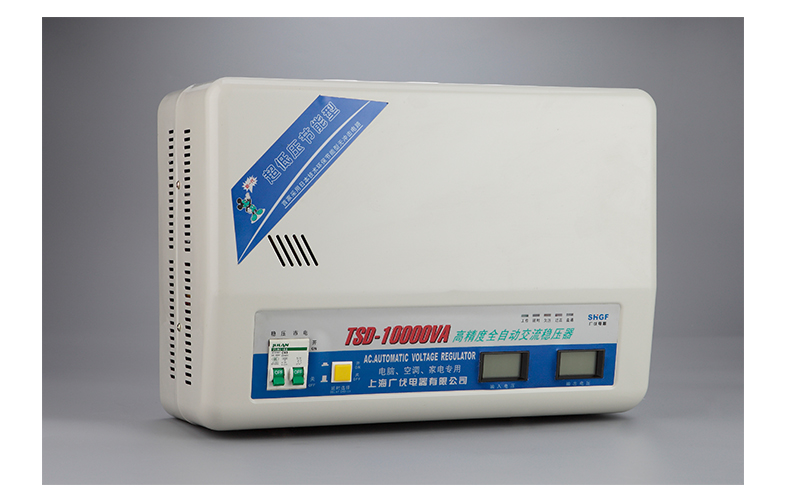

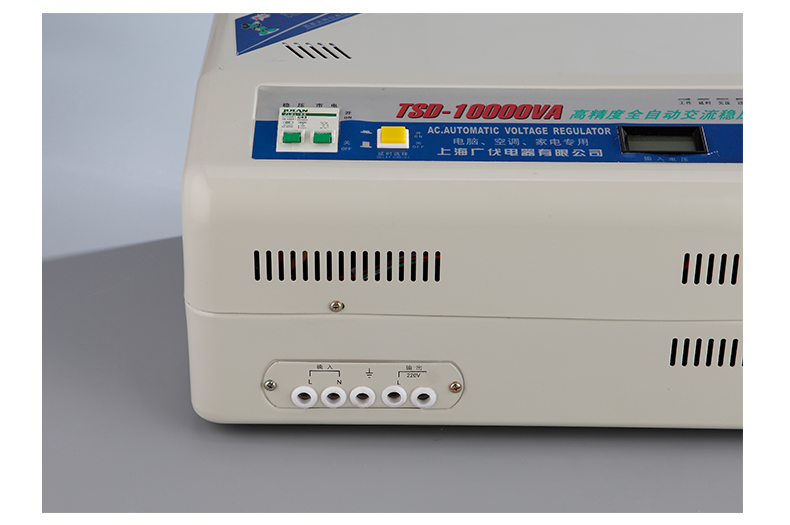

TSD-10000VA AC Automatic Voltage Regulator 220V Variac Autotransformer 10KW

TSD-10000VA AC Automatic Voltage Regulator 220V Variac Autotransformer 10KW

Product Description:

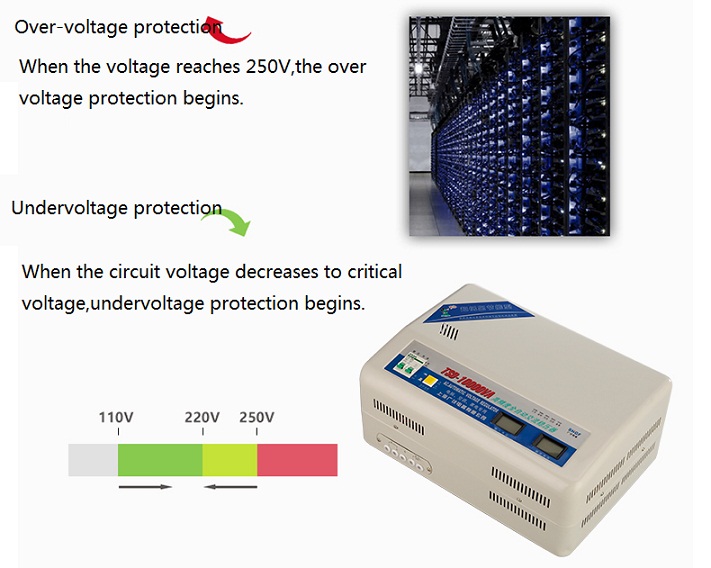

- When the voltage reaches 250V,the over voltage protection begins.
- When the circuit voltage decreases to critical voltage,undervoltage protection begins.
- When the load current exceeds 45A,over-load protection begins.
- Undervoltage protection and over-load protection.

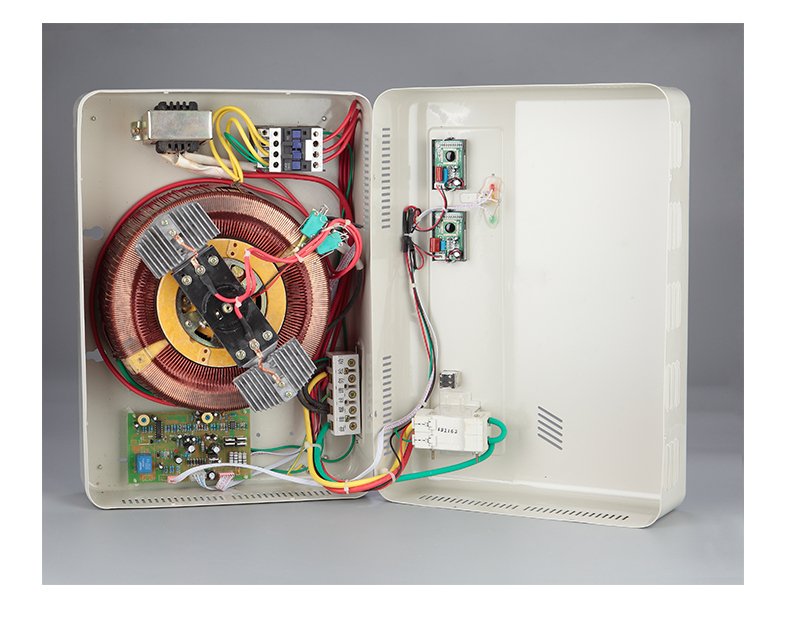

- Copper coil imported carbon brush voltage regulator.
- Integrated circuit
- Delay switch setting
- Dual switch transfer

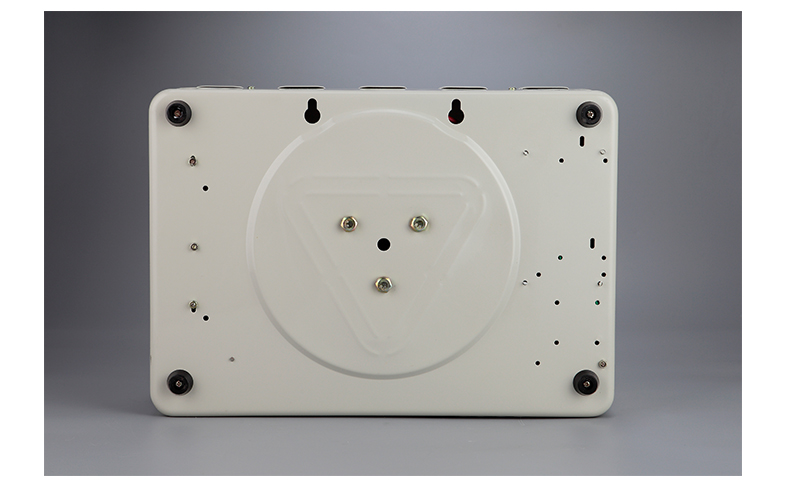

- Wall hanging
- LCD display screen

Specification:
- Mode:TSD-10KW
- Delay time:3-10 minutes
- Input voltage:90-260V
- Voltage stabilized accuracy:220V+-3%
- Output voltage:220V
- Frequency:50/60Hz
- Over-voltage protection:output 246V+-4
- Protection current:50A
- Working temperature rise:<80K
- Volatge regulator speed:<1s (The voltage vary is over 10%.)
- Insulation resistance:>=5ohm
- Weight:20kg
- Dimension:44x31x8cm

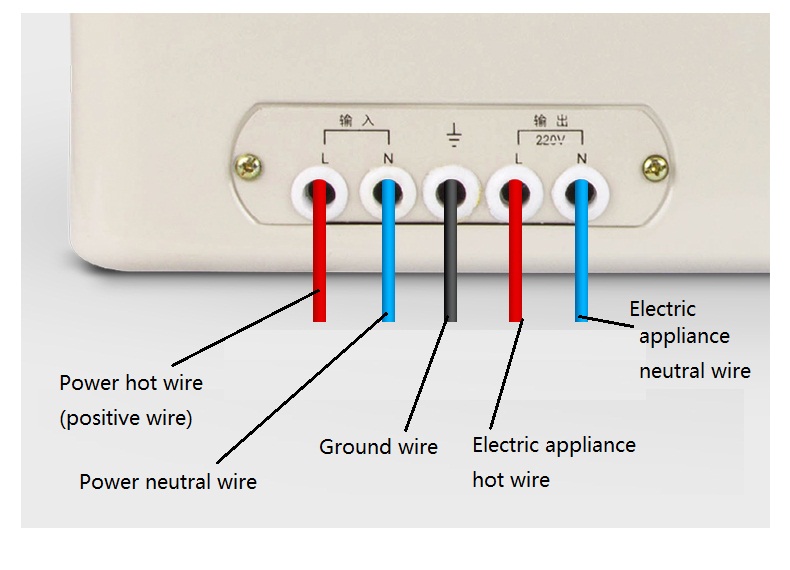

Install:During normal operation, the regulator should be checked regularly by charcoal brush and make sure that the brush and contact parts won’t be more than the wide of two wires. Check the insulation resistance regularly, the insulation resistance between coil and base shouldn’t be less than 2mm. Please connect the ground line to regulator case. After operation, turn the hand wheel pointed to “zero” place and cut off the power.

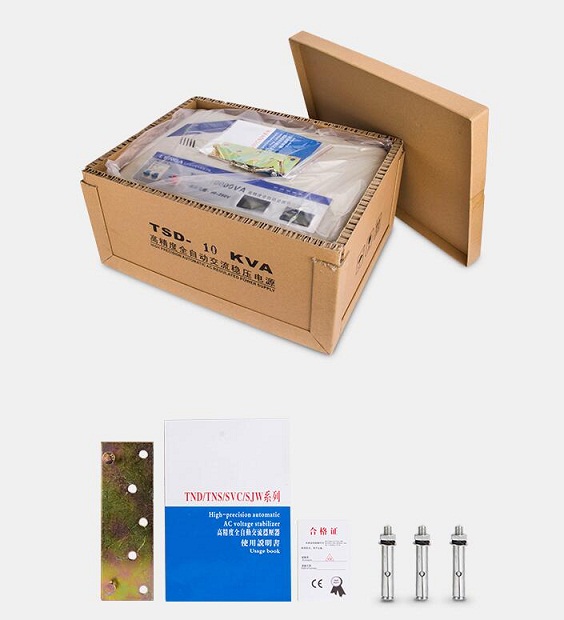

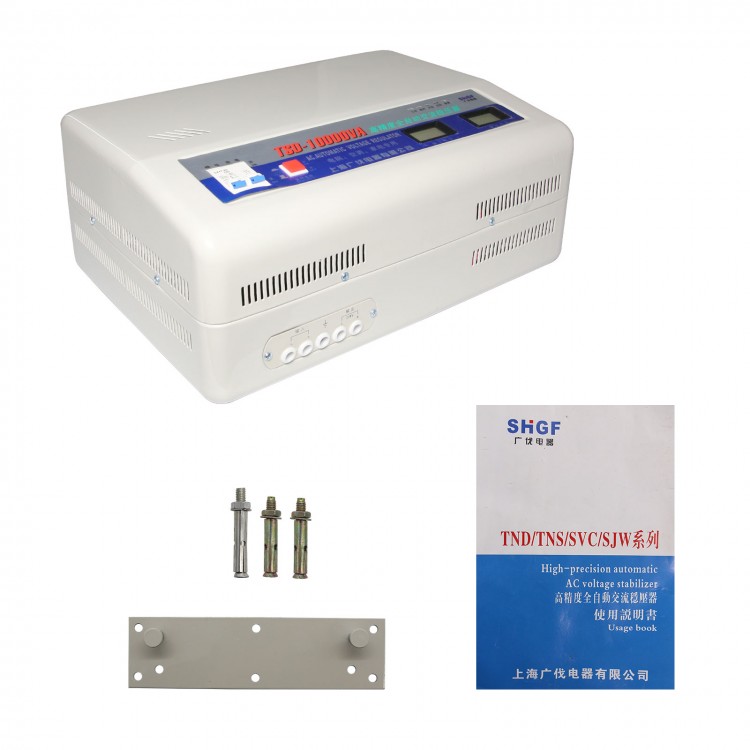

Package List:
- 1 x Voltage Regulator
- 1 x Mounting Expansion screws
- 1 x Mounting bracket
- 1 x Certificate
- 1 x User manual
