STK4196MK10 Stereo Amplifier HiFi Power Amplifier Power Amp 50W+50W Assembled without Bluetooth

STK4196MK10 Stereo Amplifier HiFi Power Amplifier Power Amp 50W+50W Assembled without Bluetooth

Features:
- Exquisite sound. STK4196MK10 is a special power amplifier module for sound adjustment. The sound features warm, delicate, and gorgeous atmosphere.

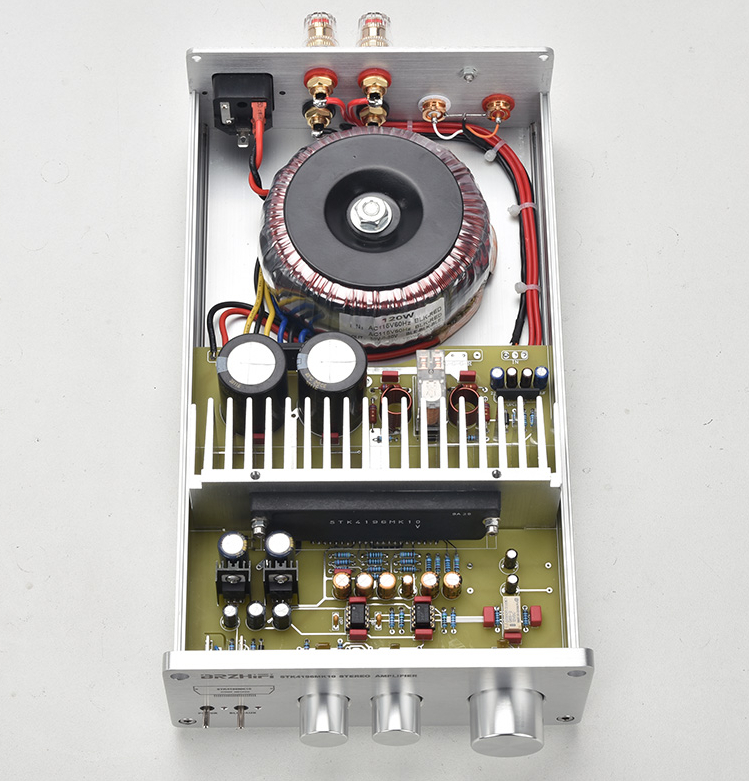

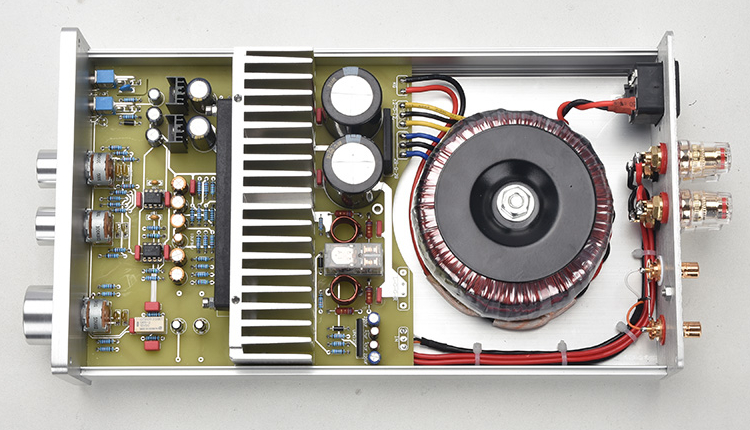

- Optimized the layout structure. The rectification and filtering, protection, pre-stage power supply and amplification are divided into four areas.
- The power amplifier module STK4196MK10 has the same external package size as STK4191X and can be directly interchanged. The designed output power is 50W +50W @ 8 ohm, and the distortion THD is 0.01%. Promoting general bookshelves or floor-style speakers can achieve satisfactory results.

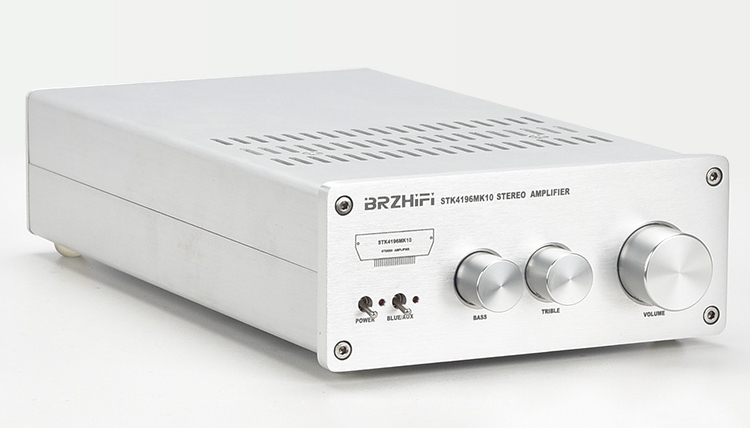

- Equipped with a high and low tone adjustment circuit for easy use.

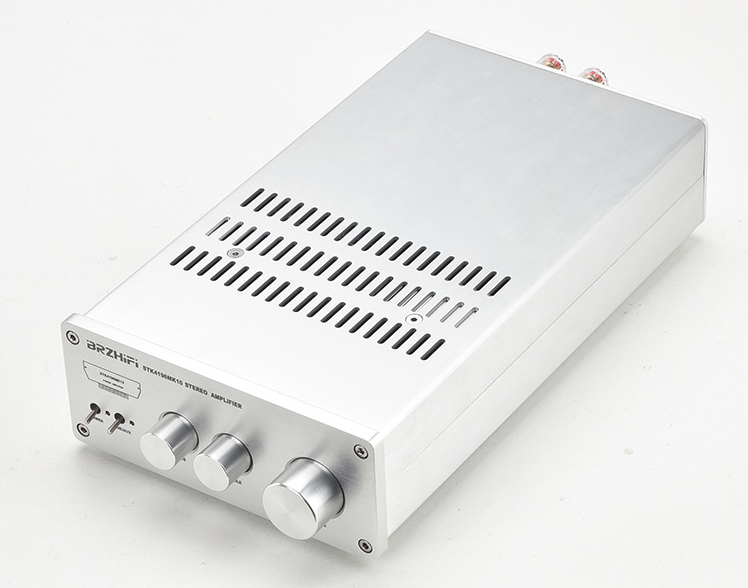

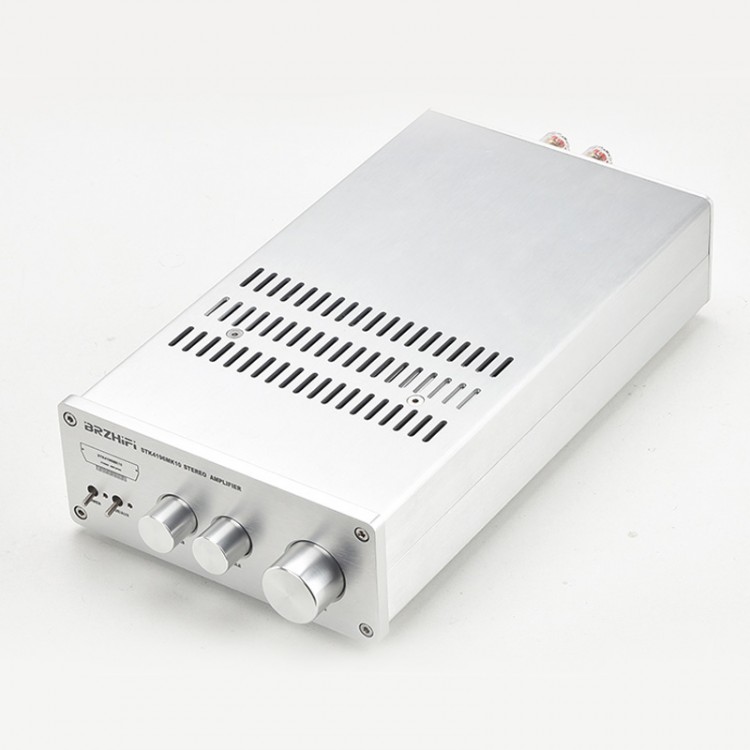

- Its shell is made of CNC all aluminum alloy

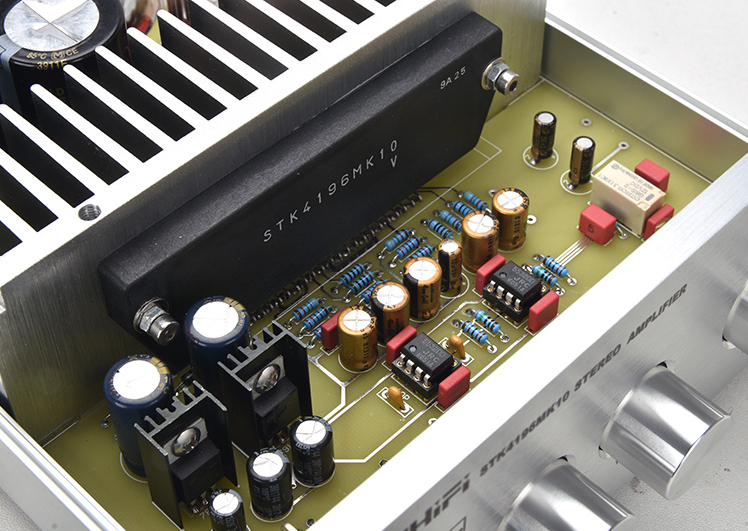

- The center heat sink isolates power supply protection and amplification parts to ensure as little interference as possible.

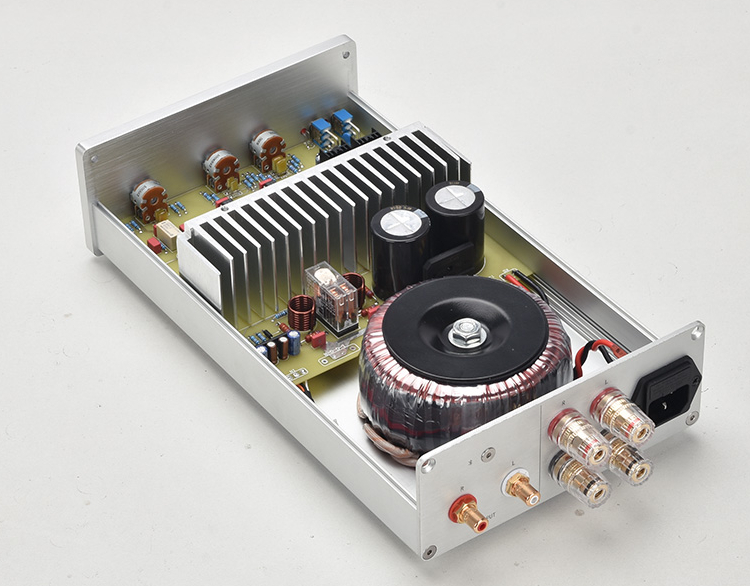

- The power supply of this machine is divided into three groups, which respectively supply power to the power amplifier, pre-amp and protection part.
- The heat sink is designed independently, connecting the bottom plate and the cover plate at the same time, increasing the effective heat dissipation area, making the appearance of the machine exquisite and compact

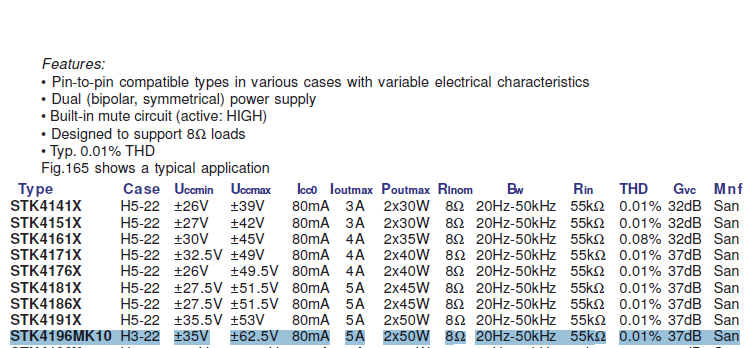

Basic Performance Parameters:
- Working method: Class AB
- Quiescent current: 80mA
- Output power: 50W + 50W/8Ω, distortion 0.01%
- Frequency response: 20Hz to 50KHz
- Dynamic range:> 100 dB
- Machine size: 172 * 67 * 301MM
- Machine weight: 4.4KG

Package Included:
- 1 x Set of Power Amplifier

Note: It is assembled and ready to use.
