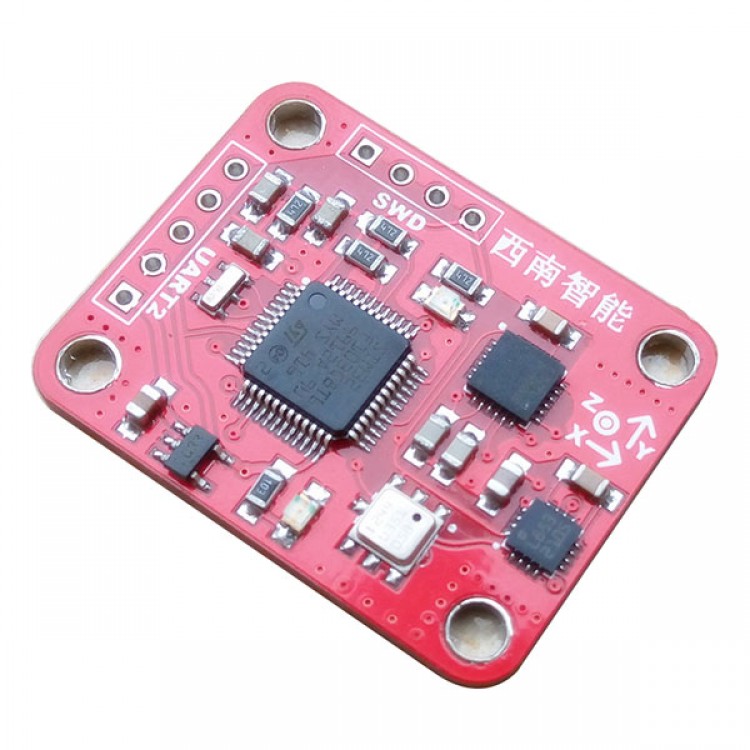

STM32 AHRS MPU6050 HMC5883 BMP180 Attitude Gyro/Accelerometer Module for FPV DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.90
  • Price in reward points: 479 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.94 $45.98 $44.55 $42.63 Contact US
Quantity:
STM32 AHRS MPU6050 HMC5883 BMP180 Attitude Gyro/Accelerometer Module for FPV DIY

Function:
- Reads the MPU-6050 output triaxial angular velocity and triaxial accelerometer ADC values
- read the respective axes magnetometer HMC5883 the sensed value of the magnetic strength of the ADC
- Read the barometer BPM180 temperature and pressure and after correction procedures are real pressure altitude
-  Run an IMU solver, get the current module pitch, roll, heading, altitude and temperature pressure
-  The program will be considered after the individual sensor values ​​gesture of reconciliation sent to the main port TXO output to the host computer. Waveform and each sensor values ​​connected PC displays
- Compiler MDK: build environment: MDK-Lite Version: 4.23

Hardware consists of:
- MPU-6050 integrated 3-axis gyroscope and 3-axis accelerometer
- HMC5883L 3-axis geomagnetic sensor
- BPM180 barometric altimeter
- STM32F103C8T6 32-bit ARM CortexM3 processor clock running at 72M

Product Specifications:
- 32mm X 25mm

Download debugging interface connections:
- JTAG interface AHRS board
- 3.3V VCC
- GND GND
- SWDIO SWDIO
- SWCLK SWCLK

Communication interface:
- UART interface AHRS board
- 3.3 / 5V VIN
- GND GND
- TXD RXD
- RXD TXD

Set the serial port parameters:
- Baud Rate: 115200
- Data bits: 8
- Parity: None
- Stop bits: 1
- Flow control: None

Shipping list:
- STM32 AHRS MPU6050 HMC5883 BMP180 Attitude Gyro/Accelerometer Module
- Two pairs of curved straight pin
- Four pillars;
- Two connecting cables;
