• STM32 Development Board Cortex-M4 Small System Board STM32F429IGT6 Core Board

STM32 Development Board Cortex-M4 Small System Board STM32F429IGT6 Core Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.23
  • Price in reward points: 652 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.93 $62.62 $60.66 $58.05 Contact US
Quantity:

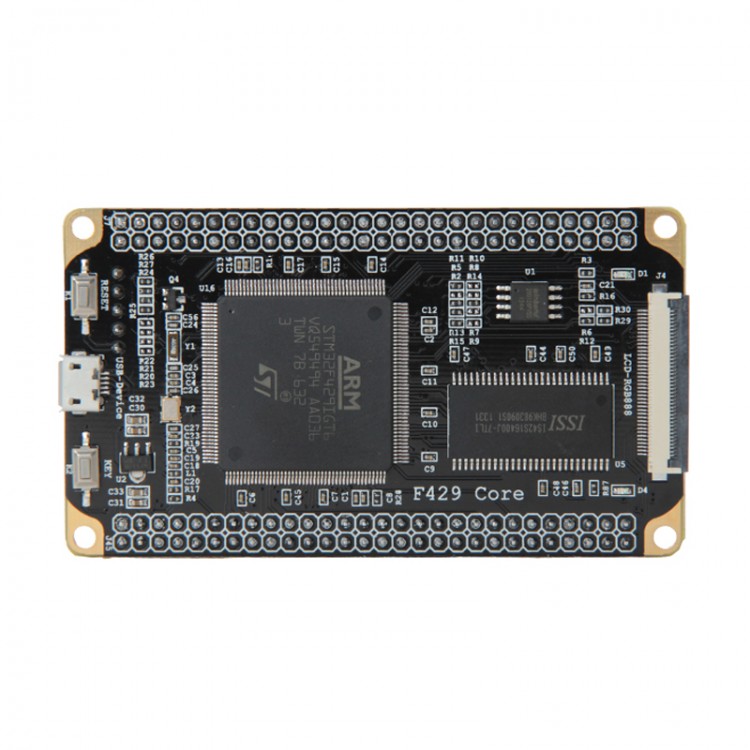

STM32 Development Board Cortex-M4 Small System Board STM32F429IGT6 Core Board

Specifications:

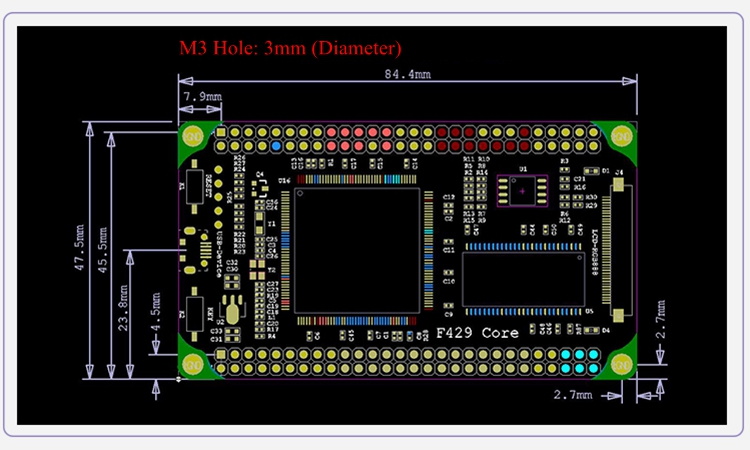

- Size: 84.4 x 47.5mm
- PCB: 6-Layer, Black & Golden
- CPU: STM32F429IGT6, 176-Pin, 1MB Flash, 256Kbyte RAM
- Basic Frequency: 180M
- Serial Flash: 16MB, Model: W25Q128
- SDRAM: 8MB, Model: IS42S16400J-7TLI
- Download: One SWD download port
- Buttons: One Reset Button, One User Button
- Micro-USB Port: One port, for 5V power supply and USB-Device
- LDO Chip: One piece, for 5V to 3.3V
- LCD Port: One port for 40-pin FPC, 0.5mm spacing, RGB888 data format
- LED: One power supply LED, one user LED
- GPIO: Except for SDRAM IO, serial FLASH IO and crystal oscillator IO are occupied, and the other IO boards use 2.54 pin headers.

F429IGT6 Chip Resource:

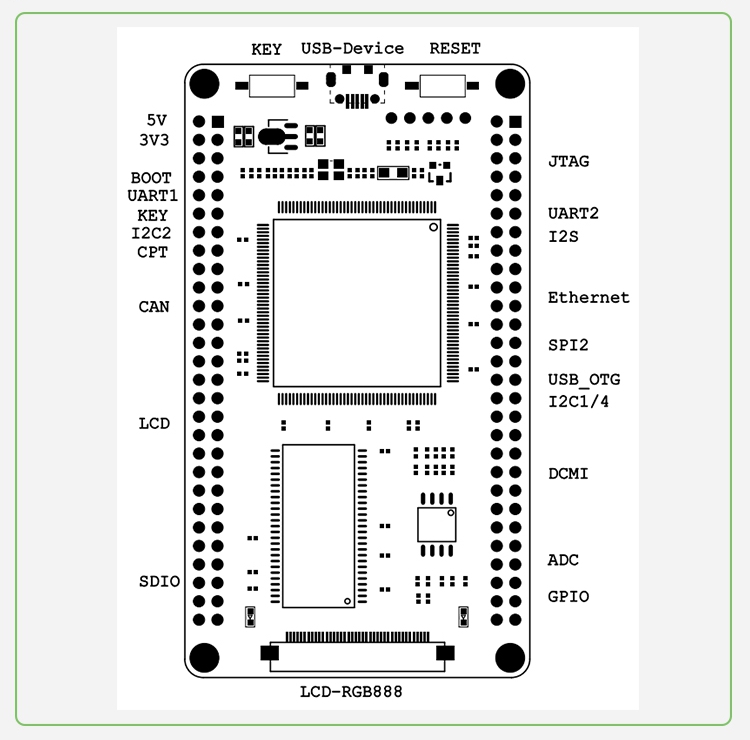

In addition to the on-board SDRAM and the GPIO occupied by the SPI FLASH, all the GPIO peripheral pins of the core board are pinned out, and the various resources of the chip can be used freely.

- Inner SRAM: 256K Byte
- Inner Flash: 1M Byte
- Available Frequency: 180MHz

- GPIO: Total 140
- SPI Ports: 6
- I2C Ports: 3
- USART (Synchronous Serial Port): 4
- UART (Asynchronous Serial Port): 4
- CAN Ports: 2
- 12-Bit ADC: 3 Ports, total 24 channels
- 12-Bit DAC: 2 Channels
- Timer:
  Common Timer (Acquisition/Output PWM Signal): 10pcs, 4 channels for every timer
  Advanced Timer (Acquisition/Output PWM Signal +Encoder + Dead Zone Control): 2pcs, 4 channels for every timer
  Basic Timer (Only for Timing): 2pcs
- DCMI Camera Port: 1
- LTDC LCD Port: 1
- FMC Memory Control Port: 1 (On-board SDRAM is already used. They can share data/address wire)
- SDIO Port: 1
- USB OTG Port (Full-Speed/High-Speed): 1
- SAI Audio Port: 1
- I2S Audio Port: 1
- Ethernet Port: 1

Package Included:

- 1 x STM2 Development Board
