WeAct V3.0 STM32F411CEU6 STM32F4 Core Board Development Board Smallest System Board MicroPython

WeAct V3.0 STM32F411CEU6 STM32F4 Core Board Development Board Smallest System Board MicroPython

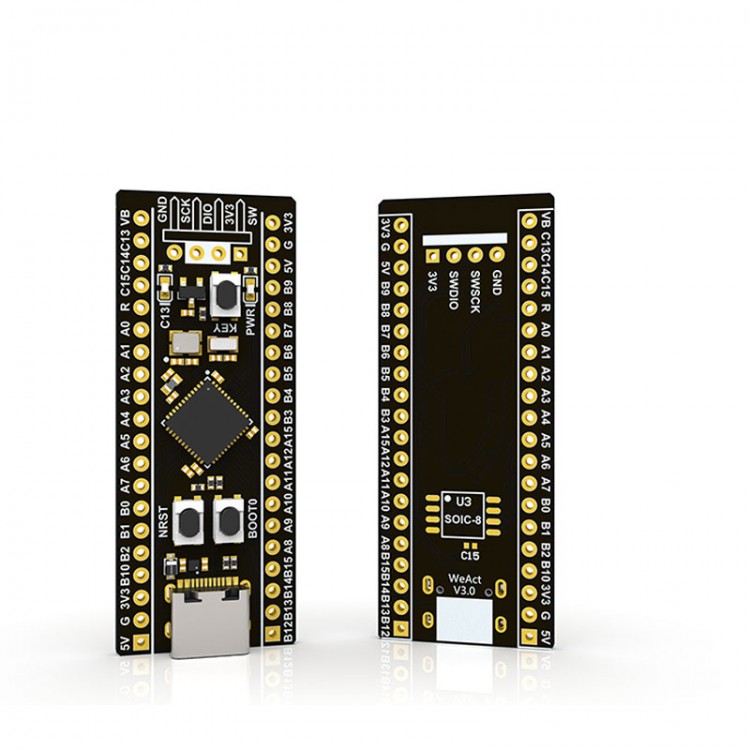

Features:
- Provide CMSIS-DAP firmware (contact us to receive firmware after purchasing), change to CMSIS-DAP debugger in seconds

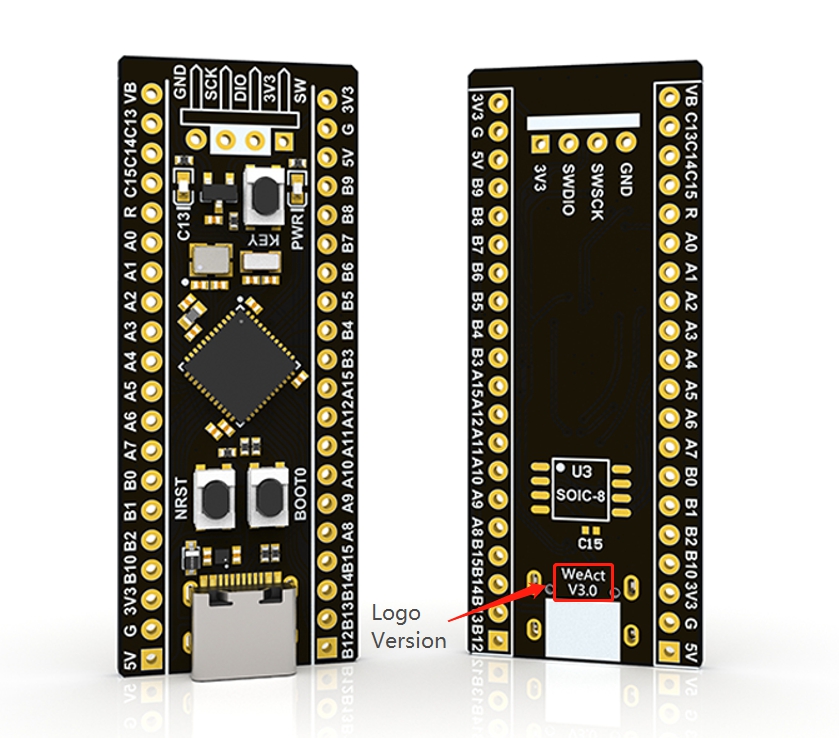

- The logo and version number are printed, and the board uses immersion gold technology
- Frequency 100Mhz, ROM 512KB and RAM 128KB

Core Board Information:
- Gitee code cloud data routine firmware link: https://gitee.com/WeAct-TC/MiniSTM32F4x1
- Github data routine firmware link: https://github.com/WeActTC/MiniSTM32F4x1
- Common software link: https://pan.baidu.com/s/1vW9H-q9C5n2yVAEp38pw5A (password: gxnx)
- STM32 download and burning instructions: https://www.weact-tc.cn/2019/11/30/STM32Download/
- Part of the tutorial for MicroPython: https://www.weact-tc.cn/2020/01/01/micropython/
- MicroPython compilation information: https://github.com/WeActTC/WeAct_F411CE.git

More Details:
For ARM Cortex M4
- Up to 100MHz operating frequency, no waiting for memory access
- FPU floating point calculation unit

Memory
- 512KB ROM flash program memory
- 128KB SRAM static random access memory
- SPI Flash (empty soldering)

Clock and power
- 3.3V-5V power input, 3.3V LDO maximum output current 100mA
- Use the USB C interface, and there are diodes in series to prevent power supply backflow
- 25Mhz 9pF high speed crystal oscillator
- 32.768K 6pF low-speed crystal oscillator

Interface and buttons
- USART x 3, I2Cx 3, SPI x 5, USBFS x 1
- ADC x 1(10), I2Sx 5, CRC x 1, TIM x 8
- 20Pin 2.54mm pitch I/0 interface x 2
- 4Pin 2.54mm pitch SW debugging interface x 1
- USB C (type C) interface x 1
- User button KEY(PA0) x 1
- Reset button NRST x 1
- BOOT0 button x 1

Design and quality
- Adopt lead-free soldering process, Immersion gold PCB
- Set BOOT in the form of buttons
- Using high-quality crystal oscillator, metal shell, can start vibration well
- Always use original chips for ST

How to Enter ISP (Serial/USB Download):
- Method 1: Press BOOT0 and NRST at the same time, release NRST. Release BOOT0 after 0.5S, you can enter ISP mode
- Method 2: In the power-off state, press and hold BOOT0 to power on, wait for 0.5S, and release it to enter the ISP mode
- Serial port download: use USB to serial port to connect to the PA9 and PA10 of the core board, do not use the USB port for power supply
- USB download: Use a data cable to connect to your computer. If there is an unrecognized problem, you can properly heat the chip (25℃+), and then re-enter the ISP mode
- Software: STM32CubeProg, WeAct Studio Download Tool (see data/Soft folder)

How to enter H IDIAP (USB download):
No need for USB to serial port, no debugger, no computer driver. Just a TYPE-C data cable to complete the firmware download
1. Burn the HIDIAP firmware (the program is flashed in by default, which is a special test version)
2. Press and hold the KEY button to power on or press the KEY button to reset, LED C13 flashes, release the button to enter
3. Confirm that the APP firmware address is 0x8004000, and the interrupt address offset is 0x4000
4. Download using Soft/WeAct_HID_FW_Bootloader/WeAct_HID_Flash_xxx.exe

Development Methods and Routines:
- STM32HAL library routines, USB Disk&&FATFFS routines, see data/SDK folder
- STD standard library routines, see the documentation/SDK folder (no technical solutions are provided)
- Provide MicroPython firmware and configuration files, see the documentation/SDK folder (no technical answers are provided)
- For Arduino programming, search for Arduino_Core_STM32 in Github (No technical answers are provided)
- Data manual and reference manual are in English, please refer to the document/Datasheet folder

Dimensions and Accessories:

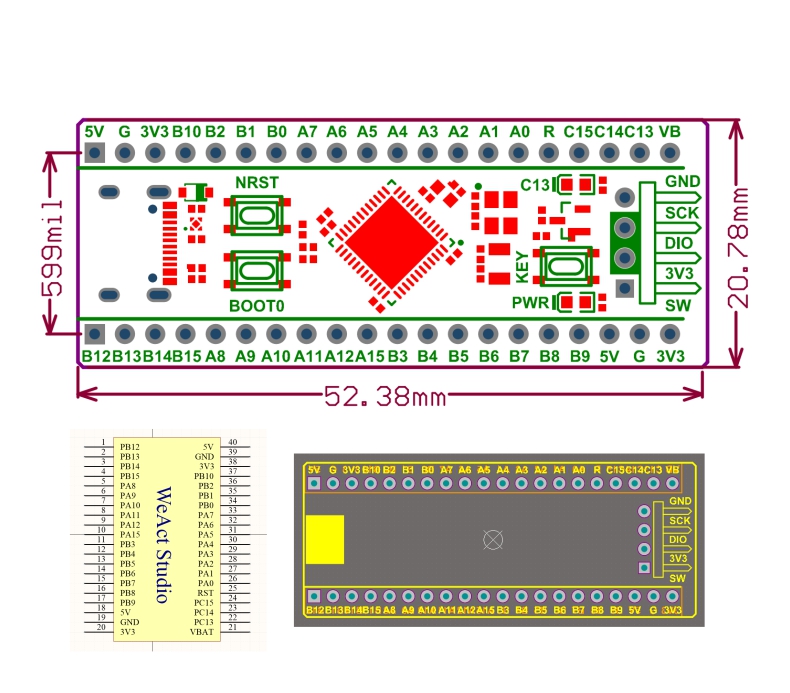

- Dimensions: 52.38 x 20.78mm/2.1 x 0.8"

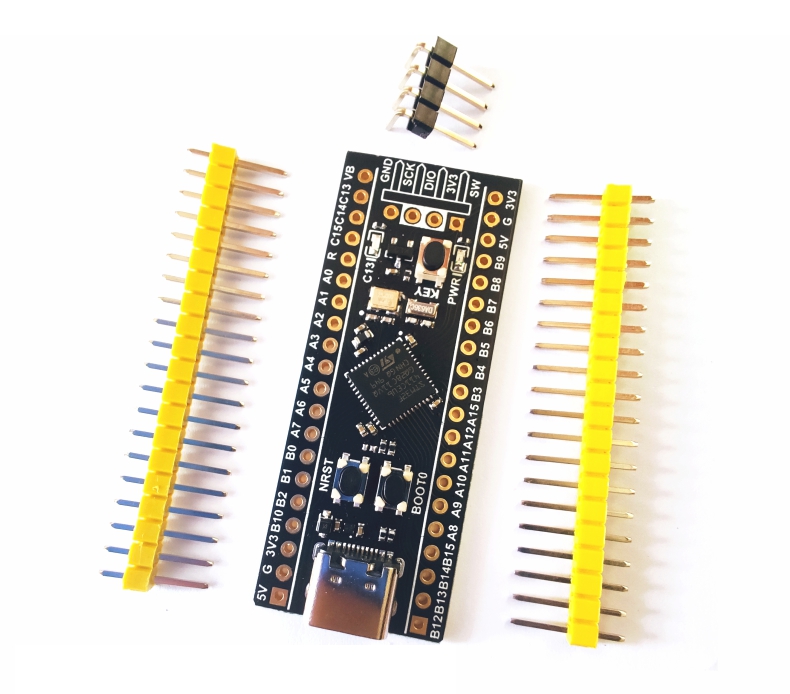

- Accessories: 20Pin 2.54mm pin header x 2; 4Pin 2.54mm pin header x 1
- The core board is packed in an electrostatic bag with a self-sealing seal
- The core board and header pins are packaged separately to reduce bumps
- For Altium Designer core board package is provided. See documentation/HDK

Package Included:
- 1 x Set of Core Board
