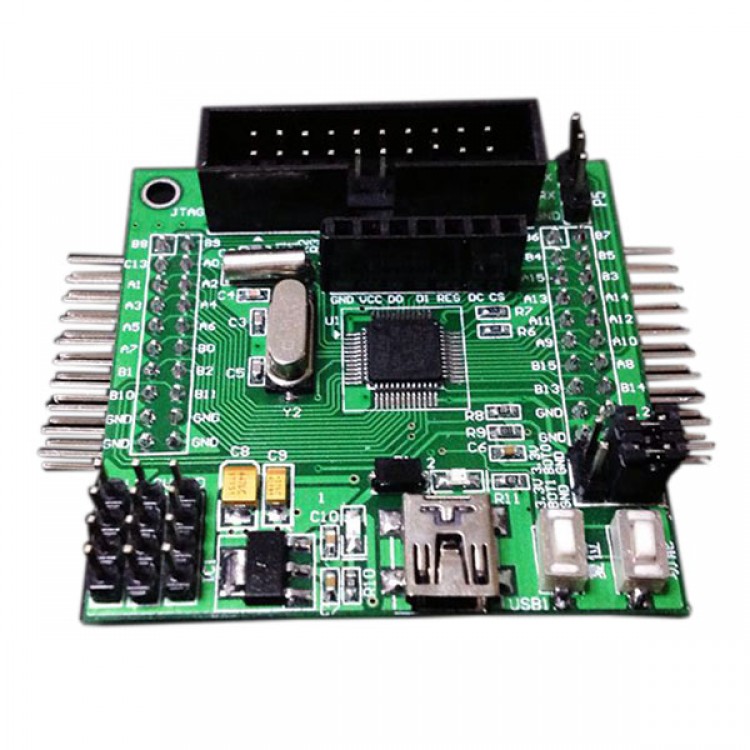

STM32F103C8T6 Develop Board ARM Learning Board Singlechip Core Board With STM32 Program
Features:
- IPCS STM32F103C8 mainchip, welded on the mainboard
- 8M crystal oscillator
- LM117-3.3V stabilization chip, max providing 800mA current
- 1 Channel mini USB interface, supply power for system version, USB communication function is reserved
- Reset press button
- One group of function swiching jumping cable pin
- Standard JTAG download port, support JLink, STLink
- 3.3V power supply expansion pin 3x2
- Power supply indicator light 1PCS
- Function indicator light for IO port basic function
- Serial port download interface is reserved
- Size: 50*50mm
- 1PCS 3.0mm positioning hole
- V1.2 version is newly added 32.768K clock crystal oscillator
- 20K RAM, 64K ROM , TQFP48 sealing
