RC Controller STM32 Board w/ Batteries Charger Wireless Controller For PS2 97MM Mecanum Wheel Car

RC Controller STM32 Board w/ Batteries Charger Wireless Controller For PS2 97MM Mecanum Wheel Car

Package Included:
- 1 x STM32 Master Control Board
- 2 x 18650 Batteries (7.4V, 1400mAh)
- 1 x Battery Charger
- 1 x Set of Wireless Controller For PS2

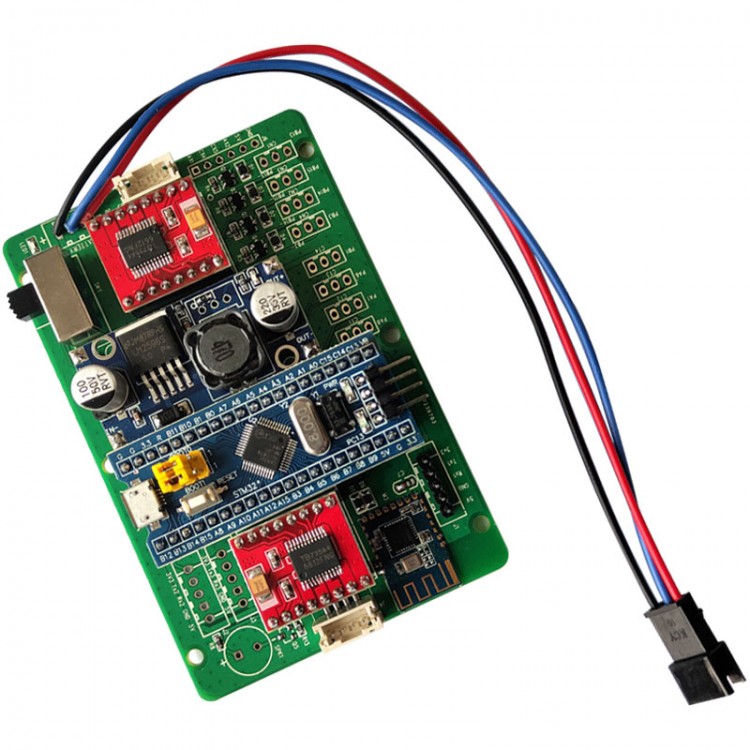

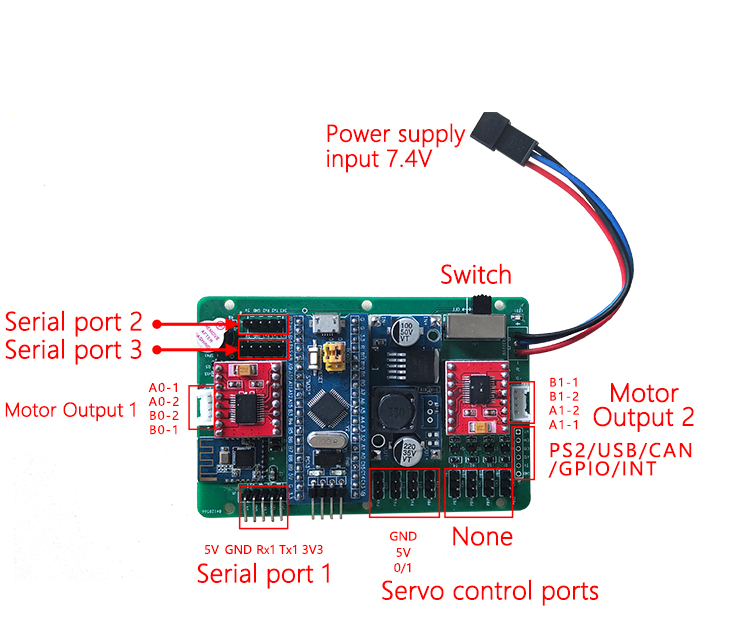

Master Control Board:
Download Related Materials + Learning Materials Video:
- Link: https://pan.baidu.com/s/1jMJGSrvcXt6PJSYHQ_DTLA Password: aa7q

Features:
- Bluetooth connection
- APP control
- Can develop servo
- Easy programming

Parameters:
- Size: 98mm*65mm
- Board model: STM32F103C8T6
- Input voltage: 7.4V

Attention:
- The hardware interface of the main control board has been reserved, and customers can use the APP provided by us to control (the APP file is in the above link), or DIY. It can be used with a Bluetooth controller and program is written by yourselves.

Batteries & Charger:
- Green light is on when plugged in, and the red light is on when batteries are connected
- After fully charged, the red light and green light are all on
- 7.4V battery length 68mm*width 37mm
- Three-wire battery: red wire for positive, black wire for negative, blue wire for ground wire

Wireless Controller For PS2:
- For PS2 2.4G dual vibrating controller, with good quality and good hand feeling
- Large and small double motors vibrate, equipped with 2.4G receiver
- Function keys: select, start, mode, small key square XX
- Wireless receiving distance 15m

How To Use The Controller?
- Plug the adapter board and the receiving board together
- According to the wiring instructions, connect the adapter board and the master control board with a cable for Dupont
- Turn on the power switch of the controller and it is docked to operate
- If there is no response, press ANALOG button and try the joystick. The function of this button is to switch modes
- Wireless controller and receiver included

Note:
- 2pcs AAA batteries (not included in the package) are needed for the controller.
