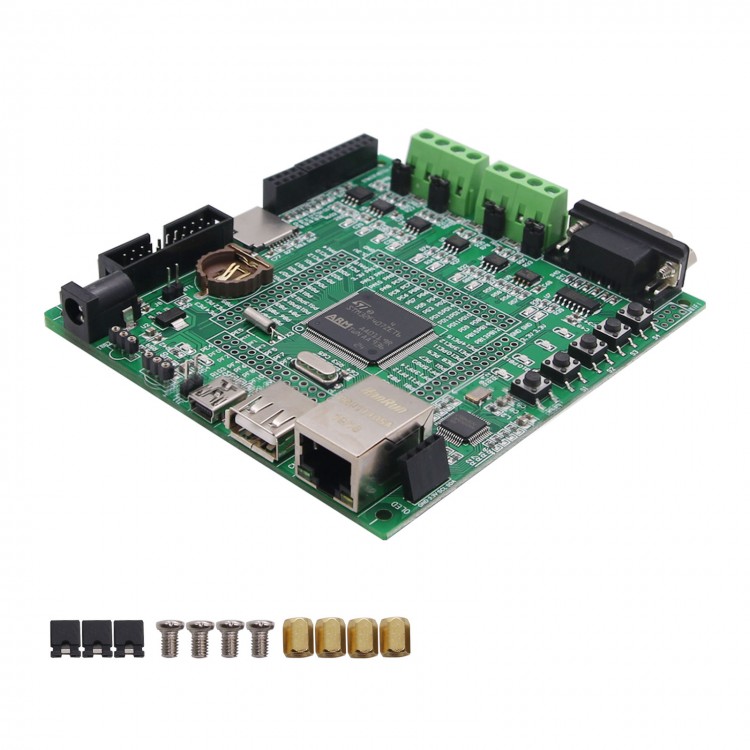

STM32F407 Development Board (Enhanced Version)/Ethernet/CAN/485/RFID
Features:
- Main Control Chip: STM32F407ZET6 (RAM: 192KB; flash: 512KB, clocked at: 168MHZ).
- External Expansion EEPROM: 24C02.
- External Expansion FLASH: SST25F016B (2M bytes).
- 2-Way CAN.
- 1-Way RS232.
- 2-Way RS485.
- 1 Ethernet port _DP83848 (10/100M adaptive, with transformer).
- USB master / slave interface.
- 4 LED lights and 4 user buttons.
- 2.4G wireless module (NRF24L01) interface, the best transmission distance of the open space is 240 meters.
- Camera OV2640 interface (For video surveillance).
- RC522 / RF card interface (for a variety of IC card readers).
- Mini SD card interface.
- Standard 20-pin JTAG interface.
- All IO have elicitation.
- Development board power supply mode: via 5V power adapter or USB cable.
Package Included:
- 1 x STM32F407 Development Board

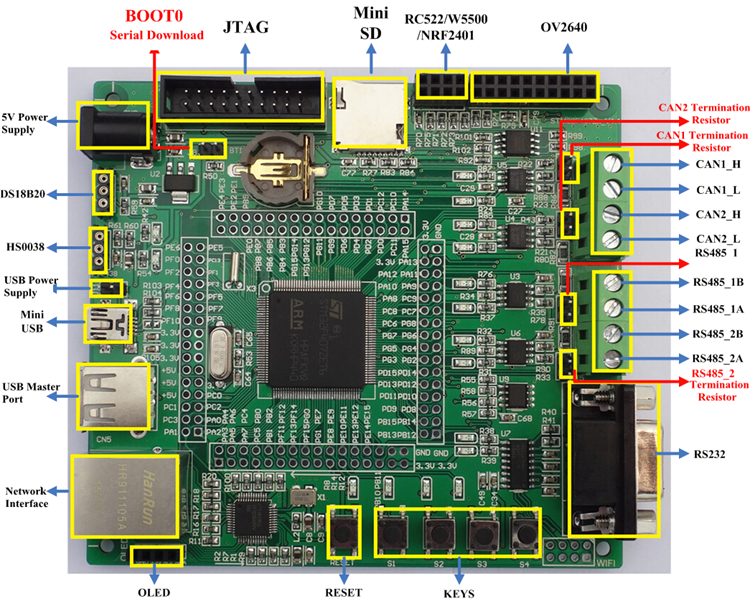

Hardware Wiring:
