SW-0001A 4CH Truck DVR Truck Camera System Mobile DVR Supports Night Vision and Reversing Image
Features:
- 720P DVR for large trucks
- Helps you to monitor trucks anytime, anywhere
- H.264 compression format
- Mobile phone remote monitor
- 1/4 screen
- Supports video playback
- Supports SD card storage
- 360° all-round monitoring: The front, rear, left and right cameras can record at the same time, which is convenient for 360-degree monitoring of the truck. The all-round video provides the driver with more peace of mind
- 24-hour surveillance
- Infrared monitoring
- High-end original HiSilicon 3520 chip provides more stable and durable performance
- Loop recording and automatic overwriting: When it detects that your memory card is running out of storage space, the system will intelligently delete the early unlocked footage. No manual operation is required, and loop recording is supported
- The 4CH camera can record at the same time and the picture quality is smooth
- Parallel preview and return visit of different channels under multi-view splitting are supported. 7-inch full-view HD quality, clear image and simple operation
- 3G/4G remote real-time monitoring: Insert a 3G/4G SIM card and download the client. It supports multi-device terminal viewing, real-time sharing and downloading. It is convenient for users to watch live videos. Supports for iPhone, Android and Windows
Specifications:
System:
- Operating system: Embedded OS for Linux
- System language: Chinese, English, others (customizable)
- Video compression format: H.264 compression mode
- OSD: character overlay function. Information image overlays such as time and date, vehicle ID, etc. are supported
- GUI: Graphical OSD interface. The system parameters can be set by remote control operation through the external display
Video & Video Recording System:
- Video inputs: 4CH video input, aviation connector, 1.0Vp-p, 75Ω
- Video output: 1CH composite video output, aviation connector, 1.0Vp-p, 75Ω
- Preview function: Single-channel or multi-camera video stitching preview. Support manual/event-triggered full-screen display function
- Video resolution: 4-channel one supports 720P/D1/HD1/CIF optional. And can support 4-channel 720P
- Video quality: 1 to 4 levels of video can be matched, 4 levels of excellence, 4 levels of low
- Video rate:
* PAL: 100 frames/s, CCIR625 line, 50 fields
* NTSC: 120 frames/s, CCIR525 line, 60 fields;
* CIF: 256Kbps ~ 1.5Mbps, 4 levels of image quality optional
* HD1: 600Kbps ~ 2.5Mbps, 4 levels of image quality optional
* D1: 800Kbps ~ 3Mbps, 4 levels of image quality optional
* 720P: 800Kbps ~ 4Mbps, 4 levels of image quality optional
- Recording mode: The default is automatic recording mode. Support ignition recording, manual recording, alarm recording, etc.
Audio:
- Audio input: 4 channels, aviation connector
- Audio output: 1 channel, aviation connector
- Compression format: G.726 compression format, 40KB/s
Others:
- Alarm input: 4CH alarm input, with alarm linkage function
- Alarm output: 1CH switch output
- Positioning: Support built-in GPS/BD module
- Sensor: Support G-SENSOR accelerometer
Video Storage:
- SD card: 1~2 large-capacity SD card can be used for recording. Up to 128G. Support loop recording and data automatic overwriting
- Upgrade method: SD card upgrade is supported
- File format: H.264
- File system: Unique pre-allocation professional file system
Video Playback:
- Video search: You can search for video files by recording time and recording method
- Playback: Support multi-channel synchronous playback, pause, fast forward and fast rewind. Support 2x, 4x, 8x and 16x fast forward or backward speed
Power Supply & Power Consumption:
- Power management: Adaptive wide power supply input, with protection such as overload, over-voltage, under-voltage, short-circuit, reverse-connection protection. Support timed power on/off and delay shutdown functions
- Input voltage: DC +10V to +36V
- Output voltage: +12V at 2A
- Power consumption: < 5W in normal working state
Working Environment:
- Temperature: -20°C to +70°C
- Humidity: 20% to 80%
Security Management:
- Password access: User password and administrator password are managed at two levels
Main Unit Size:
- Size: 175 x 144 x 44mm/6.9 x 5.7 x 1.7" (LxWxH)
Package Included:

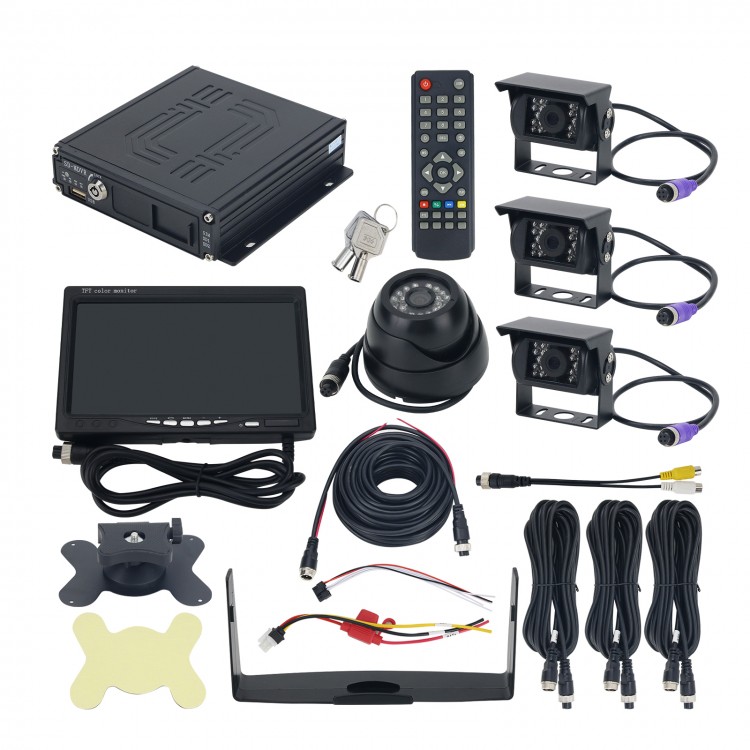

- 1 x Set of Truck DVR
Note:
- It is not for cars.
- SD card is not included in the package.
