Switching Power Supply 13.8V 30A For Car Shortwave Radios DC Communications PS30SWV
Features:
- Designed for Shortwave Communications: A new exterior design and internal circuit structure improve heat dissipation efficiency and anti-interference ability.
- Adjustable Output Voltage: The voltage can be controlled to 13.8V fixed output, or adjustable output at 9-15V. Maximum withstand current up to 30A. Provide reliable power supply guarantee for car radios and shortwave radios.
- LCD Digital Display: With backlight, it clearly shows you voltage and current. You can view working state easily.
- Multiple Voltage Output Channels: The front and rear panel provides 3A and 30A outputs respectively. With 10A cigar lighter socket, it fits more communications devices. The dual-purpose terminal socket can connect to banana plug for convenient and practical use.
- Temperature Control Fan: Large fan and heat dissipation par create safe and stable working state for power supply internal components. It enables long time working for high-power radios.
- Quality Guarantee: It is made from premium materials. Internal circuit is designed with over-current and short-circuit protections. Unique knob is used to remove noises that might occur in communications system, creating a lasting and safe working environment.

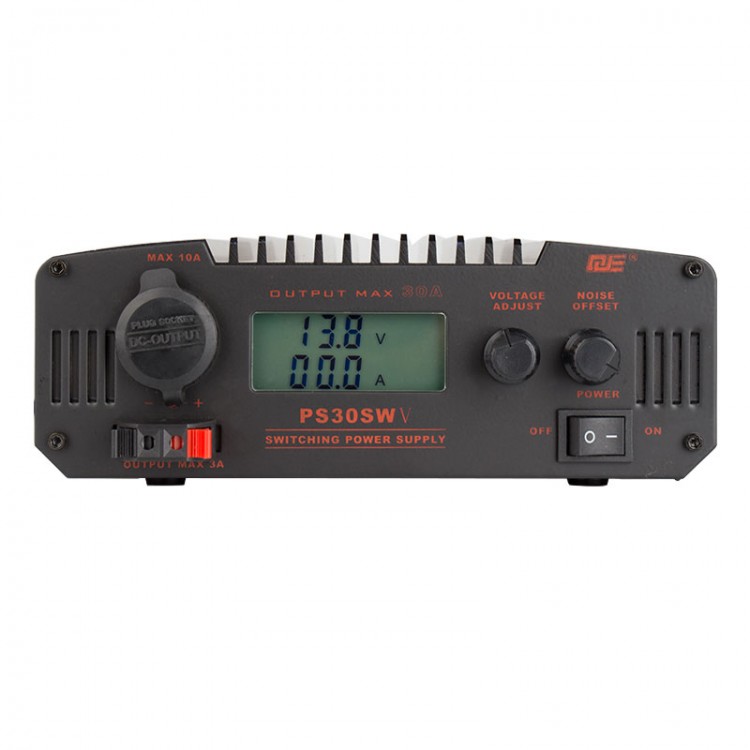

Front Panel Introduction:
- MAX 10A: 10A cigar lighter output
- With screen to display voltage and current
- VOLTAGE ADJUST: Voltage adjustment knob
- NOISE OFFSET: Noise elimination knob
- OUTPUT MAX 3A: 3A small current output port
- POWER ON/OFF: Power switch
Rear Panel Introduction:
- With 5A fuse
- With heat dissipation design
- Temperature control fan
- VOLTAGE 13.8V ADJUST: To control output voltage
- OUT 13.8V MAX 30A: 30A high current output port
Technical Parameters:
- Input Voltage: 230V AC
- Output Voltage: 9-15V DC adjustable
- Accuracy of Output Voltage: <2%
- Output Current: 25A (continuous), 30A(peak)
- Protections: Short-circuit protection, over-current, and over-temperature protections
- Ripple & Noise: ≤100mVp-p
- Weight: 2.3kg
Package Included:
- 1 x Switching Power Supply
- 1 x Instructions
- 1 x Power Cord
