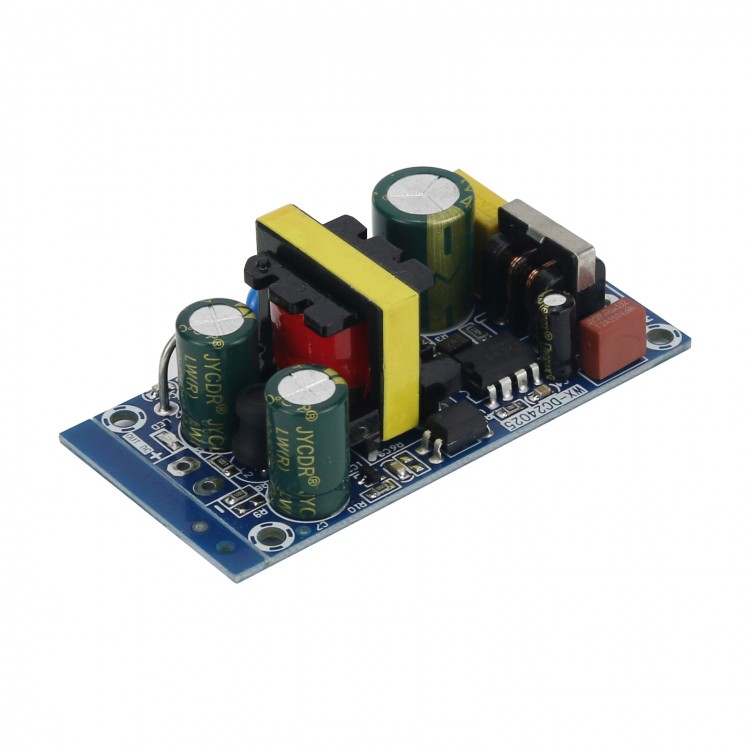

Switching Power Supply Module Board AC100V-265V to 12V2A 24W AC-DC Isolation Power Supply Module
Specifications:
- Model No.: WX-DC24025
- Power Supply Condition: Brand New
- Protections: Over-load, short-circuit, and over-temperature protections
- Voltage Input: AC 100V-265V
- Frequency Input: 50Hz-60Hz
- Output Voltage: DC12V

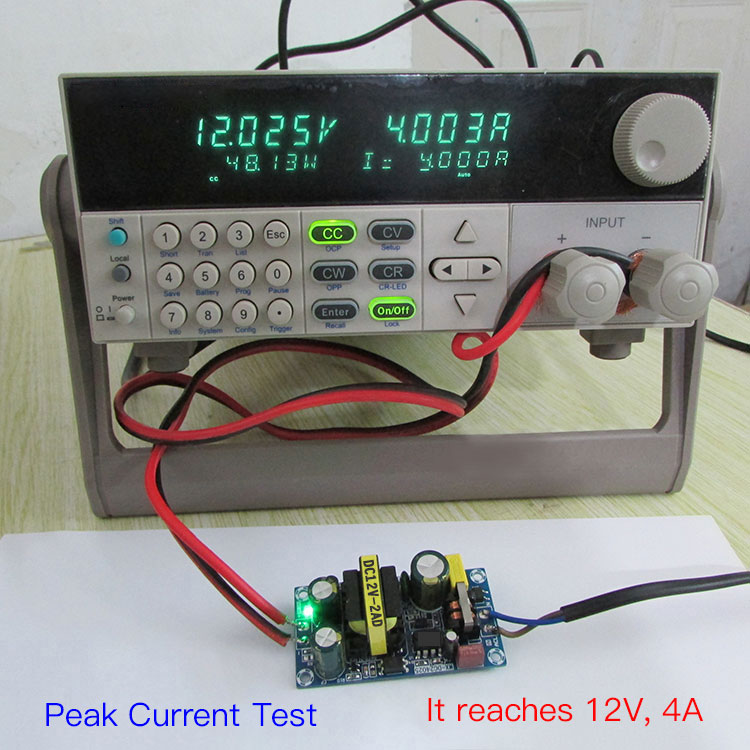

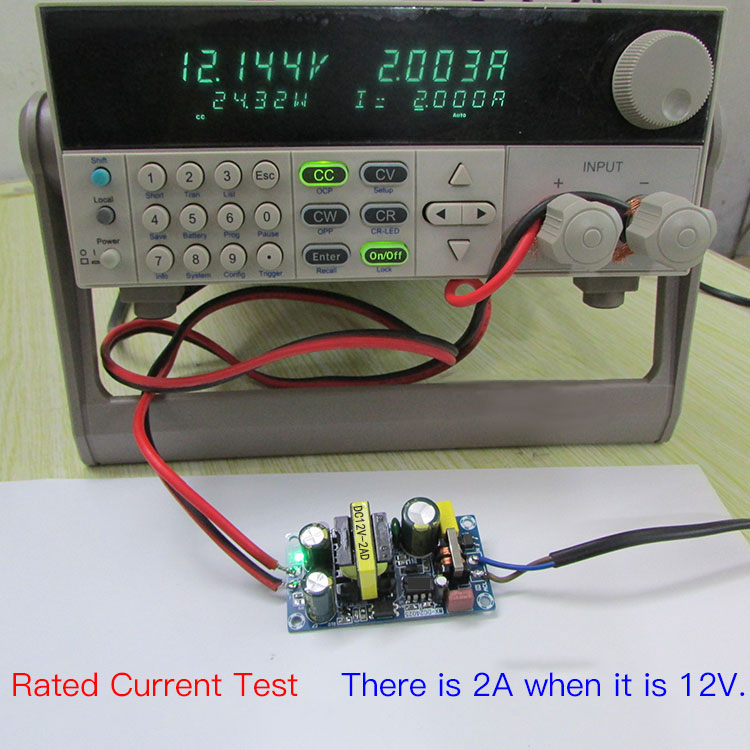

- Output Current: Rated 2A/Peak 4A protection
- Output Power: 24W

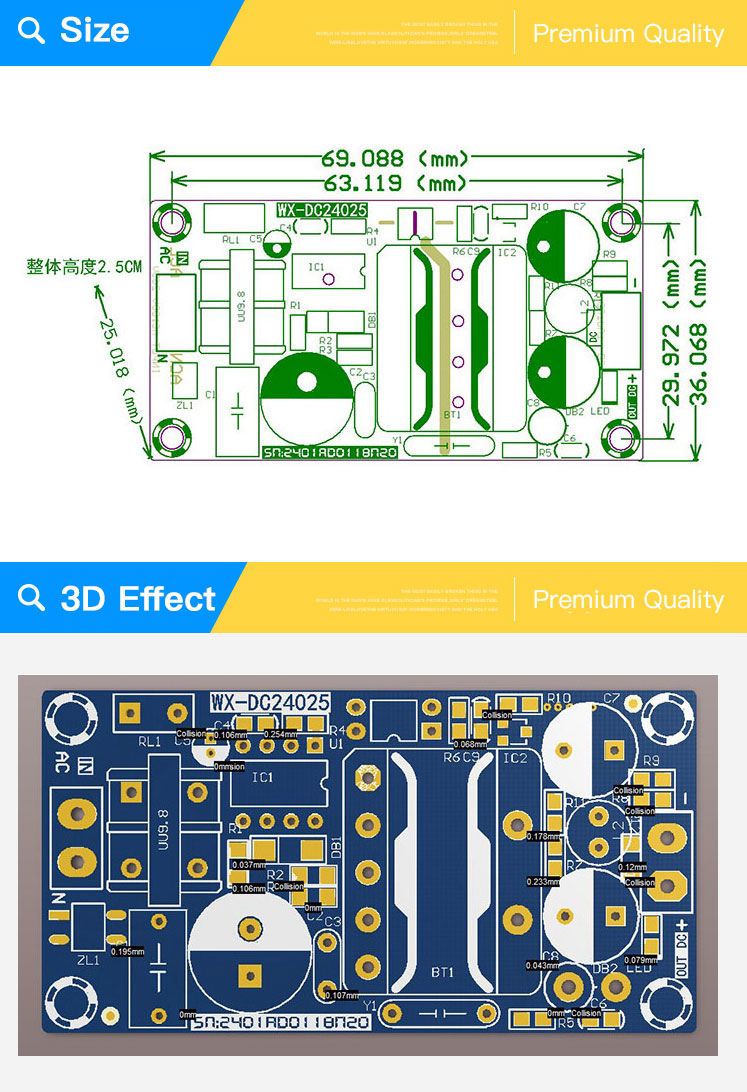

- Overall Size: 6.9 x 3.6 x 2.5cm (LxWxH)
Feature:
- Easy installation. 5.08 terminals or pin headers can be soldered to input and output ends.
- Four fixing holes can be fixed via screws to prevent moving or vibration. The diameter of the fixing holes is 3mm.
- Universal input voltage AC100V-265V.
- Designed with high density and high efficiency. Compact size makes it easy to be installed. Features lower output ripple.
- Input and output are highly isolated.
- With over-load, short-circuit, and over-temperature protections.
Package Included:
- 1 x Switching Power Supply Module
How to choose and use power supply module?
- The selected power supply should be left with a 20% margin for a load. For example, if your load power is only 80W, then you must choose power supply at least 100W or more.
- Please use the power supply within the rated power. Peak current is the over-load capacity of power supply module. Once it is over the peak current, the power supply will cut off voltage output to provide protection.
- When selecting a power supply for electric motor, please calculate power supply's power according to the starting current of your motor. The starting current of a general motor is 3-5 times the rated current of the motor, which is usually calculated as 3 times. If a 10W motor has a starting power of 30W-50W, then a power supply module with a power of over 30W should be selected when selecting a power supply.
