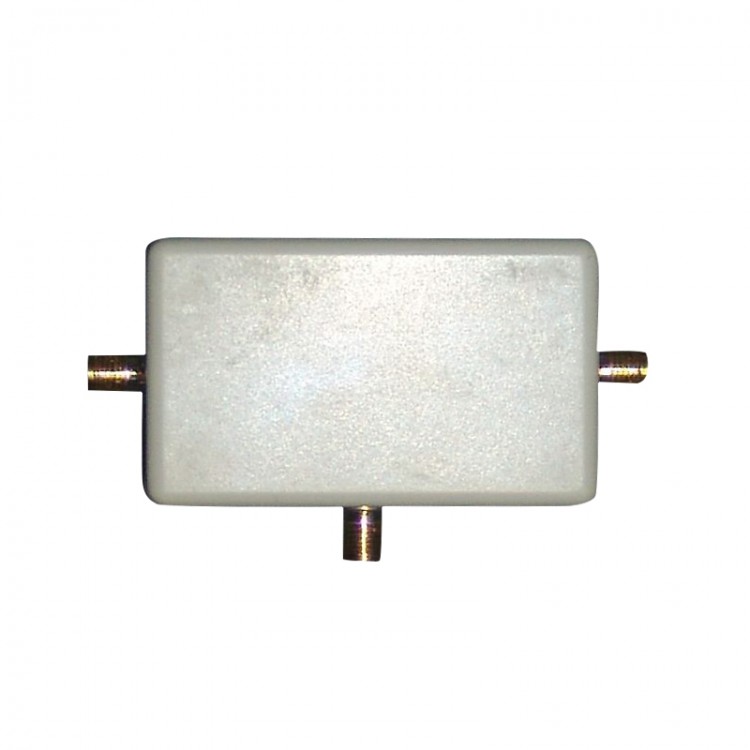

SWR Bridge 1M-500M Wave Bridge Wave Ratio Bridge

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.49
  • Price in reward points: 185 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.12 $17.75 $17.20 $16.46 Contact US
Quantity:

SWR Bridge 1M-500M Wave Bridge Wave Ratio Bridge


Description:

The bridge is a measure of the reflection coefficient of the sensor for measuring RF network, the reflected signal that is output from the amplitude phase information as well as the size, with a wide frequency range, high directivity characteristics.

The bridge is a simple application can be combined with the RF spectrum analyzer or scanner with tracking source, capable of measuring return loss and reflection of the entire frequency band of the device; such as combining vector voltmeter or vector voltage measurement device can accurately measure the signal source added vector impedance circuit, complete RF matching circuit testing and debugging.

Widely used measure commissioning, RF circuits, and radio, television and communication equipment and other measurement and debugging in antenna.


Specifications:

- Frequency range : 1MHz ~ 500MHz

- Characteristic impedance : 50Ω

- Directional : ≥30dB

- Maximum in power : +13DBM


Package Included:

1 x SWR Bridge
