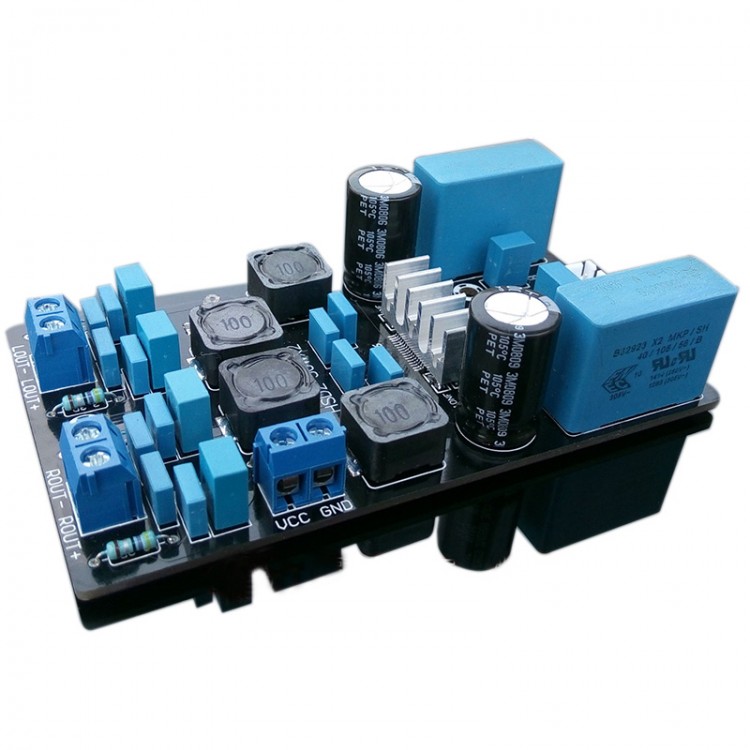

TPA3116D2 TPA3116 Class D 50Wx2 Official Version Finished Stereo Digital Power Amplifier Board

TPA3116D2 TPA3116 Class D 50Wx2 Official Version Finished Stereo Digital Power Amplifier Board

Description:
- All components of this product are original authentic, unpretentious, pure quality; using high-quality original parts, not just the quality and safety are guaranteed, long life, more importantly,that the actual performance can meet the design target Subject of strong guarantee
- The original TPA3116
- Electrolytic capacitors used in Taiwan brand signals the main loop, the main filter capacitor electrolytic capacitor using a for Nikon dedicated capacity 2 × 1000uF, full-wave bridge rectifier circuit to ensure strong support for a steady stream of power
- Coupling capacitor with the top imported from Germany Weimar capacitor 1uF
- Resistance selection rings metal resistance, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise ratio
- PCB using double-sided sheet 1.6mm thick, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. PCB-class quality
- The fully shielded high-current inductors 127, to ensure sound crisp and powerful
- Basic performance parameters:
- Main Chip: TPA3116
- Operating Voltage: DC8~24V
- Operating Current: 4.5~7.5A
- Standby Current: 20~45mA
- Audio Signal Input: Low level -0.3~6.3V
- Output Power: (DC12V 4Ω 25w+25 w) (DC21V 4Ω 50w+50w)
- Operating Frequency: 20Hz to 20KHz
- Work Environment: - 40 to 85 centigrade
- Over current protection
- Over temperature protection
- PCB Size: 93*56*21mm/3.66*2.2*0.82"

Package includes:
- 1 x TPA3116 Amplifier Board
