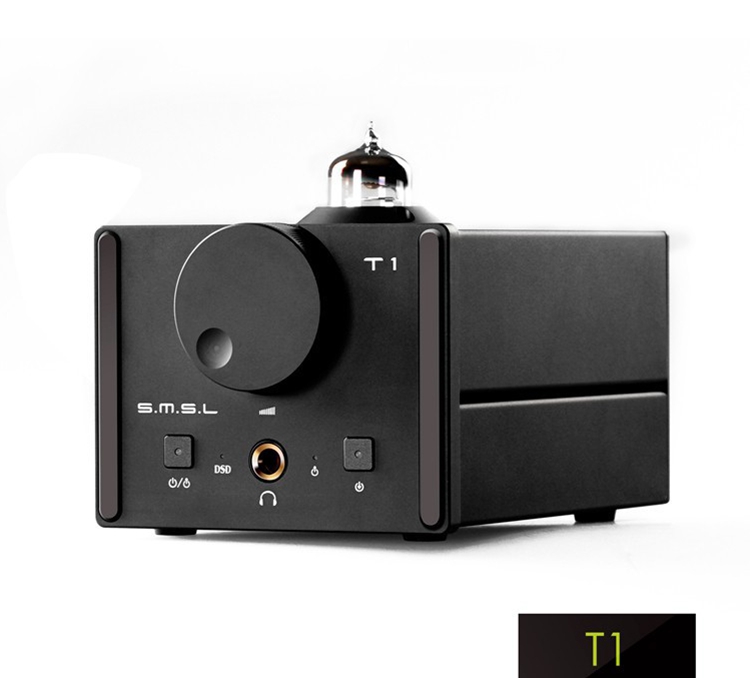

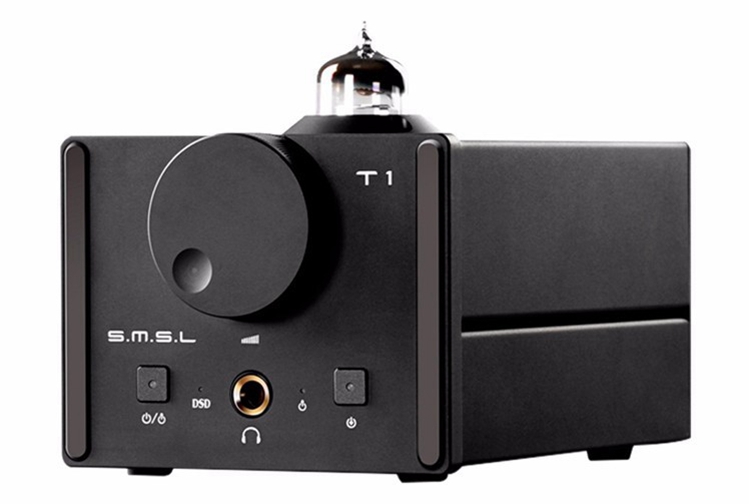

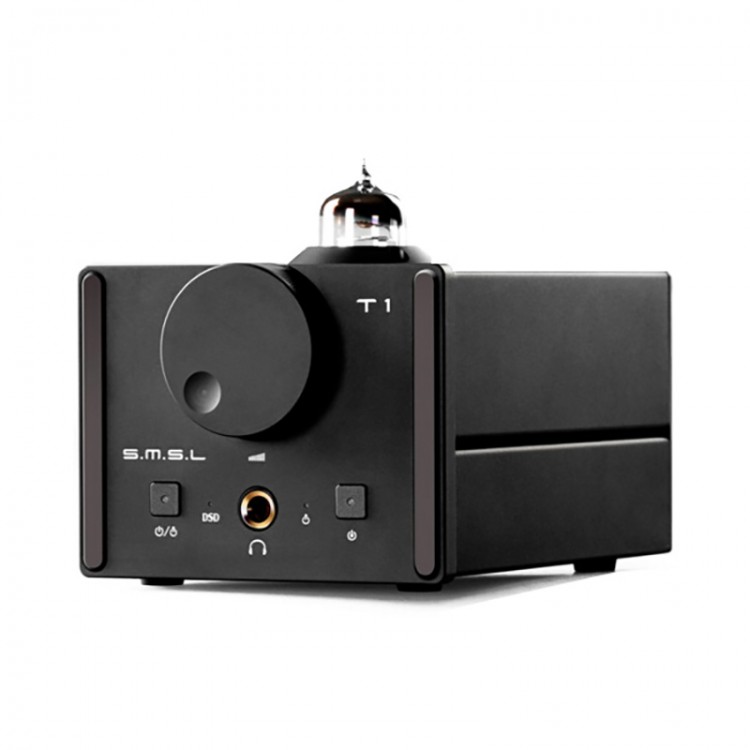

T1 DAC Tube Amplifier DSD512 384KHZ/32Bit AK4490EQ + CM6632A OPTIC/Coaxial/ XMOS/USB Tube Amp

T1 DAC Tube Amplifier DSD512 384KHZ/32Bit AK4490EQ + CM6632A OPTIC/Coaxial/ XMOS/USB Tube Amp

Features:

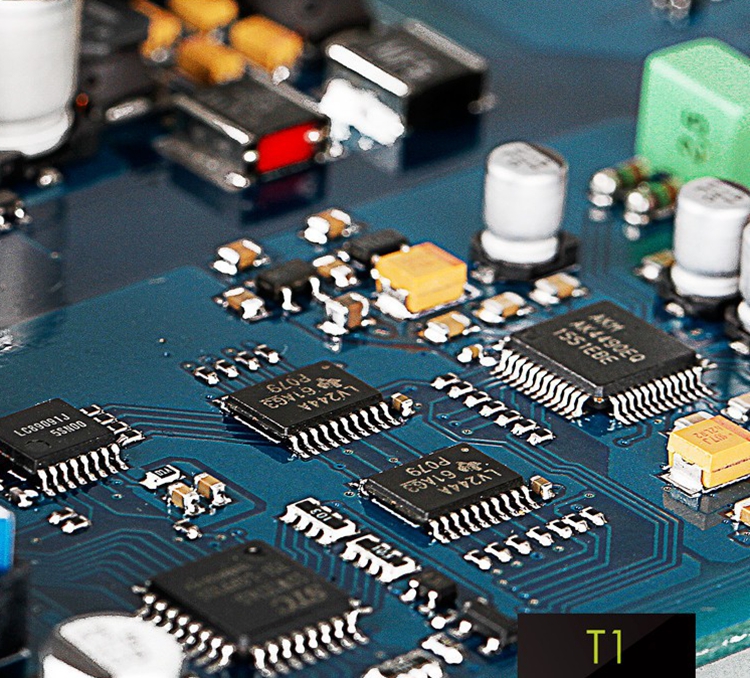

- Using advanced CM6632A + AKM AK4490 EQ program. USB sampling frequency PCB can be up to 384 kHZ, DSD512.

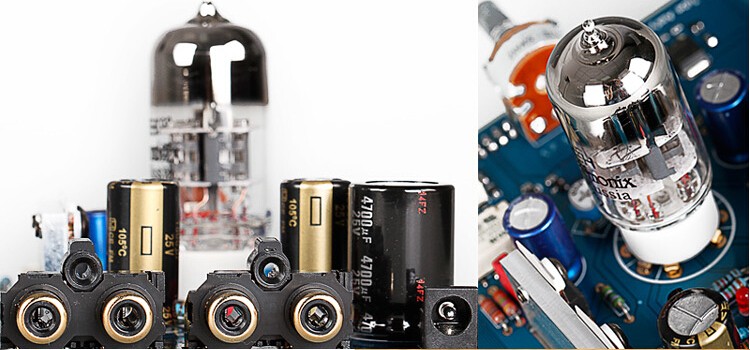

- To effecting decoding part of heated vacuum tube. All aluminum case adopts isolated design that reduces temperature drift and interference.
- We design T1 with most update DAC and classic value in class one circuit. It sounds smooth like LP and you hear more details.
- Humanized program-control and built-in answers to avoid protection from impulsive noise when on / off. That also protects hearing and device.

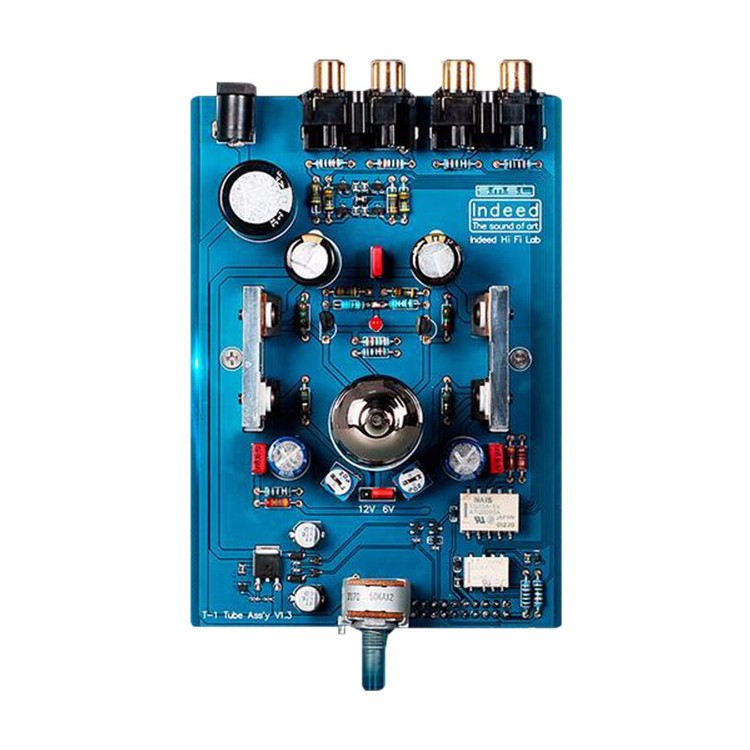

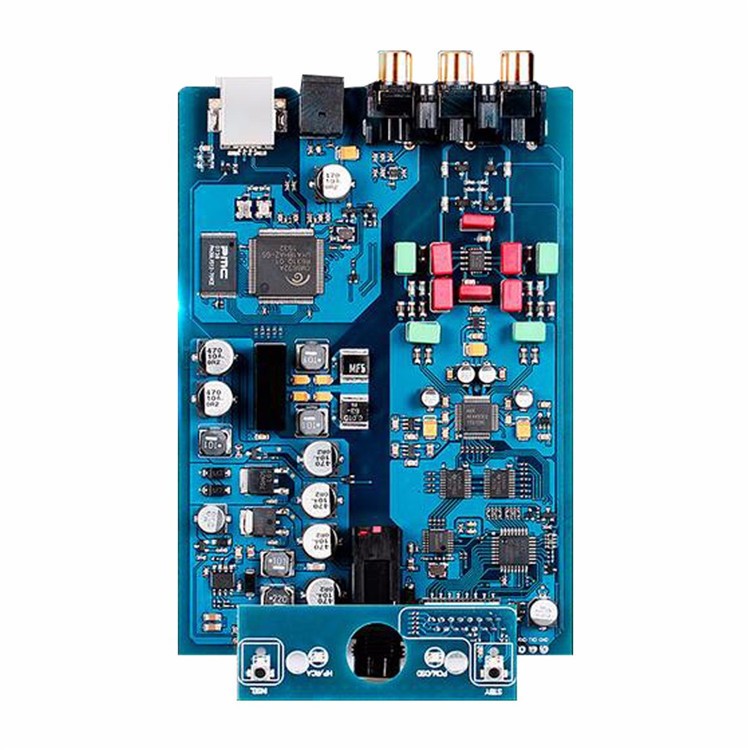

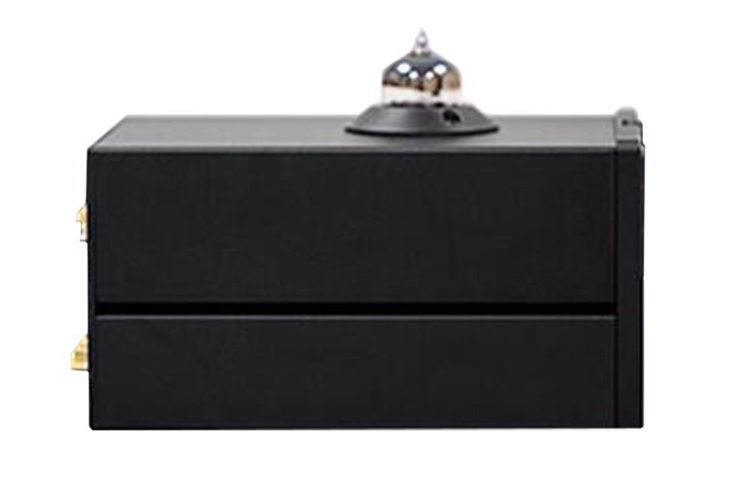

- Dual case design to separate digital PCB and analog tube amplifier, it works as an independent device to reduce noise.
- T1 connect active loudspeaker directly with preamplifier function.

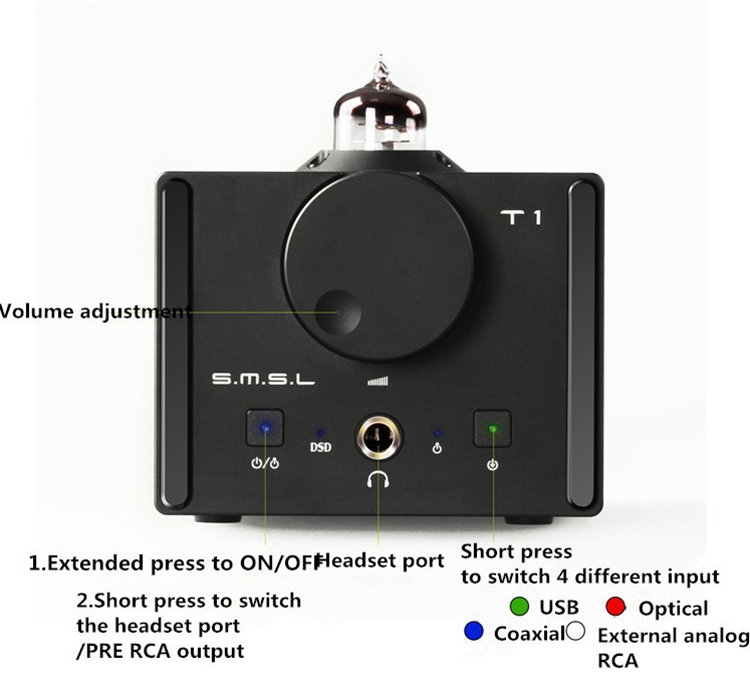

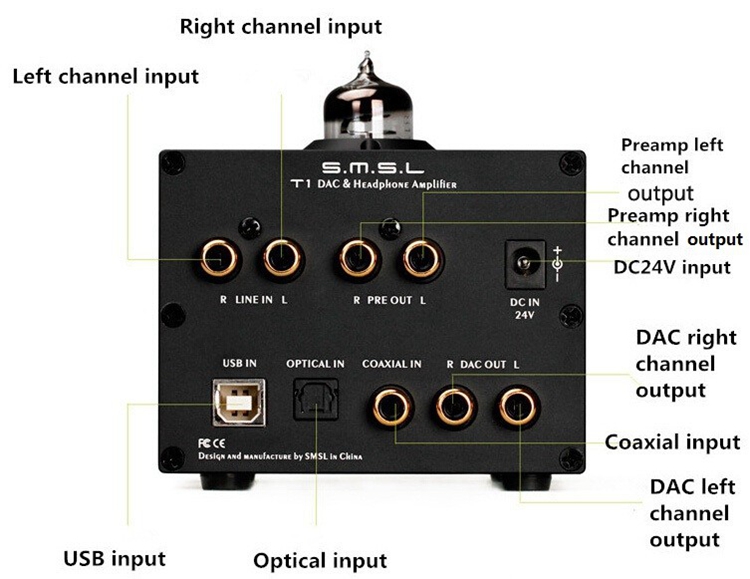

- Multifunction I / O ports fit for optical / coaxial / USB / RCA analog 6.3mm jack.

Specifications:
- Input: USB /Optical/Coaxial/Analog input
- THD + N DAC Out: 0.001%
- Headphone Amplifier: 0.017%
- Dynamic Range: 118dB
- SNR DAC out: 107 dB
- SNR Amp: 94dB
- USB Transmission: asynchronous transmission
- USB Compatibility: Windows 7/8 / 8.1 / 10; Mac OSX10.6 above
- Bit Depth:
  USB: 16-32 bit 1bit
  Optical, Coaxial: 16-24 bit
- Sampling Frequency:
  USB PCM: 44.1-384 kHz
  USB DSD: 2.8224 / 5.6448 / 11.2896 / 22.5792 MHz
  Optical, Coaxial: 44.1-192 kHz
- Output Power of Amp:
  32Ω59mW @ THD = 0.1%
  64Ω64mW @ THD = 0.1%
  150Ω58mW @ THD = 0.1%
  300Ω42mW @ THD = 0.1%
- DAC Output Level: 2Vrms
- Power Consumption: 11.6 W
- Standby Power: 1.4 W

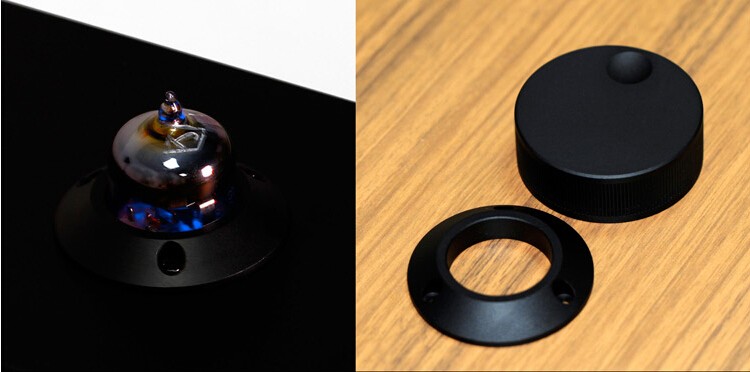

- Tube: 6N11

Package Included:
- 1 x T1 DAC Tube Headphone Amplifier
