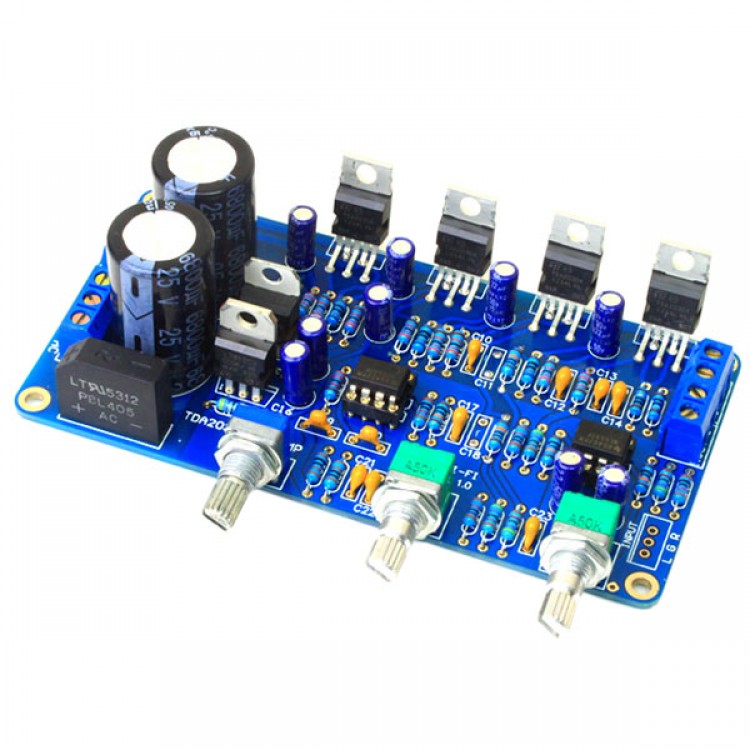

Taiwan UTC TDA2030L 2.1 Amplifier Assembled Board Bass Low Pitch PC Amp
Description:
- The circuit uses four TDA2030L integration module, including two left right channels, another two works for super bass BTL circuit
- 5 loop 1% metal film resistor, large filter capacitor is two domestic 6800U/ 25V
- Reasonable circuit, quite suitable for DIY
- Left to right: super low pitch volume, high pitch adjustment, total volume
- Working voltage: AC dual 12V
- Max output power: left right channel 18Wx 2 super bass 36Wx 1
- Output impedence: 4-8 ohm
- PCB size: 60*117mm
Note:
- This board should be used with cooling fin
