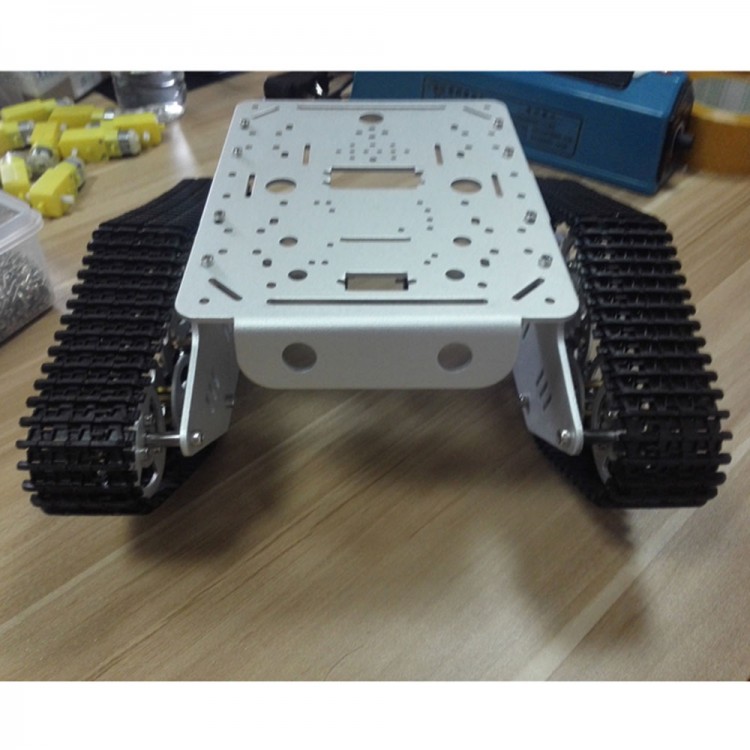

Tank Chassis Track Caterpillar Car Chassis Plastic Tracked Crawler Robotic Toy for Robot Arduino DIY T300

Availability: In stock, usually dispatched in 1 business day

  • Price:$91.10
  • Price in reward points: 911 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.28 $87.46 $84.72 $81.08 Contact US
Quantity:

Tank Chassis Track Caterpillar Car Chassis Plastic Tracked Crawler Robotic Toy for Robot Arduino DIY T300

Features:

- Noveland elegant appearance;
- Aluminum alloy;
- Solid structure;
- Powerful force;
- Quickly,stability, flexibility;
- Strong power;

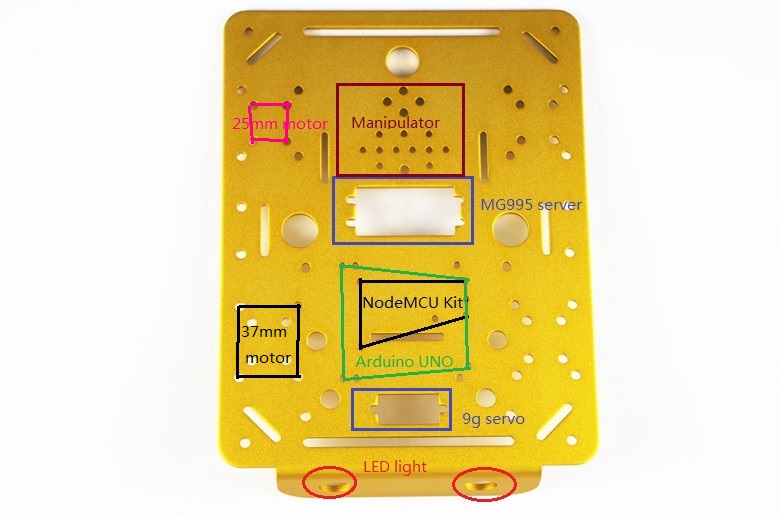

Set aside a variety of installation interface:
- Inlcude installation port for Arduino UNO R3
- Port for NodeMCU WiFi development board
- Port for 9g servo
- Port for servo (like MG996R, MG995)
- Port for machinacal arm
- Preset two ports for light driving at night

Specifications:
- Name: T300 Intelligent track car/Caterpillar /Tracked Crawler/tank chassis
- Material: Aluminum alloy
- Surface oxidation: Yes
- Color: Silver
- Track: Plastic
- Product size: about 290*270*100mm (length * width * height)
- Weight: 1.6kg
- Working load: 5kg

Motor Parameters:
- Name:25mm DC brushless motor with hall sensor encoder
- Output speed: 150±10%rpm
- No-load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated current: 1200mA (Max)
- Noise :56dB
- Working voltage: 9V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size: M3.0
- Dia. Of Shaft phi 4mm, D3.5
- Encoder: 2pulses/circle

Package List:
- Tank Chassis:1 pcs
- Driving wheels: 2 pcs
- Bearing wheels: 10 pcs
- Track:2 pcs (can be changed the length)
- DC motor with hall sensor: 2 pcs
- Screws
