Tank Chassis Caterpillar Crawler Plastic Track Car Vehicle Chassis for Robot Model DIY Unassembled T200

Availability: In stock, usually dispatched in 1 business day

  • Price:$73.51
  • Price in reward points: 735 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.04 $70.57 $68.36 $65.42 Contact US
Quantity:

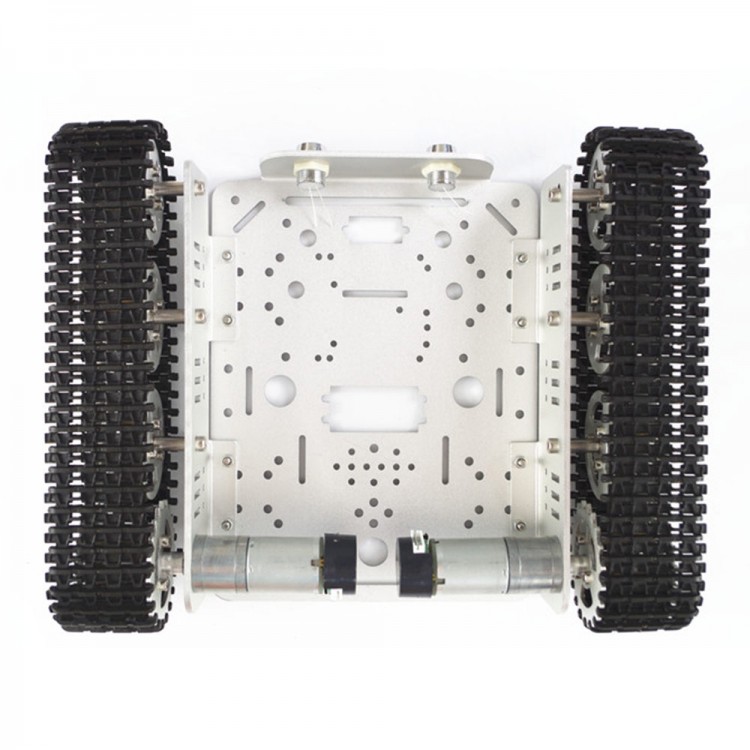

Tank Chassis Caterpillar Crawler Plastic Track Car Vehicle Chassis for Robot Model DIY Unassembled T200

Features:

- Noveland elegant appearance;
- Aluminum alloy;
- Solid structure;
- Powerful force;
- Quickly,stability, flexibility;
- Strong power;

Installation interface:
- Mounting hole for Arduino UNO R3
- Mounting hole for NodeMCU WiFi develolopment module
- 9g servo mount
- Mounting hole for servo like MG996R,MG995
- Mount for manipulator
- Two mounts for lights





Parameters:
- Name: T200 tank chassis/ track car/Caterpillar/ Crawler
- Car body:metal (Aluminum alloy)
- Wheel: metal(Aluminum alloy)
- Controller: No
- Not included battery
- Not assembled
- Material: aluminum alloy
- Surface oxidation: Yes
- Color: Silver
- Track: plastic (black)
- Size: 210*210*60mm (L * W * H)
- Weight: 1.2kg
- Work load: 7KG

Motor parameters:
- Name: 25mm DC brushless motor (with Holzer sensor and encoder)
- Output rate: 150 + 10%rpm
- Load current: 200mA (Max)
- Locked rotor current: 4500mA (max)
- Locked rotor torque: 9.5kgNaN
- Load speed: 100 + 10%rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load noise: 56dB
- Working voltage: 9V
- Shaft extension dimension: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Axial diameter: phi4mm, D3.5
- The encoder parameters: 2 pulses / ring

Package List:
- 1 x Tank Chassis
- 2 x Sideboard
- 2 x Driving wheel
- 6 x Bearing wheel
- 2 x Track
- 2 x DC motor (with Holzer sensor)
- Screws
