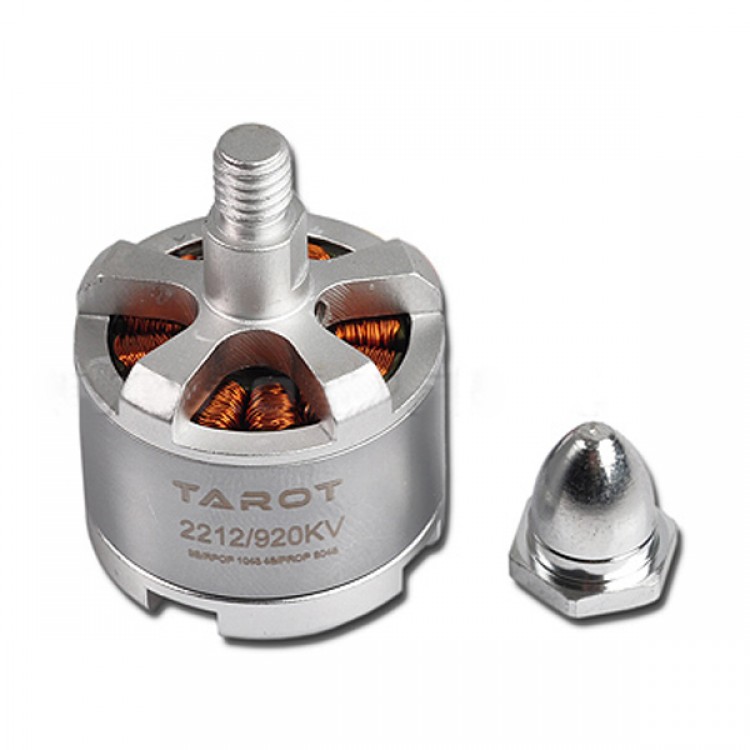

Tarot 2212/920KV Brushless Motor for Multi-copter/ Silver TL9013
Descriptions:
- Applicable to 2KG quad-copter, hex-copter, and other multi-copter.
- Bright colors which are easy to see in the air.
- Equipped with 18CM silica gel wire, easy to do wiring based on demands
- Specific for multi-rotors
- It has well-balanced in the factory
- 0.20mm ultra-thin high efficiency silicon steel and heat resistant magnet applied, ultra-thin silicon steel lowers the heat generation rate of motor and provide higher efficiency.
- The motor shaft is built to mount propeller directly, which has the best concentricity
- There are several mounting ports on the bottom of motor (see picture), which compatible with mainstreamed vehicles on market
Note: diameter of propeller mounting port is 8MM

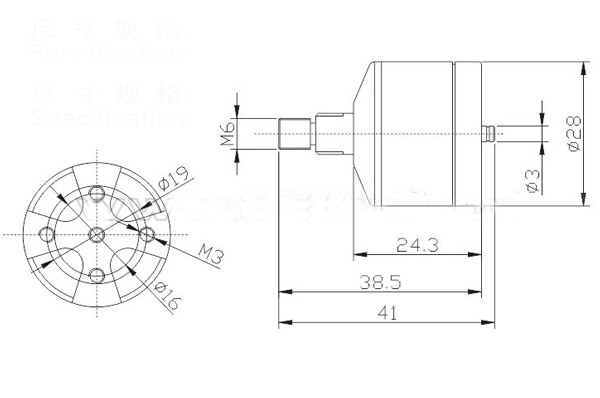

Specifications:
- Diameter of stator: 22.0mm
- Stator thickness: 19.0mm
- Slot number: 12
- Pole number: 14
- Motor wind: 14Turn Delta
- Wire: 3-Strand 0.23mm
- Rotating speed: 920RPM/Volt
- No-load current: 0.5Amps
- Outer diameter of motor: 28mm
- Motor shaft diameter: 30mm
- Length of motor: 38.5mm
- Motor shaft length: 30.6mm
- Motor weight: 55Grams
Package included:
- 1 xTarot 2212/920KV Brushless Motor
