Tarot 5.8G 32CH Receiver Dual Receiving 7" LCD HD Monitor for FPV Quadcopter Drone TL2967

Availability: In stock, usually dispatched in 1 business day

  • Price:$102.04
  • Price in reward points: 1020 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $100.00 $97.96 $94.90 $90.82 Contact US
Quantity:

Tarot 5.8G 32CH Receiver Dual Receiving 7" LCD HD Monitor for FPV Quadcopter Drone TL2967

Specifications:

- Power supply: DC11-26V
- Working environment temperature: -10 to 60 degrees celsius.
- Menu language: Chinese, English
- Wireless reception: 5.8G 32 channel
- Receiving sensitivity:  -85DBM
- Visual angle: 120 degrees /70 degrees (horizontal / vertical)
- Screen type: TFT LCD Screen/long life ,LED backlinht
- Resolution: 800 * 480
- Brightness: 400cd/m2
- Wide high ratio: 16:9 (can be set 4:3)
- Receiving frequency: 5645-5945MHZ
- Modulation type: FM/PLL
- Antenna interface: SMA 50
- Storage environment: -30-60 degrees Celsius
- Power consumption of the whole machine: <8W
- Signal system: automatic recognition of P system N
- Battery Specification: 186503.7 * 2
- Support: support DC11-26V

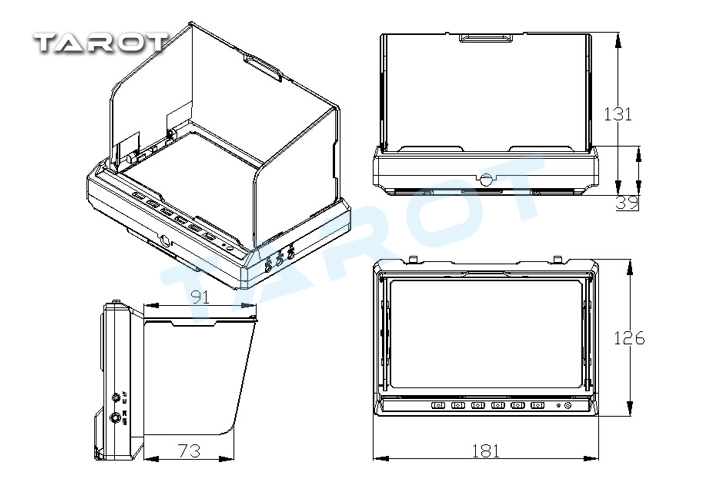

- Display size (181 x 129 x 39mm)
- Net weight: 510g

Function:
- Can automatically search the frequency point, select the strongest signal frequency ;
- Can be used as an ordinary screen, just give the video signal through the in AV interface , switch to the in AV mode ;
- At the same time to receive the dual band signal, the way through the receiving screen display, the other way through the corresponding out AV interface output to other displays;
- Can charge the lithium polymer batteries directly ;
- Stopwatch function;
- Screen lock function;
- Can be carried out the picture flip, suitable for different requirements of the installation .

Package list (Not include battery):
- 5.8G 32CH receiver 7 inch FPV HD display  x 1
- Power adapter x 1 (input: 100-240V AC, output: 12V 2A * DC)
- Standard 5.8G receiving antenna x 2
- Video input cable * 1, video output cable * 1
- DC IN  cable * 1
- User manual x 1
