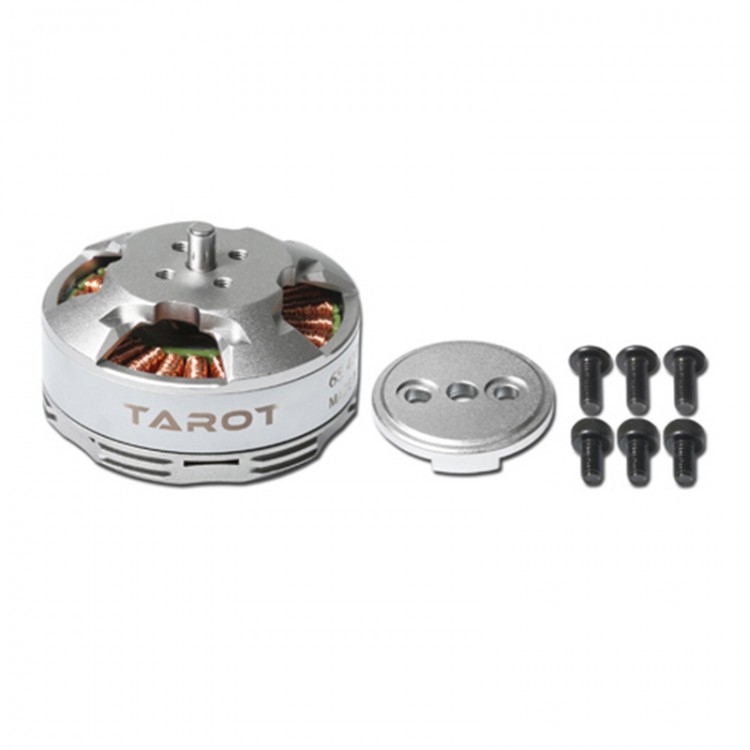

Tarot 6S 380KV 4008 Multi-rotor Disc Brushless Motor for Quadcoptor Multi-rotor
Description:
- 4108/380KV6S high efficiency multi-rotor disc brushless motor is specially designed for quad hexa multicopter, adopting high precision CNC processing method, flat shape smooth surface with excellent balance. Brand new high-efficient turbofan upper lid, providing strong heat radiation airflow, rotor is made of high magnetic material NdFeB.
- The stator adopts epoxy resin pressure strengthening protection of high strength, heat durable, 22P high magnetic external motor is debugged, resolvng the vibration problem
- Motor axle adopts high speed alloy steel.
- Motor has the advantages such as low friction torque, small power consumption, strong impact resistance, instant high-speed radial strong support.
Parameters:
- Motor external dia: 46mm
- Stator dia: 40.6mm
- Stator end thickness: 8mm
- Stator end number: 24 slots
- Wire diameter: 0.23mm
- Gear shaft installation dia: 4mm
- Motor height: 24mm
- Motor axis length: 32.5mm
- Per volt speed: 380 RPM / Volt
- Motor Weight: 93G
- Motor resistance: 135 mΩ
- Unload current: 0.5A
- Max thrust: 1620g
- 6S4108 brushless motor installation specification: 27.7 MM equilateral triangle
- Propeller installation specifications: main hole dia 4mm, side hole dia 3 mm, center distance of 12 mm
Specification:
- 6S4108/380KV brushless motor 93G X 1
- M3 X 6MM cup head screw x 3
- M3 X 8MM semi circle head screw x 2
- Metal multi-rotor installing plate 2.5G X 1
