Tarot TL3T31 3-Axis Gimbal w/ 640 Thermal Imaging Camera & 2MP Visible-Light Camera & Network Output

Tarot TL3T31 3-Axis Gimbal w/ 640 Thermal Imaging Camera & 2MP Visible-Light Camera & Network Output

Description:

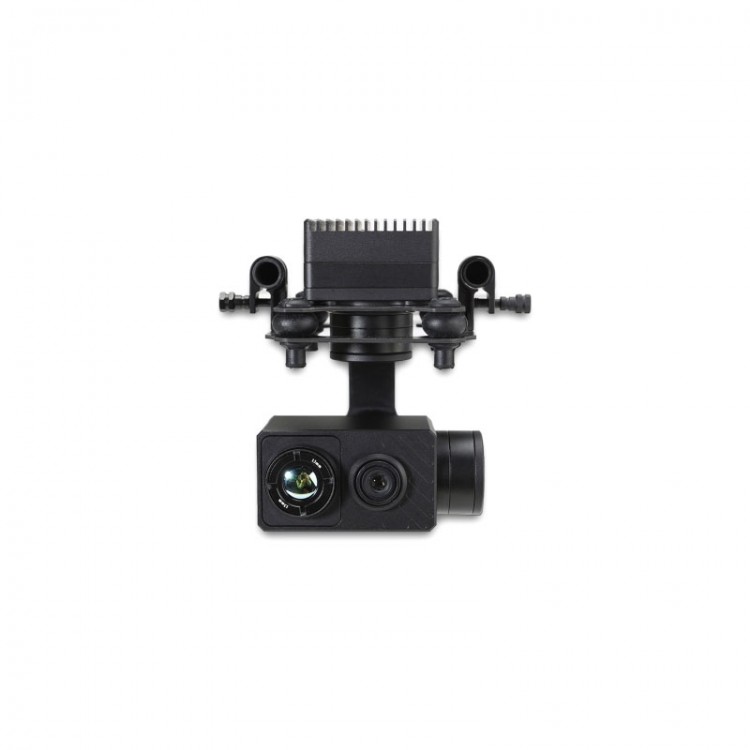

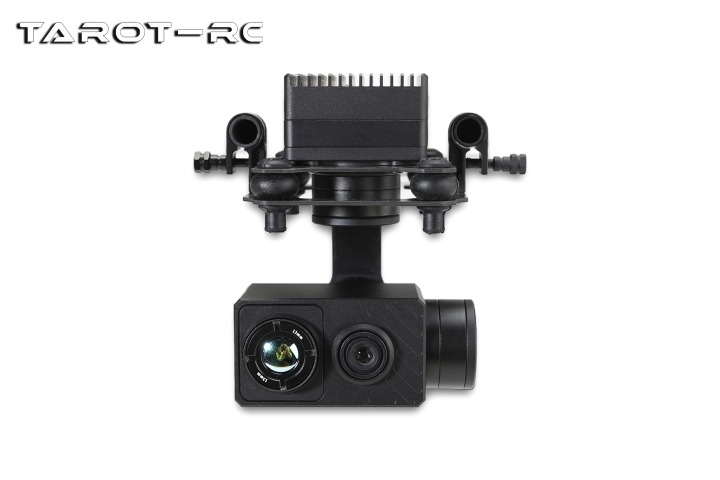

The Tarot TL3T31 is a lightweight, professional-grade 3-axis gimbal designed to meet the needs of industries such as power line inspection and firefighting. It features a built-in independent IMU for precise attitude control and integrates a dedicated servo drive module for gimbal operation. The system supports both follow mode and lock mode for flexible tracking and positioning.

Equipped with a professional-grade 640 thermal imaging camera and a 1080P visible-light camera, the TL3T31 is well-suited for a wide range of applications, including firefighting, forest police, public security surveillance, search and rescue, and environmental law enforcement.

Features:
* Supports wide voltage input: DC 13–60V
* Mechanical 3-axis stabilization with ±0.01° precision
* Lightweight and robust aluminum alloy construction with excellent heat dissipation
* Highly optimized vector control algorithm for servo motors
* True independent control of all three axes: yaw, pitch, and roll
* Supports both angle mode and rate mode for yaw and pitch axes

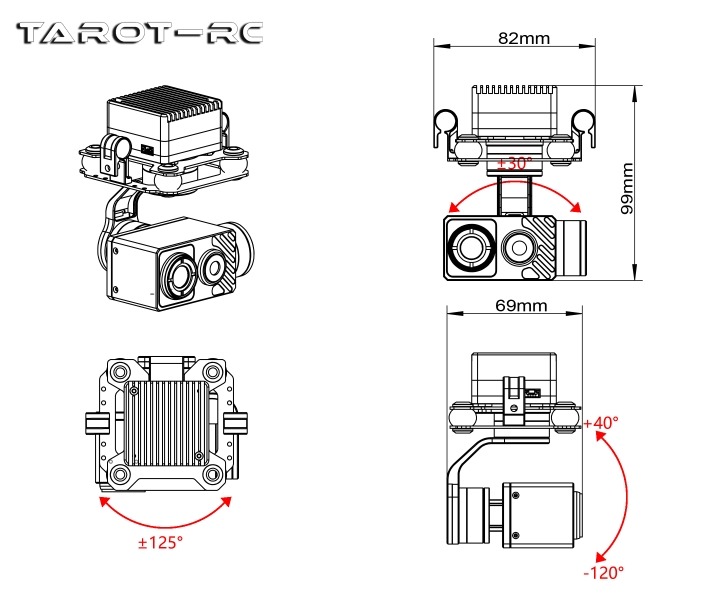

* Controllable yaw range: ±125°
* Controllable pitch range: -120° to +40°
* Controllable roll range: ±30°
* One-click 90° downward view and auto-center return
* Supports S.Bus control, four-channel PWM output control, and UART serial communication
* RTSP network video output supported
* Thermal camera resolution: 640 × 512; Visible-light camera resolution: 1920 × 1080

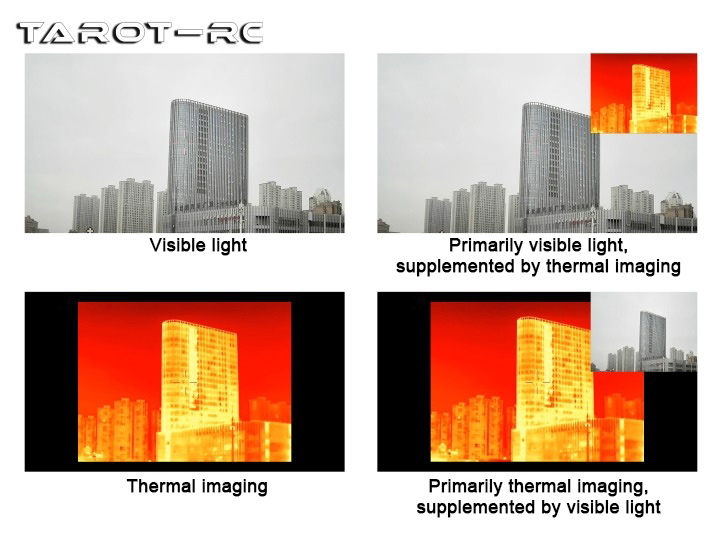

* Supports four picture-in-picture video display modes combining thermal and visible-light feeds

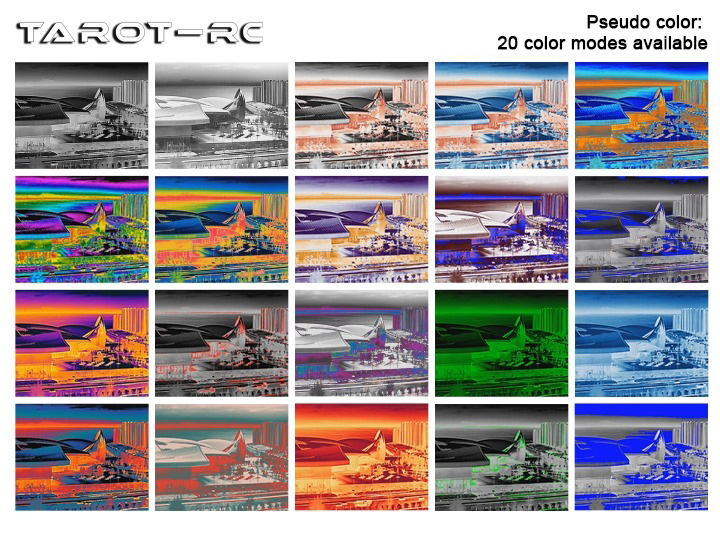

* 20 types of pseudo-color display modes available for thermal imaging
* Supports online download of photos and video files
* Supports both upright and inverted installation
* Ultra-lightweight design: only 225g

Packing List:
* 1 x TL3T31 Gimbal
* 1 x Wiring Kit

Packaging Details:
* Weight: 1kg
