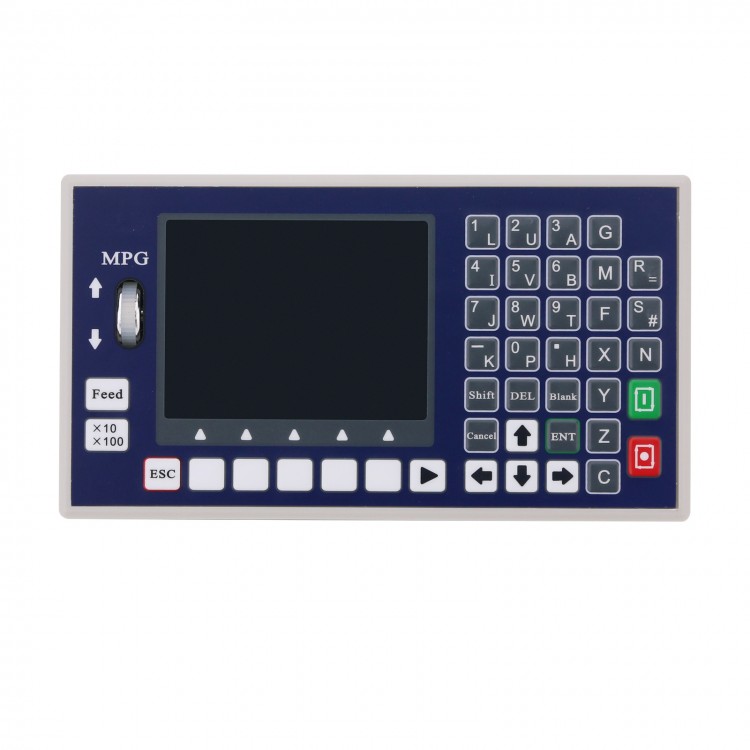

TC5530H 3 Axis CNC Controller System G Code Motion Controller w/ MPG For CNC Milling Machines

TC5530H 3 Axis CNC Controller System G Code Motion Controller w/ MPG For CNC Milling Machines

Product Introduction:
It is an upgrading version of TC55. It can control 1, 2, 3 or 4 feeding axis, 1 analog spindle. It is equipped with 16 input port and 8 output port, supporting importing G code files from USB disk and boot picture. Support saving the current coordinates after power off.

Technical Specifications:
- Minimum data unit 0.001 mm
- Maximum data size ± 99999.999mm
- Maximum Speed: 24m/min (pulse is 0.001mm)
- Maximum pulse output frequency 400KHz
- Axis: 1, 2, 3 or 4 (X, Y, Z, C). X, Y, Z axis can conduct linear interpolation, X, Y can do circular interpolation.
- Electric Gear: numerator :1-99999 denominator: 1-99999
- USB: Importing program and boot picture
- Isolated I/O port
- Maximum Program Line: 1000
- Maximum Program: 99
- RAM: 128M
- External Manual Operation: motor clockwise and counter-clockwise spinning, start, pause, alert and stop
- G code and M code
- One panel MPG
- 3.5-inch color LCD, pixel 320*240
- Analog Spindle Output: one 0-10v analog spindle
- Support both servo and stepper motor
- Support metric system, round, division, degree, inch, etc.
- Support USB connecting computer as power supply.

Package Included:
- 1 x CNC Motion Controller
- 1 x USB Cable
- 1 x Set of Screws & Nuts
