Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $39.77 | $38.96 | $37.74 | $36.12 | Contact US |

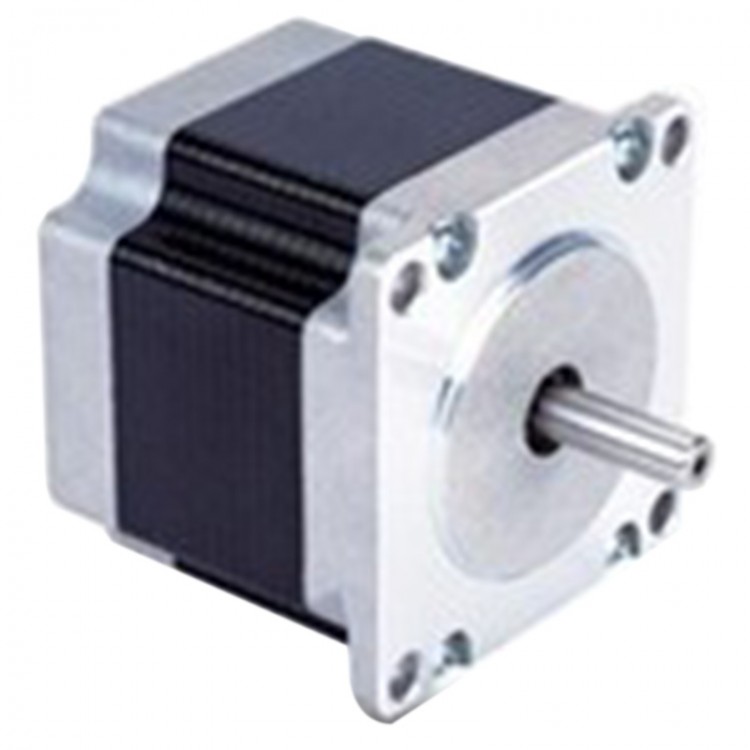

TDA220-S 1.8 Degree 3.0V 2.0A 2.0N.m Three-Phase Asynchronous Stepping Motor for CNC
Parameters:
- Holding torque: 2.0N.m
- Step angle: 1.8degree
- Voltage: 3.0V
- Current: 2.0A
- Resistance:1.5Ohm
- Inductance: 6.2mH
- Motor length: 112mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Insulation class: F
The pictures shown are for your reference only.
Package included:
- 1 x Stepping Motor
