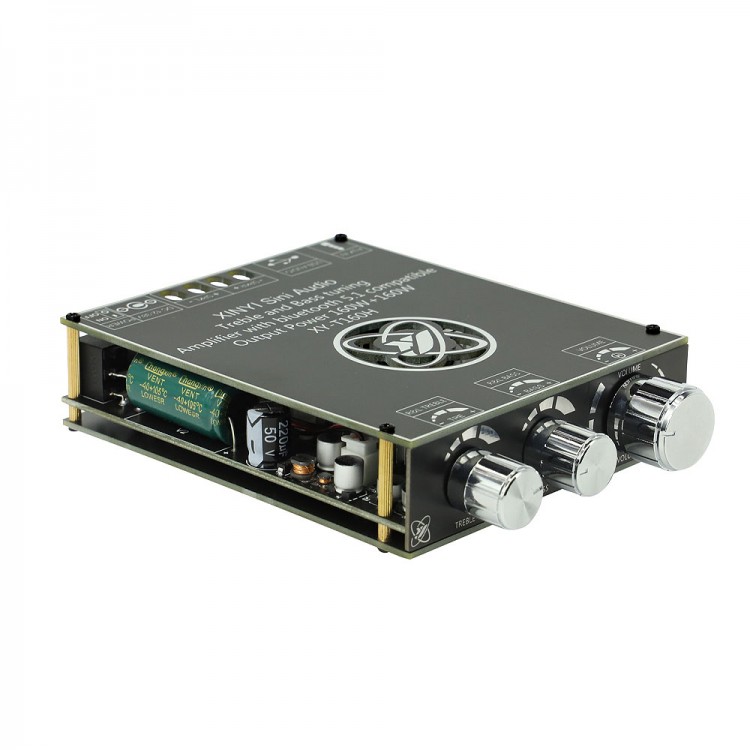

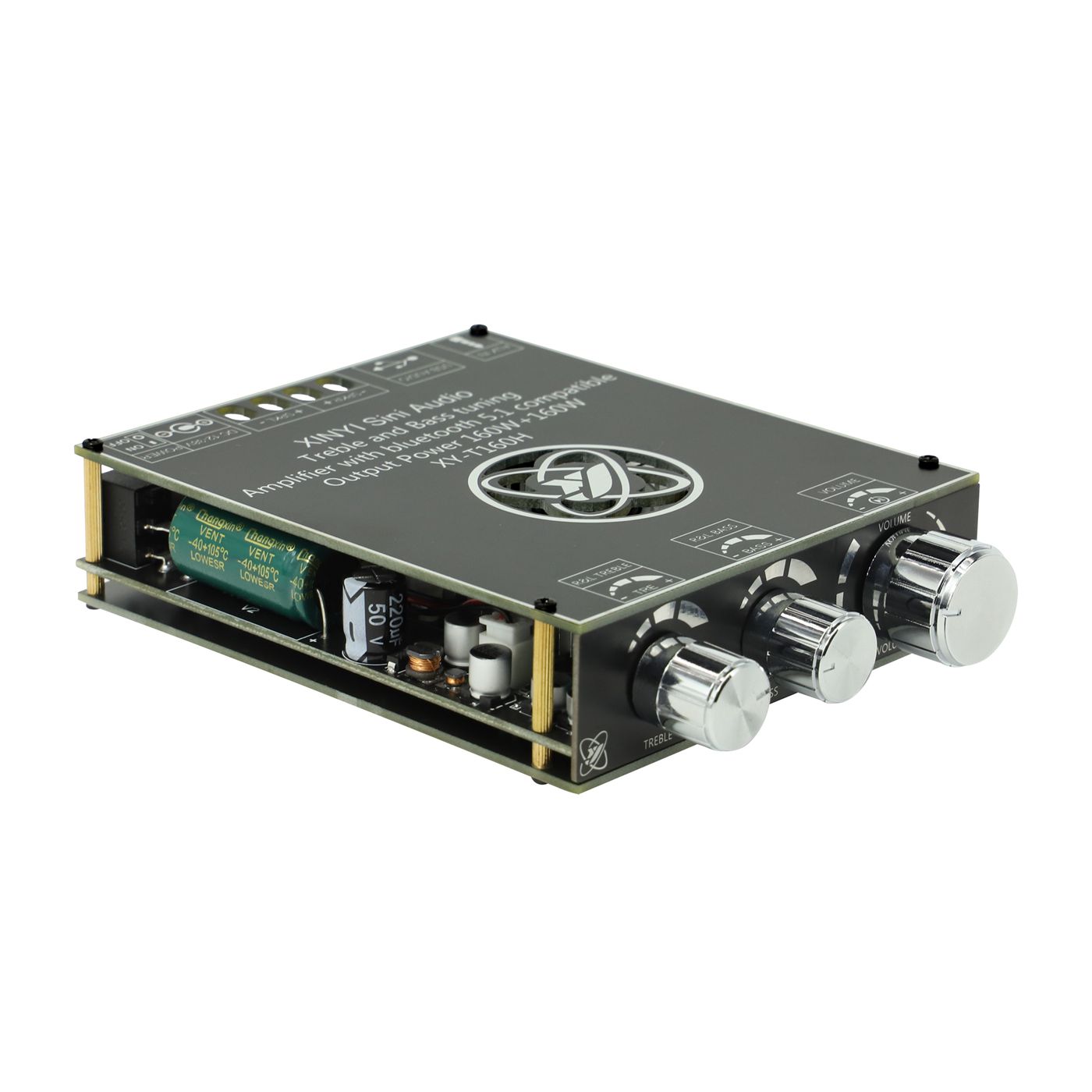

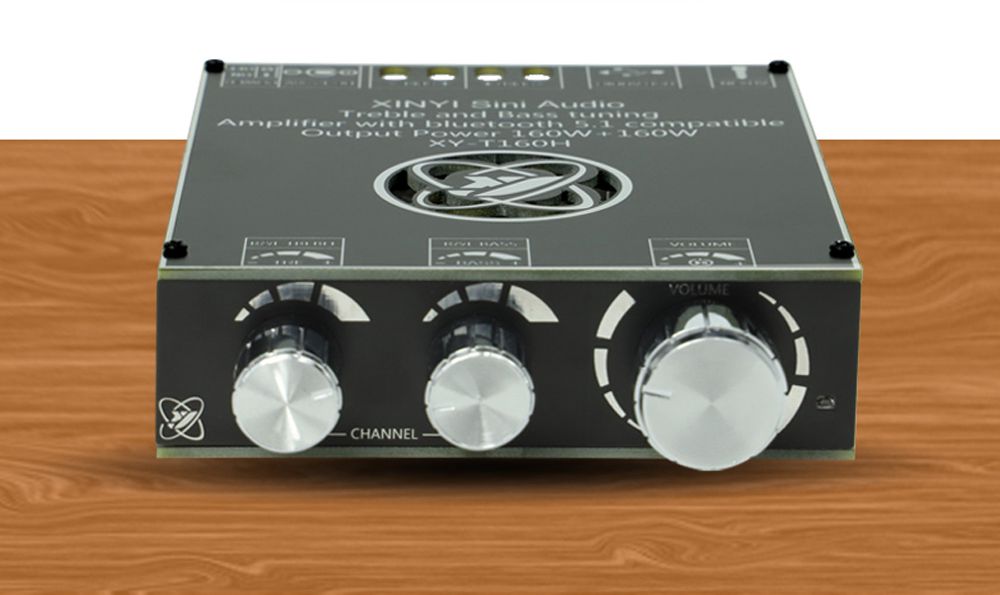

TDA7498E 160W x 2 Bluetooth Audio Amplifier Board Module with 2-Track Stereo Support Bluetooth 5.1

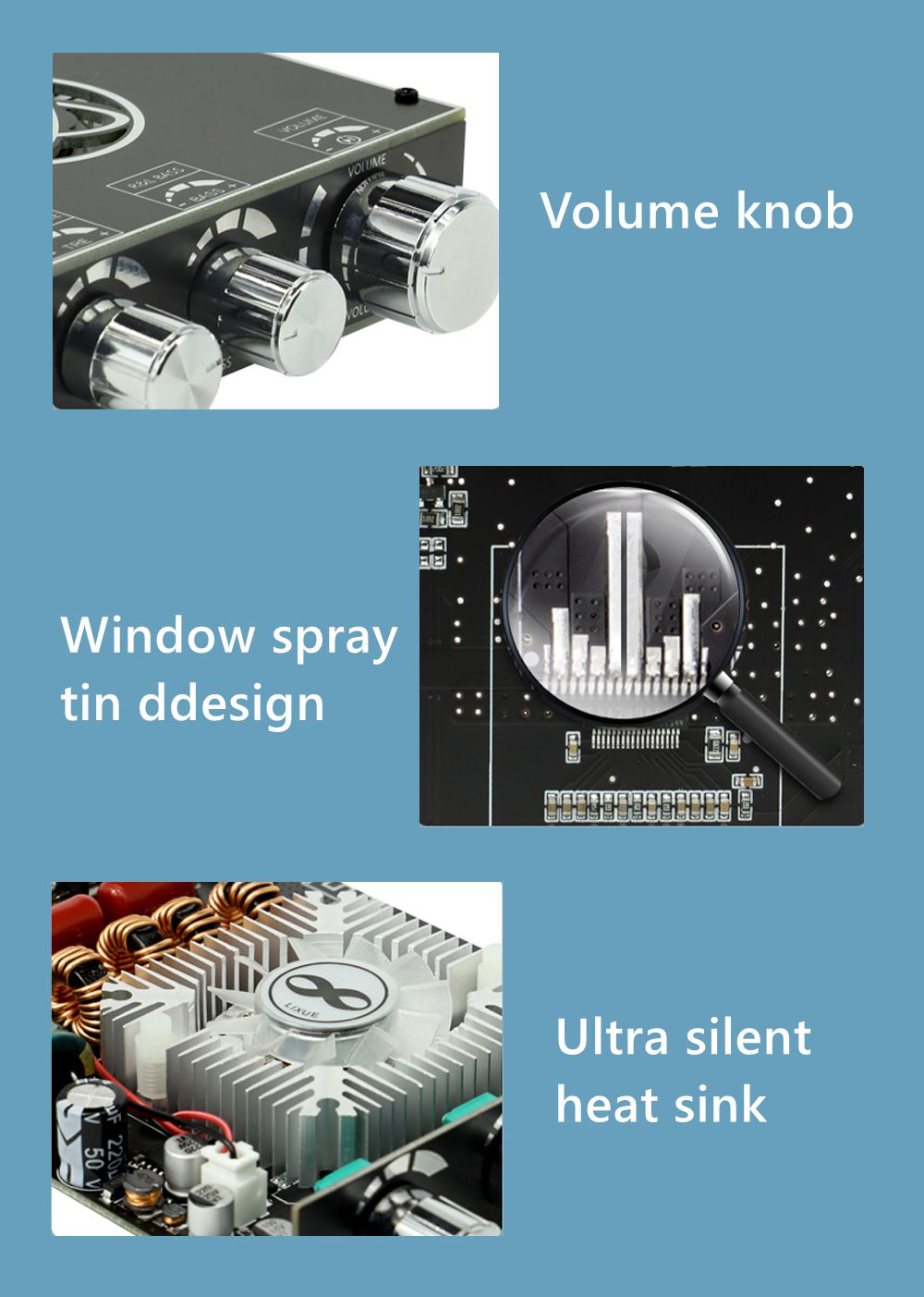

- The main knob adopts high-quality rotary encoder to realize 360-degree stepless tuning.
- Window opening and tin spraying design increase the output power.
- Ultra quiet, continuous and efficient heat dissipation ensures the high performance and the stable operation of the product.
- Support Bluetooth 5.1
- AUX input
- Flash driver play
- High fidelity sound quality
- Independent adjustment of high and low notes

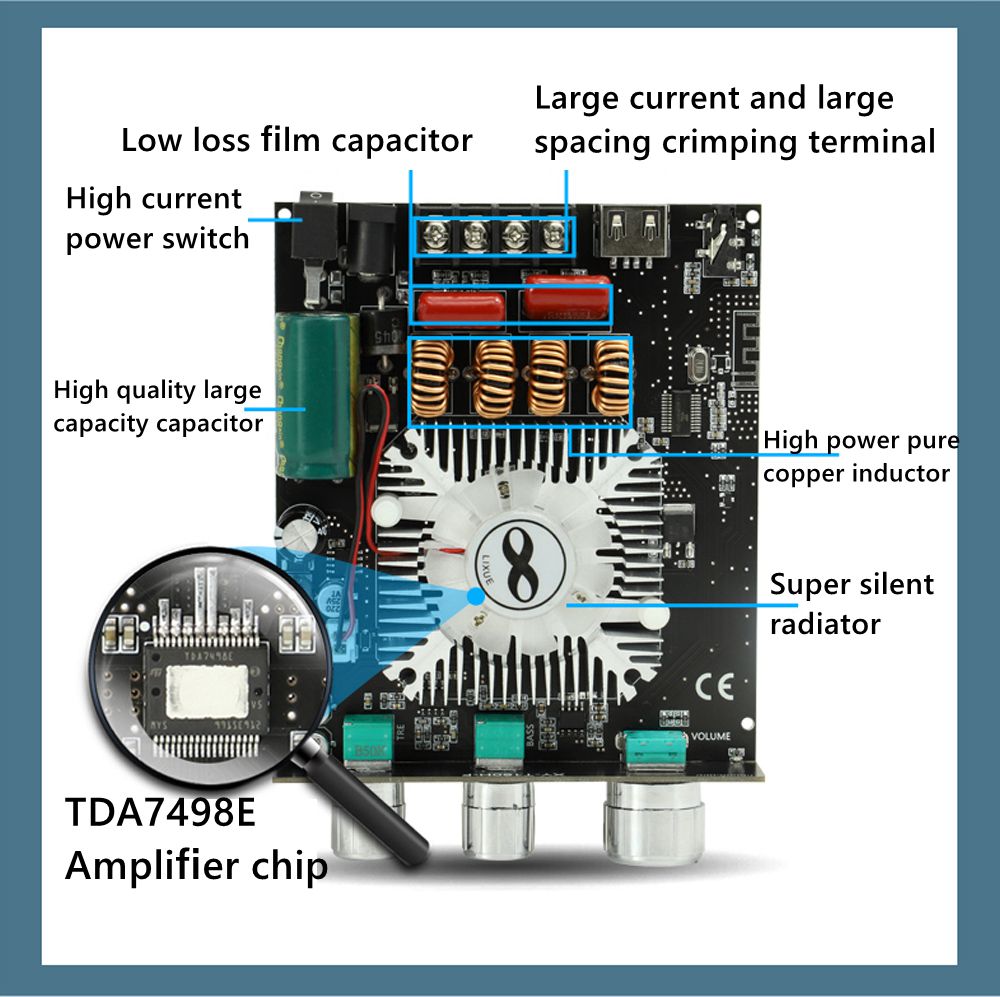

- TDA7498E chip
- Type: XY-T160H
- Bluetooth version: 5.1
- Supply power: DC12-36V/ above 8A
- Audio output: Stereo/2.0

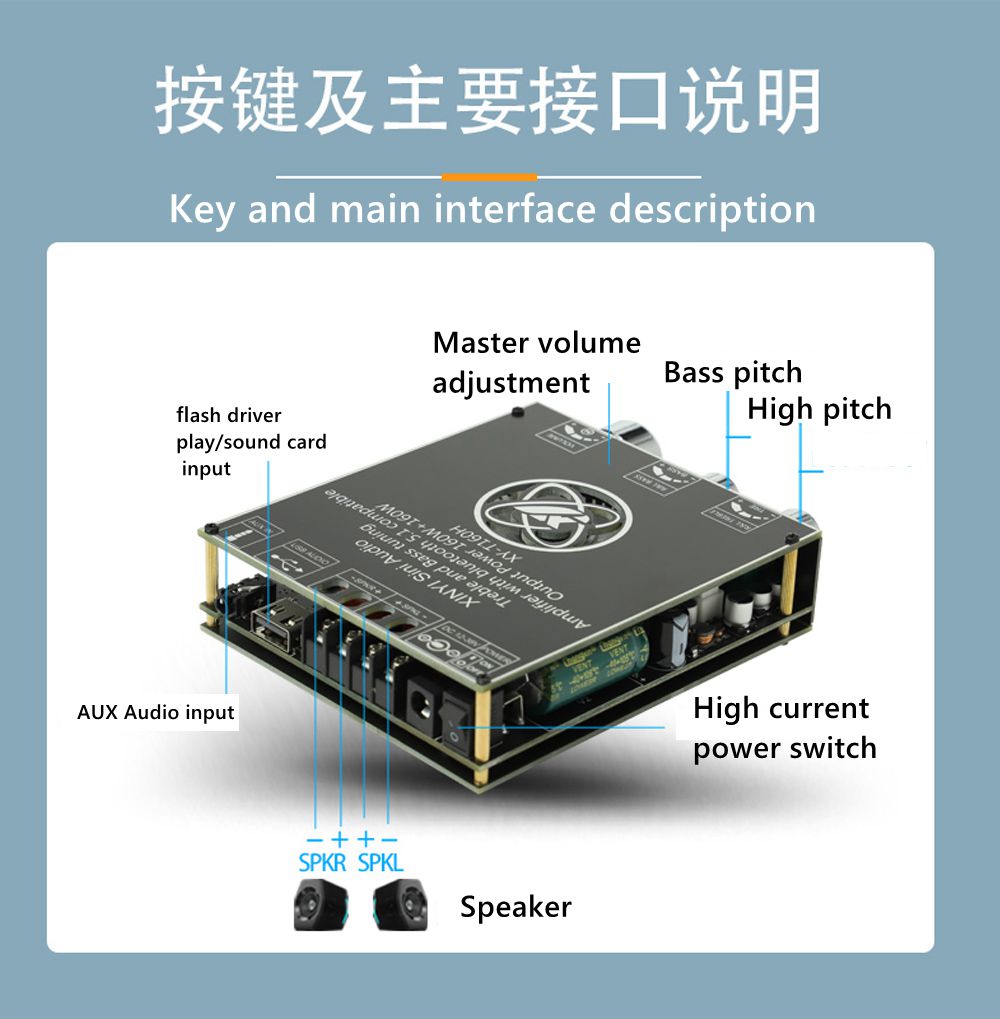

- Audio input: Bluetooth + AUX + Flash driver + USB Sound card
- Frequency range: 20Hz-20KHz
- Audio adjustment: Independent adjustment of high and low notes
- Volume adjustment: high-quality rotary encoder to realize 360-degree stepless tuning
- Decoding format (flash driver): WAV FLAC APE MP3
- Output power: 160W x 2 at 4Ω/36VDC
80W x 2 at 8Ω/36VDC
70W x 2 at 4Ω/24VDC
35W x 2 at 8Ω/24VDC
- Protection mechanism: over-voltage, under-voltage, clipping, short-circuit, overheating and other protection.

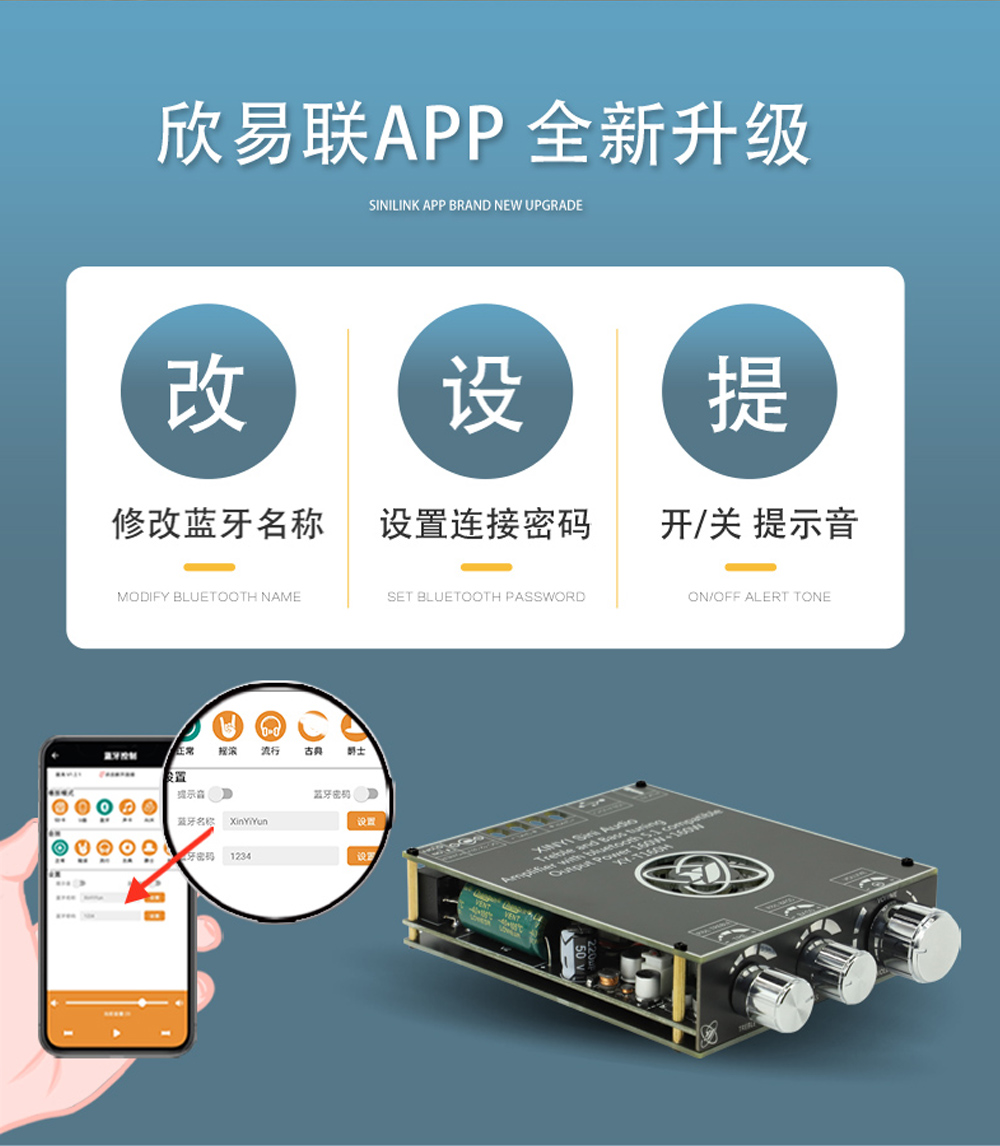

- Specific function: support APP Sinilink control
- Dimension: 128mm x 95mm x 26mm
- Weight: 220g

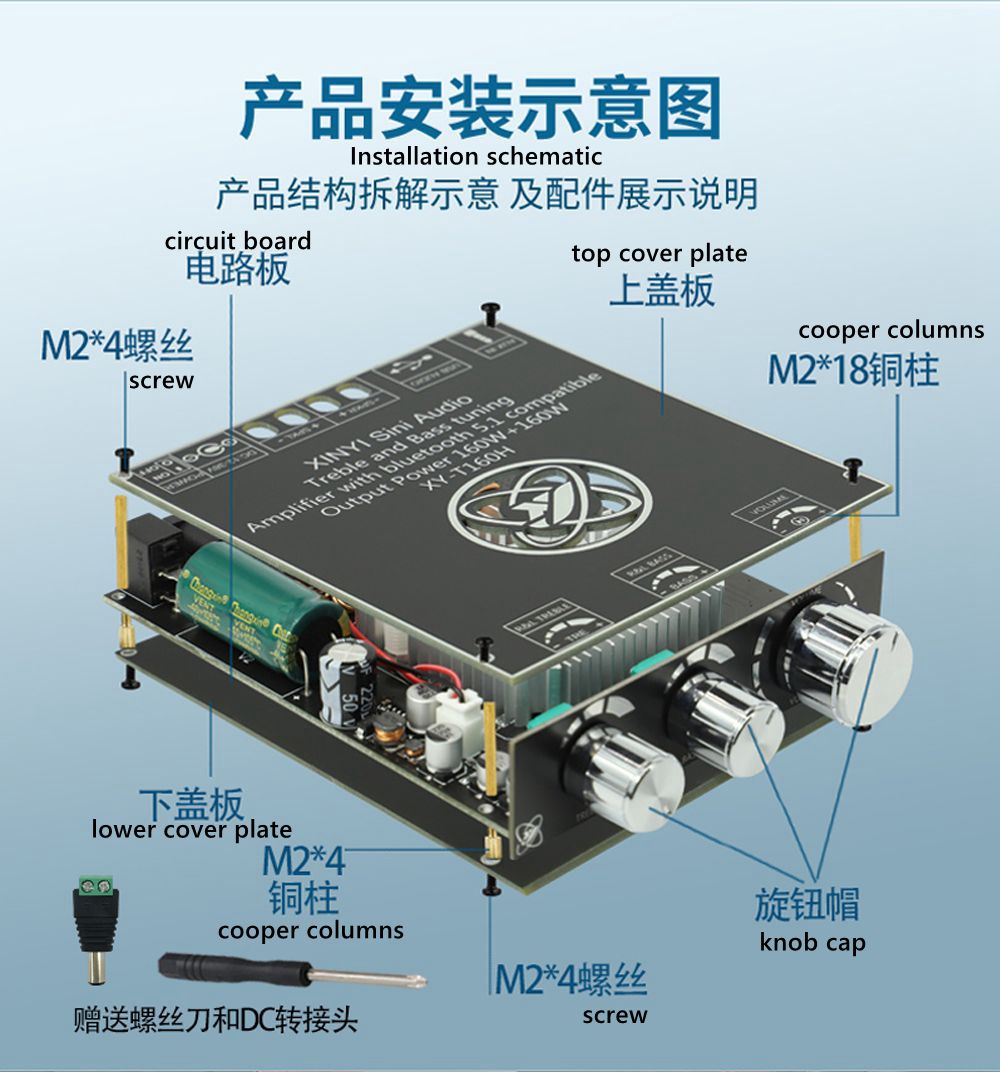

- 1 x TDA7498E Amplifier Board
- 1 x Screwdriver
- 1 x DC adapter
- 15V or above power supply is recommended.
