TE-300 CCTV Tester PRO IPC Tester w/ 3.5" LCD 12V Output RS485 PTZ Control For Analog Cameras
Attention:
- It is only for analog cameras.
- Cameras such as digital network/coaxial CVI/DVI/AHD/SDI are not supported.
Features:
- Analog camera, hard disk video recorder, set-top box, DVD and other AV video equipment display test
- Audio equipment test, DC12V output
- BCN network cable test. Line continuity detection, seven color bar tests
- Support PTZ debugging, dome power supply. 12V 1A output
- 3.5" HD LCD display, the display area is wider and clearer. Brightness, contrast and color saturation are adjustable
- Video signal test function. HD digital color screen, connected to analog cameras, can display monitoring images, suitable for high-altitude field construction personnel maintenance
- A 12V 1A power output port provides temporary power supply for cameras
- UTP network cable test. The connection mode of various network cables (any two wires or more than two wires) can be measured and displayed accurately. Simple, convenient and practical
- Chinese/English operation interface. Easy to switch between Chinese and English
- 3500mAh polymer safety battery, safe to use, boasts longer working time and longer lifespan
- Color bar test. Multi-standard color bar graph generator (seven-standard switchable video test signal generator), sends/receives color bar images of seven global standards
- Support 2ch output, 2ch video input, and 2ch video output
Specifications:
- Product model: TE-300
- Video format: NTSC/PAL automatically adapts
- Video signal: 1Vpp
- Display screen: 3.5" digital LCD color screen, resolution 960x240
- Display adjustment: the brightness, contrast and color saturation of the display are adjustable
- Video input/output: 2ch Video IN input, 2ch Video OUT output
12V Power Output:
- Power supply output: output 12V 1A DC power supply to provide temporary working power supply for camera
Audio Test:
- Audio test: Input one audio signal to test whether the sound is normal
PTZ Control Test:
- Communication interface: support RS485 bus at the same time
- Communication protocol: compatible with protocols for Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, and others
- Baud rate: 1200, 2400, 4800, 9600, 19200bps
Color Image Generator:
- Image generator: through the video OUT port, send PAL/NTSC multi-standard color graphic strip video test signal, support seven modes
UTP Network Cable Test:
- Network cable test: test any two or more network cables
Protocol Code Collection:
- Protocol code collection: can receive and display RS485 protocol code data sent by the control device
Power Supply:
- External power supply: DC 5V (1A)
- Battery power supply: Built-in 3.7V polymer lithium battery, capacity 3500mAh
- Charging: fully charged in 6-8 hours, and 8-hour endurance time
- Power saving function: low power consumption, automatic standby power saving function. Real-time display of battery level icon
System Parameters:
- Operation setting: switchable OSD menu in Chinese, English
- Keyboard sound: on/off
Working Environment and Specifications:
- Working temperature: -10℃ to 50℃
- Working humidity: 30%-90%
- Size: 170 x 99 x 48mm/6.7 x 3.9 x 1.9"
- N.W.: 340g/0.7 lb

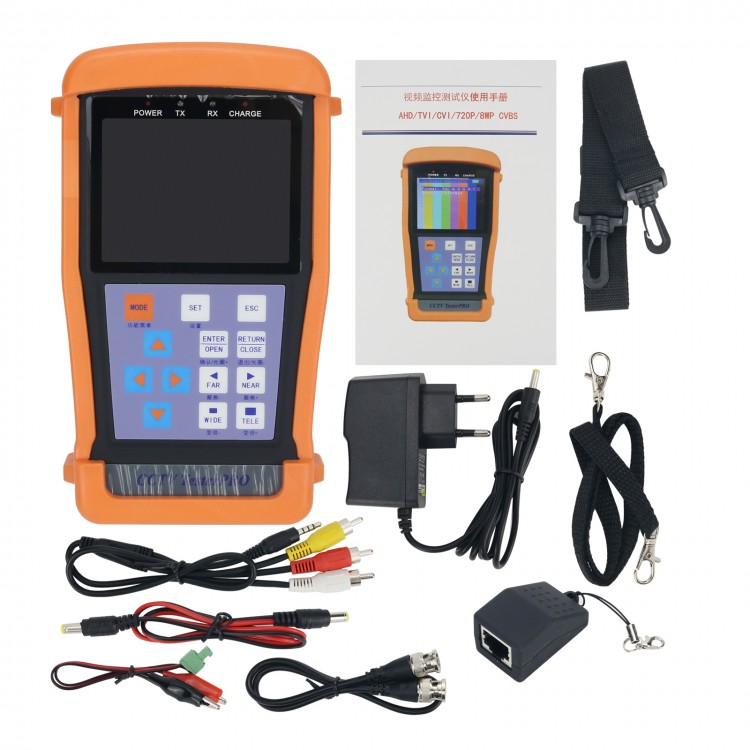

Package Included:
- 1 x Set of CCTV Tester
Note:
- Coaxial function can be added, please contact us to cover the cost.
