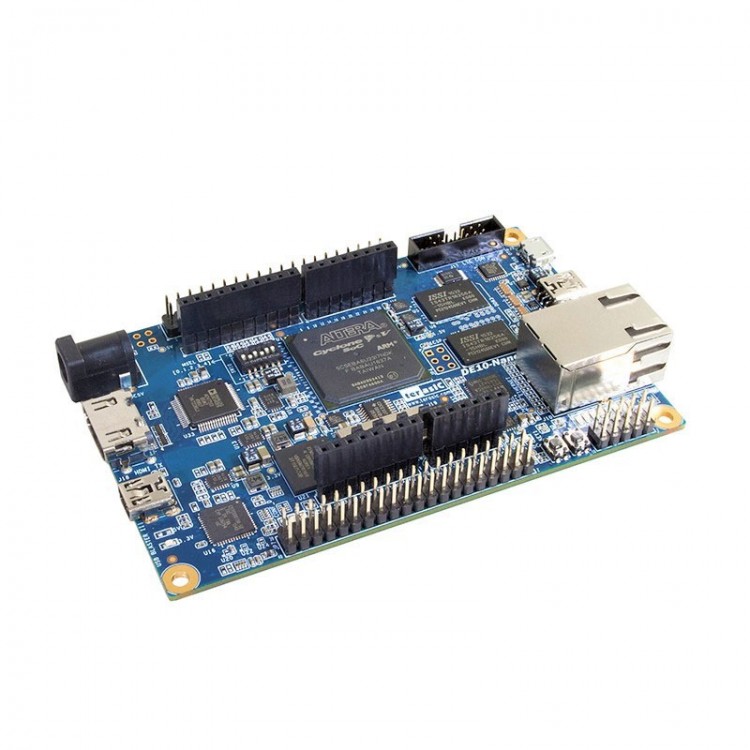

Description:
The DE10-Nano Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Original SoC for Altera integrates a hard processor system (HPS) (on the base for ARM) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Nano development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE10-Nano Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the system for Microsoft Windows XP or later.

Component Solutions for Intel FPGAs:
* Accelerometer Solution for ADI
* SDRAM Memory Solution for ISSI
* Clock Solution for Skyworks
* Ethernet Solution for Microchip
* Capacitive Component Solution for Panasonic

Specifications:
The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:
1. FPGA Device
* Original Cyclone V SE 5CSEBA6U23I7 device (110K LEs) for Intel
* Serial configuration device – EPCS64 (revision B2 or later)
* USB-Blaster II onboard for programming; JTAG Mode
* HDMI-compatible TX, compatible with DVI 1.0 and HDCP v1.4
* 2 push-buttons
* 4 slide switches
* 8 green user LEDs
* Three 50MHz clock sources from the clock generator
* Two 40-pin expansion headers
* One Ar-duino expansion header (Uno R3 compatibility), can be connected with Ar-duino shields
* One 10-pin Analog input expansion header (shared with Ar-duino Analog input)
* A/D converter, 4-pin SPI interface with FPGA
* If the specification of memory device in Quick Start Guide and official website is discordant, refer to DE10-Nano website as the sole standard.

2. HPS (Hard Processor System)
* 800MHz Dual-core Cortex-A9 processor for ARM
* 1GB DDR3 SDRAM (32-bit data bus)
* 1 Gigabit Ethernet PHY with RJ45 connector
* USB OTG Port, USB Micro-AB connector
* Micro SD card socket
* Accelerometer (I2C interface + interrupt)
* UART to USB, USB Mini-B connector
* Warm reset button and cold reset button
* One user button and one user LED
* LTC 2x7 expansion header

Connectivity:
* Connect LT24
* Connect Ar-duino
* Connect MTL2
* Connect D8M
* Connect D5M
* Connect LTC2607 (AD/DA Daughter Card)

Packing List:
* 1 x DE10-Nano Development Board
* 1 x DE10-Nano Quick Start Guide
* 1 x USB Cable Type-A to Mini-B
* 1 x USB Cable Type-A to Micro-B
* 1 x DC Power Adapter (5V)
* 1 x MicroSD Card (pre-installed)
* 4 x Silicone Foot Pads

Packaging Details:
* Weight: 0.5kg

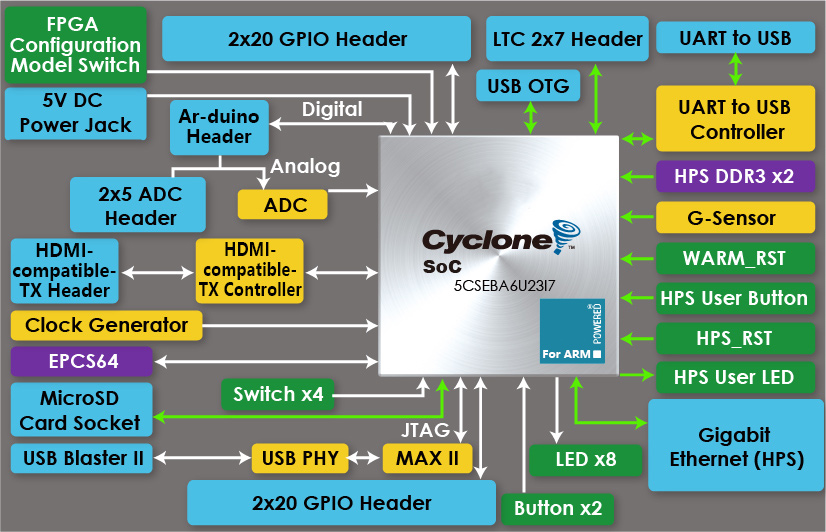

Block Diagram of the DE10-Nano Board:
