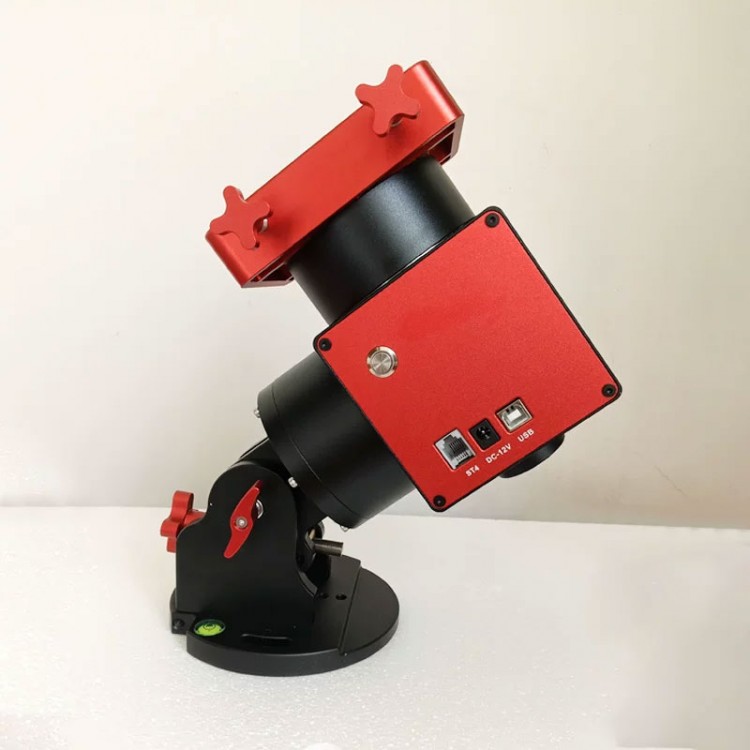

TeSeek HM-17PE Harmonic Equatorial Mount EQ Mount (Red) with 18KG Load Capacity + Pier Extension

Availability: In stock, usually dispatched in 1 business day

  • Price:$945.43
  • Price in reward points: 9454 Reward Points: 95
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $926.52 $907.61 $879.25 $841.43 Contact US
Quantity:

TeSeek HM-17PE Harmonic Equatorial Mount EQ Mount (Red) with 18KG Load Capacity + Pier Extension

Features:

* Harmonic equatorial mount for deep space telescopes
* Your ideal stargazing companion
* Lightweight, portable, precise, stable, and high load-bearing
* High-quality materials
* Durable and sturdy

Functions:
* Universal Dovetail Groove: Made from high-quality thickened metal plate with precision machining. Compatible with both wide and narrow rail telescopes.
* Stainless Steel Counterweight Rod: Constructed from stainless steel with a smooth surface, designed to balance the weight of the telescope.
* Hand-Tightening Screws: Featuring a smooth surface and fine workmanship, these screws are easy to use and provide strong, reliable fastening.

Technical Parameters:
* Mode: Equatorial Mount
* Latitude Adjustment Base: Built-in
* Load Capacity (without Counterweight): 13kg
* Load Capacity (with Counterweight): 18kg
* PE (Periodic Error): < ±10"
* Drive Type: Harmonic + Timing Belt (400:1 Reduction Ratio)
* RA Drive: 42-48 Stepper Motor + 17-100 Reduction Harmonic + Electronic Brake
* DEC Drive: 42-40 Stepper Motor + 17-100 Reduction Harmonic
* Base Diameter: 125mm
* Latitude Adjustment Range: 0-90°
* Azimuth Adjustment Range: ±9°
* Electronic Polar Scope: iPolar/QHY
* GOTO Speed: 2.5°/s
* Counterweight Rod Interface: M12×1.75 Coarse Thread
* Counterweight Rod Diameter: 20mm
* Counterweight Rod Length: 230mm
* Power Interface: DC5.5-2.1 (12-15V and 2-5A)
* Data Interface: USB2.0/WiFi
* Guiding Interface: Hand Controller & ST4
* Compatible OnStep System: Supports PC, Mobile, ZWO ASIAIR Smart Controller, NINA, WiFi, Bluetooth, Hand Controller, etc.
* Other Features: Bubble Level/Mechanical Home Position
* Material: Aluminum Alloy
* Net Weight of EQ Mount: 4.8kg

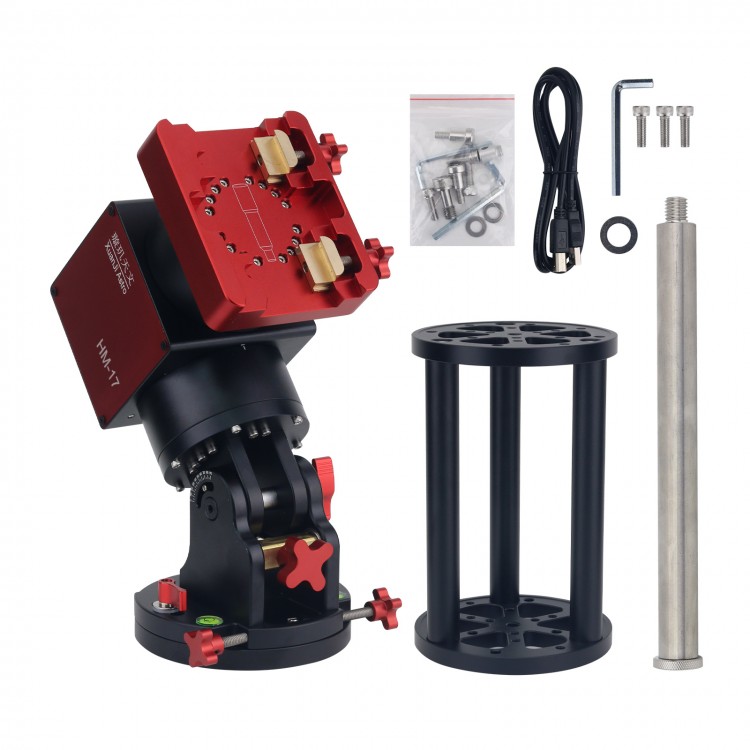

Packing List:

* 1 x EQ Mount
* 1 x Pier Extension

Packaging Details:
* Weight: 7kg
