Tesla Coil Full Bridge Inverter Module Finished H Bridge Inverter Module for DRSSTC SSTC

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.64
  • Price in reward points: 466 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.71 $44.77 $43.38 $41.51 Contact US
Quantity:

Tesla Coil Full Bridge Inverter Module Finished H Bridge Inverter Module for DRSSTC SSTC

Description:

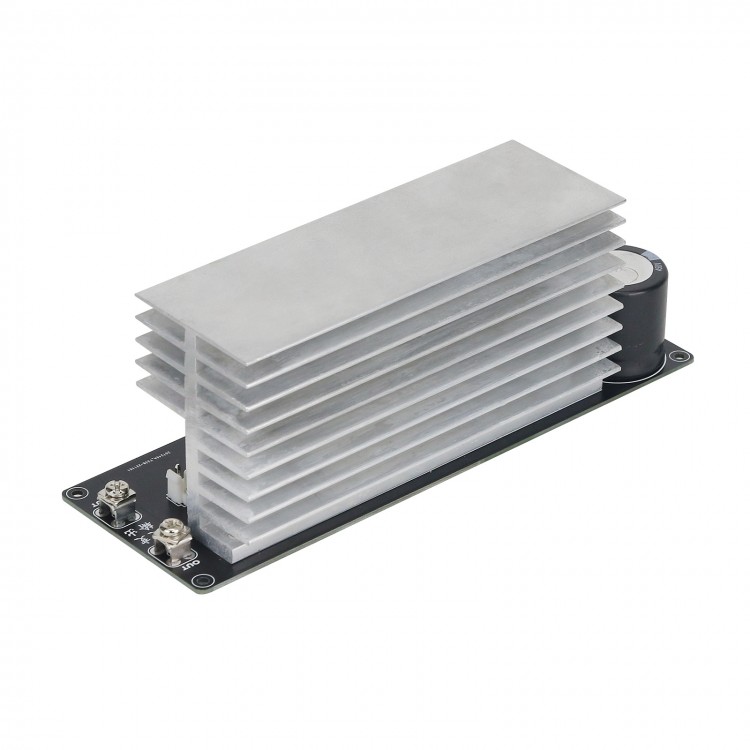

This is a Tesla coil full-bridge [H-bridge] inverter module. Its on-board rectifier can use the industrial frequency AC input directly.

4pcs imported IGBT GT60N321 transistors (second-hand). The quality of the transistors are guaranteed.

The gate drive uses an isolation transformer [GDT] input. The phases are already set on the board, and all can be wired in the same phase! No need for the user to adjust the phase! Plug-in terminal for easy wiring!

The heat sink of IGBT has been enlarged and thickened. A single F-shaped heat sink allows you to easily mount a cooling fan behind the heat sink. The four corners of the PCB have M3 fixing holes for easy installation! Bus absorption capacitor adopts the original American non-inductive absorption capacitor for CDE! The inverter output terminal adopts "large" current screw type terminal!

PCB size: 190 x 65mm/7.5 x 2.6".

Package Included:
- 1 x Full Bridge Inverter Module
