TF-150M GPS Amplifier GPS Booster Beidou Transponder Indoor Signal Amplifier Beidou + GPS Antenna

TF-150M GPS Amplifier GPS Booster Beidou Transponder Indoor Signal Amplifier Beidou + GPS Antenna

Features:
- Cables made of SYV-50-3 pure copper 96 braid material. Its power cord made of pure copper
- The main body of the amplifier made of pure cast aluminum to ensure that the signal will not be lost
- Amplifier host made by a one-time placement machine with a 4-stage amplifier tube and a double filter, instead of manual welding
- Outdoor receiving antenna waterproof
- Beidou/GPS signal amplifier repeater
- Good material, good performance, fast reception of satellite signals
- Application: GPS product testing, including smart phones, car navigation systems, handheld computers, tablet computers, electronic dogs, satellite positioning tracking equipment, etc. Fits GPS laboratories, scientific research institutions where GPS products need to be tested, product performance verification and other application environments

Technical Parameters:
- Working frequency: GPS frequency 1575.42MHz (+10 MHz) / Beidou frequency 1561MHz
- Gain: 48-52dB (using 4-stage amplifier tube)
- Port standing wave: <1.5
- Interface type: SMA
- Working voltage: AC 220V
- Working temperature: -40 to 85℃

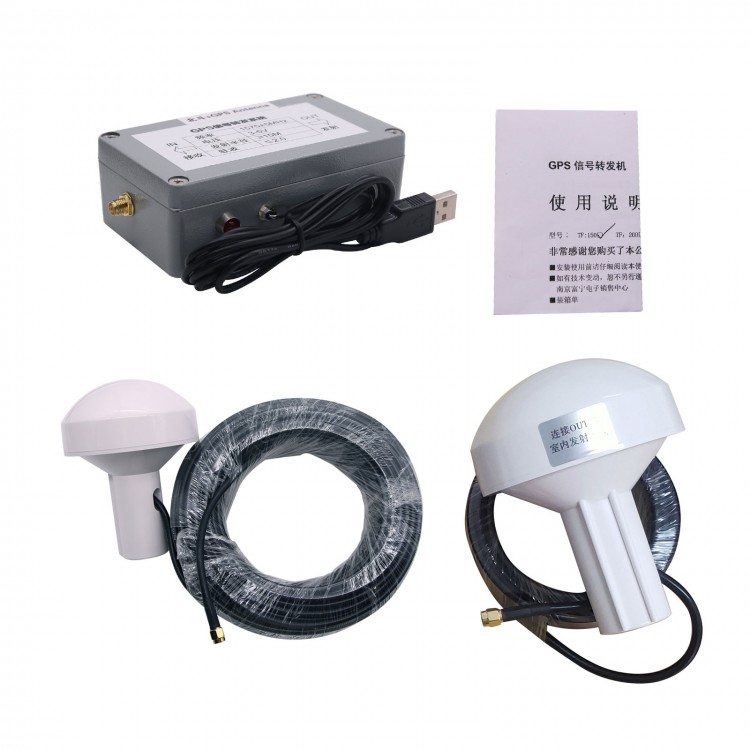

Package Included:
- 1 x Outdoor Receiving Antenna 25M/82FT
- 1 x Indoor Transmitting Antenna 5M/16.4FT
- 1 x Power Adapter 220V To 5V
- 1 x GPS Amplifier

Power Supply Mode:
A: Forwarding equipment 220V/50Hz
B: The online amplifier and outdoor antenna are powered by the transponder. (The cable is too long. If you need it, please the money)

Note:
- Supporting bracket and arrester are not included. If they are needed, please contact us to cover the cost.

Description:

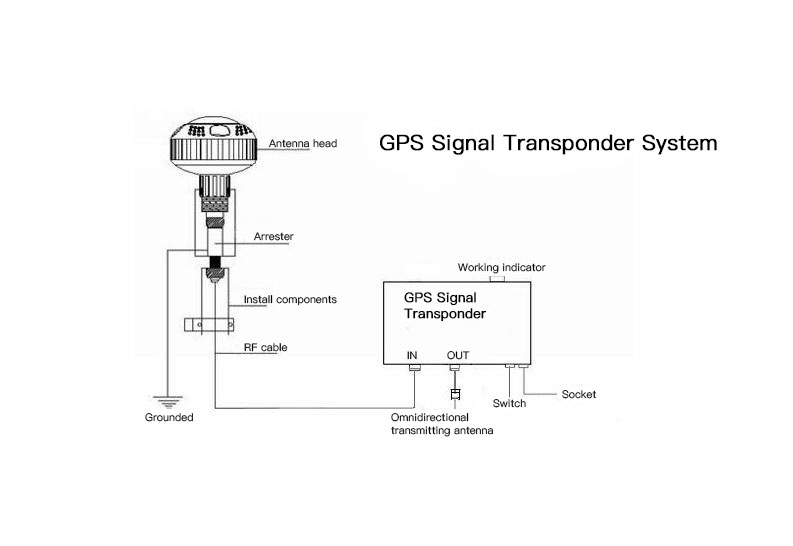

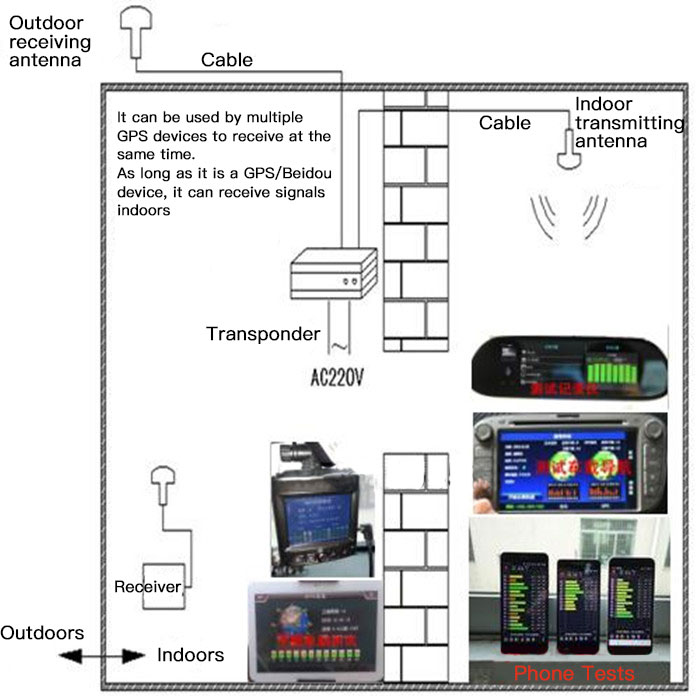

The GPS signal transponder is used to receive outdoor GPS signals. After filtering, amplifying, forwarding and other links, the effective GPS signal received by the outdoor antenna is transferred into the room to make GPS signal available indoors. The indoor omni-directional transmitting antenna transmits GPS signals, so that GPS devices within the signal coverage area can receive GPS signals, real-time positioning and timing signal enhancement is enabled.

Advantages:
1. The transponder has been developed to achieve the largest set of functions. Boasts simple operation, convenient installation, simplified equipment and simple wiring
2. Each receiver can receive GPS signals, instead of connecting the GPS signal cable to each GPS receiver, it solves the cumbersome link that the receiver must be placed outdoors during the experiment and improves efficiency
3. No limit to the number of indoor GPS receivers, and the system is maintenance-free
4. The signal coverage area after being transmitted by the transponder is large, and the maximum coverage is more than 15m/49.2ft
5. It can provide the most suitable and economical solutions for customers with different needs

Scope of Application:
It is suitable for all buildings where the GPS signal is shielded or obscured by obstacles. Such as GPS laboratories, classrooms, production lines, workshops, tunnels, logistics greenhouses, shopping malls and other occasions where GPS signals cannot be directly received.

1. GPS product production line: The signal coverage of GPS signal transponder fully meets a 15m/49.2ft production line for GPS chip feed inspection, semi-finished product inspection, finished product inspection and product aging test.

2. GPS indoor laboratory: GPS indoor laboratories generally have poor signals or no signals at all. Using this system, you can get GPS signals indoors as wide outdoors.

3. GPS equipment application display: Obtain the actual GPS signal during the display to show the function of a GPS application device. Such as exhibitions, conference rooms, etc.

4. Others require an external GPS signal: Such as classrooms, offices and other specific places where GPS signals are needed.
