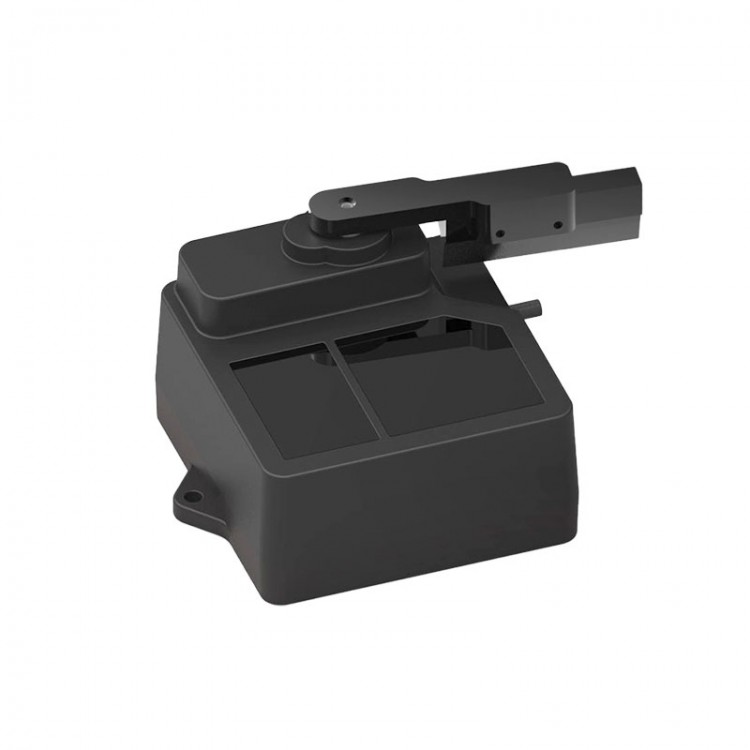

TF02-Pro-W RS485 0.1-25m Industrial Self-cleaning Laser Radar Sensor with RS485 Interface for Vehicle/UAV Drones
Description:
- The TF02-Pro-W is an industrial LiDAR sensor tailored for precise level detection and bulk material volume monitoring, featuring a self-cleaning wiper for reliable accuracy in dusty and smoky conditions. To further ensure accuracy, TF02-Pro-W industrial LiDAR offers a 1 ~ 1000Hz frame rate, around ±6cm to 1% accuracy, and up to 100KLux light resistance within a 25m range to accommodate various working environments.
- Built-in self-cleaning module. According to the usage scenario, users can customize multiple parameters of the TF03, such as output frame rate, baud rate, trigger mode, and over-range threshold. It also features a built-in BootLoader function, allowing users to conveniently upgrade the product firmware locally.
- TF02-Pro-W industrial LiDAR exemplifies highly accurate non-contact distance measurements with its time of flight principle and narrow field of view (FoV) design. Its self-cleaning lens and built-in dust-filtering algorithm further guarantee the reliability of distance measurement, contributing to a high-precision laser distance sensor that is both functional and efficient.
Specification:
Product Performance:
- Distance resolution: 1cm
- Accuracy: ±6cm (0.1m - 6m), ±1% (6m - 25m)
- Frame rate: 1Hz - 1000Hz adjustable (default 100Hz)
- Ability to resist environmental light: 100Klux
- Protection level: IP5X
Optical Parameter:
- Light source: VCSEL
- Centre wavelength: 850nm
- Human-eye safety: Class1 (IEC60825)
- FOV: 3°
Electrical Parameter:
- Power supply voltage: DC 5V
- Average current: ≤400mA
- Power consumption: ≤2W
- Peak current: 1A
Others:
- Cable length: 120cm

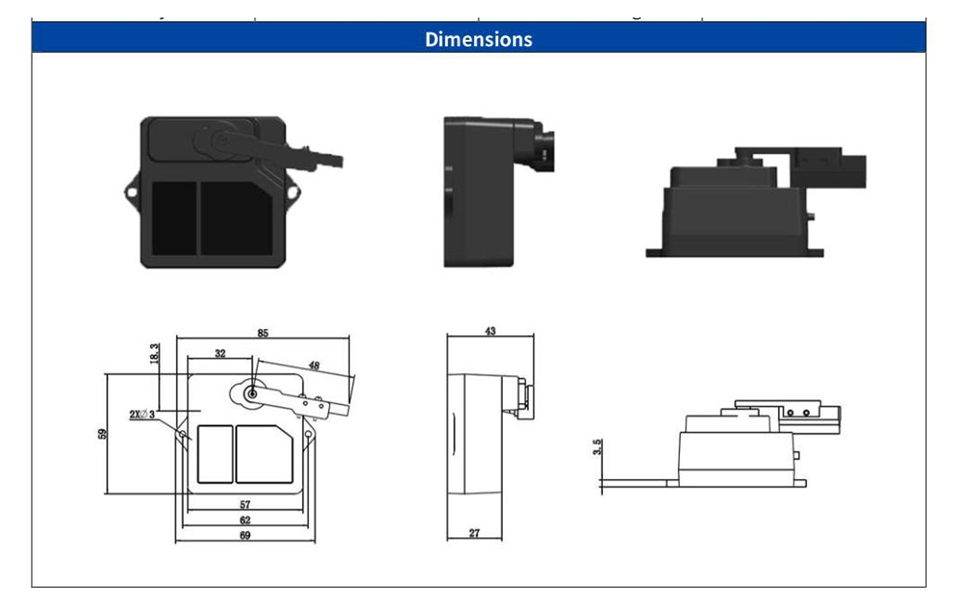

- Product size: 85 x 59 x 43mm
- Shell material: PC/ABS
- Storage temperature: -20℃ ~ 60℃
- Working temperature: -30℃ ~ 80℃
- Net weight: 90g (with cable weight)
Package Included:
- 1 x Radar Sensor
