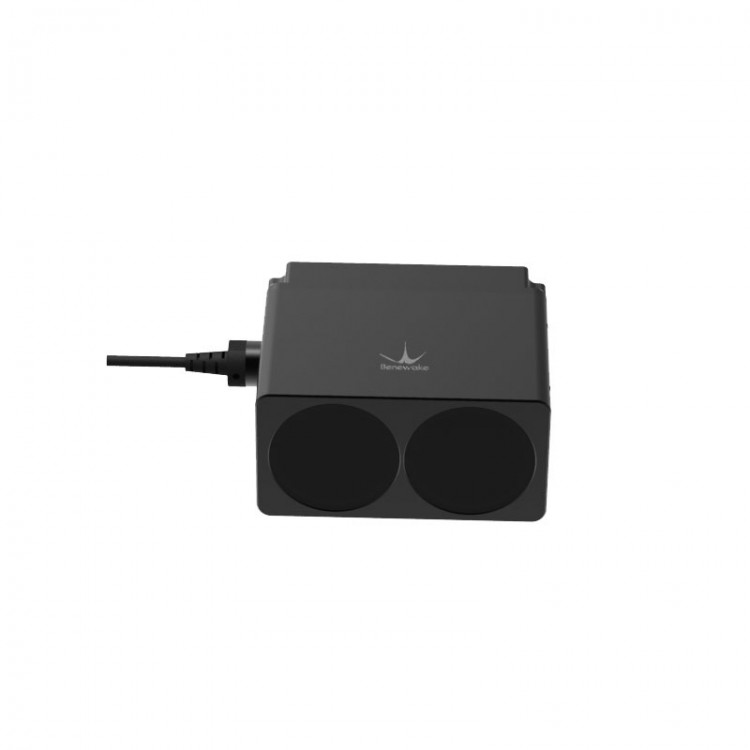

TF350 RS232 0.1m-350m Industrial Long Range Laser Radar Sensor with RS232 Interface for Vehicle/UAV Drones

TF350 RS232 0.1m-350m Industrial Long Range Laser Radar Sensor with RS232 Interface for Vehicle/UAV Drones

Description:
- As the third generation product of the TF series, TF350 inherits the high cost-effectiveness and high integration characteristics of the previous two generations while upgrading more than ten key indicators. It opens up multiple expansion functions to meet the different needs of different application fields, and is applied in areas such as drone height determination, car collision prevention, intelligent transportation, and industrial safety warning.
- The TF350 adopts a pulse based time-of-flight method and features a unique optical system and signal processing circuit design that improves ranging performance while maintaining a compact size; In addition to increasing the range to over 100 meters, key parameters such as resolution, accuracy, repeatability, and detection frequency also show excellent performance across the entire range.
- The housing of TF350 is made of aluminum alloy and infrared high transparency glass to improve the overall strength of the body, with a protection level of up to IP67, to meet various applications in harsh environments.
- TF350 supports multiple interfaces, including UART, CAN, RS232, and RS485 (optional), with on-demand selection to meet the needs of different applications.
- Multiple parameters of TF350 are available for customers to customize and configure, such as output frame rate, baud rate, trigger mode, over range threshold, etc. Built-in BootLoader function, convenient for users to upgrade product firmware locally.

Specification:
Product Performance:
- Range: 350m at 90% reflectivity, 110m at 10% reflectivity, 300m at 90% reflectivity & 100Klux, 100m at 10% reflectivity & 100Klux
- Blind area: 10cm
- Distance resolution: 1cm
- Accuracy: ±10cm (< 10m), 1% (10m above)
- Repeat accuracy: < 3cm
- Frame rate: 1Hz - 1000Hz adjustable (default 100Hz)
- Ability to resist environmental light: 100Klux
- Over-range output: 350m (default value)

Optical Parameter:
- Light source: LD
- Light source wavelength: 905nm
- Detection angle: 0.35°
- Light spot size: 70cm x 25cm at 100m (horizontal x vertical)
- Laser safety level: CLAS 1 (IEC 60825)

Electrical Parameter:
- Power supply voltage: DC 5V (≥ 180mA)
- Average current: ≤180mA
- Power consumption: ≤1W
- Peak value current: ≤180mA
- Communication level: 3.3V

Others:
- Cable length: 70cm

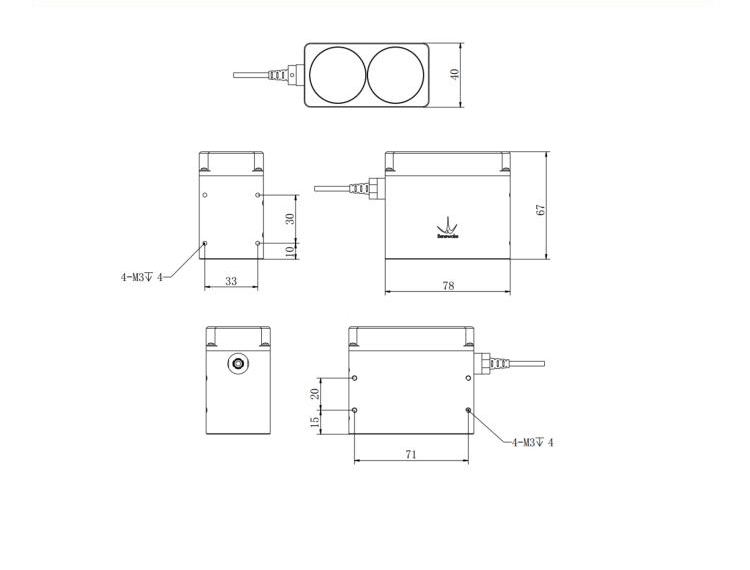

- Product size: 78 x 67 x 40mm
- Net weight: 222g (with cable)
- Shell material: aluminum alloy
- Installation specification: 4 x bottom installation holes, 4 x side installation holes, with a specification of M3*4mm
- Working temperature: -25℃ ~ 60℃
- Storage temperature: -40℃ ~ 85℃
- Protection level IV: IP67

Package Included:
- 1 x Radar Sensor
