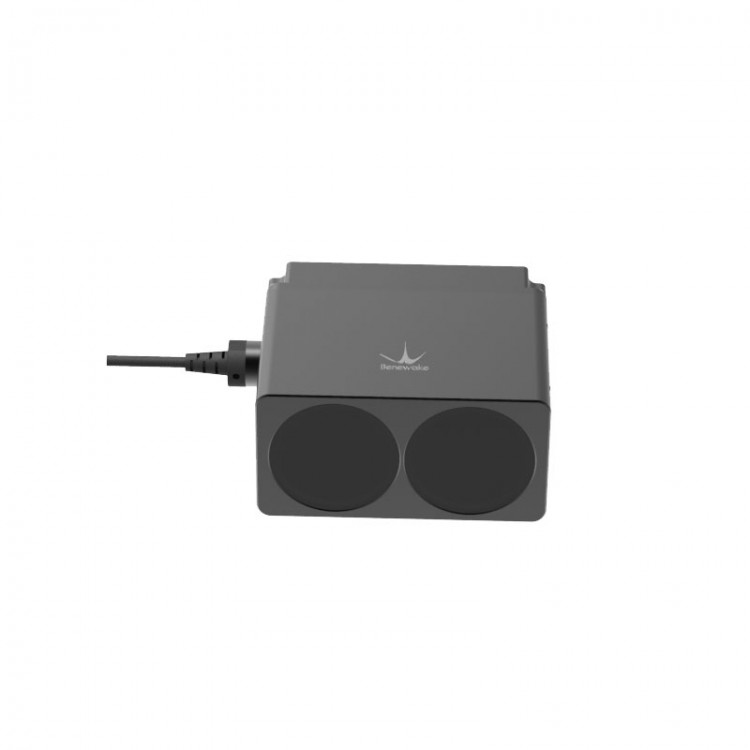

TF03 350m CAN 0.1-350m Industrial Single-point Long Range Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones

TF03 350m CAN 0.1-350m Industrial Single-point Long Range Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones

Description:
- The TF03, as the third generation product of the TF series, inherits the high cost-effectiveness and high integration characteristics of the previous two generations while upgrading more than ten key indicators. It offers multiple extended functions and boasts high product maturity, meeting the diverse needs of different application fields. It is primarily used in areas such as drones, intelligent transportation, and security warning systems.
- The TF03 features a unique optical system and signal processing circuit design, which enhances ranging performance while maintaining a compact size. In addition to a range exceeding one hundred meters, key parameters such as accuracy and detection frame rate also perform excellently across the entire range.
- TF03 LiDAR has a shell made of aluminum alloy and infrared band-pass glass to improve the overall strength and long-term reliability in various conditions. For functionality, multiple interfaces like UART, CAN, RS-232, and RS-485 are integrated into this long-distance LiDAR to enable robust real-time data exchange, crucial for accuracy and safety in vehicle collision avoidance, assisted takeoff, and landing of UAV and traffic flow analysis.
- According to the usage scenario, users can customize multiple parameters of the TF03, such as output frame rate, baud rate, trigger mode, and over-range threshold. It also features a built-in BootLoader function, allowing users to conveniently upgrade the product firmware locally.

Specification:
Product Performance:
- Distance resolution: 1cm
- Accuracy: ±10cm (< 10m), 1% (≥10m)
- Frame rate: 1Hz - 1000Hz adjustable (default 100Hz)
- Ability to resist environmental light: 100Klux
- Protection level: IP67

Optical Parameter:
- Light source: LD
- Centre wavelength: 905nm
- Human-eye safety: Class1 (EN60825:2014)
- FOV: 0.5°

Electrical Parameter:
- Power supply voltage: DC 5V - 24V
- Average current: ≤150mA at 5V; ≤80mA at 12V; ≤50mA at 24V
- Power consumption: ≤1W

Others:
- Cable length: 70cm
- Product size: 44 x 43 x 32mm
- Shell material: aluminum alloy
- Storage temperature: -40℃ ~ 85℃
- Working temperature: -25℃ ~ 60℃
- Net weight: 92g±3g (with cable weight)

Package Included:
- 1 x Radar Sensor
