TH2512A+ 200kΩ DC Low Resistance Tester Milliohmmeter Low Resistance Ohmmeter for USB Device Handler
Features:
- DC low resistance tester
- The minimum resolution is 10uΩ, with good stability
- Accurate data and it is fast to read data. Fast speed 48ms and slow speed 168ms
- Basic accuracy: ±0.05% + 2 digits
- Test range is up to 200kΩ
- Application scenarios: Suitable for transformer and inductance coil rebar resistance, relay contact resistance, switch, connector contact resistance, etc.
- More compact size and more complete interfaces
- Clearing function: clearing the full range for automatic ranging mode; when the range is locked, it clears the current range
- Standard RS232/RS485 (optional)
- It supports USB device handler
Technical Parameters:
- Model number: TH2512A+
- Basic accuracy: ±0.05% + 2 digits
- Test range: 10uΩ-199.9kΩ
- Test current: 100mA/10mA/1mA/100uA/10uA
- Range: 200mΩ/2Ω/20Ω/200Ω/2kΩ/20kΩ/200kΩ
- Minimum resolution: 10uΩ
- Display range: 0.01mOhm-199.99MOhm
- Measurement speed: fast 48ms; slow 168ms
- Comparators: Over upper limit, over lower limit, pass & audible signal
- Measuring mode: Automatic ranging and hold
- Trigger mode: Internal, external, manual and in-bus
- Clear: Clears at full scale
- G.W.: 5KG/11LB

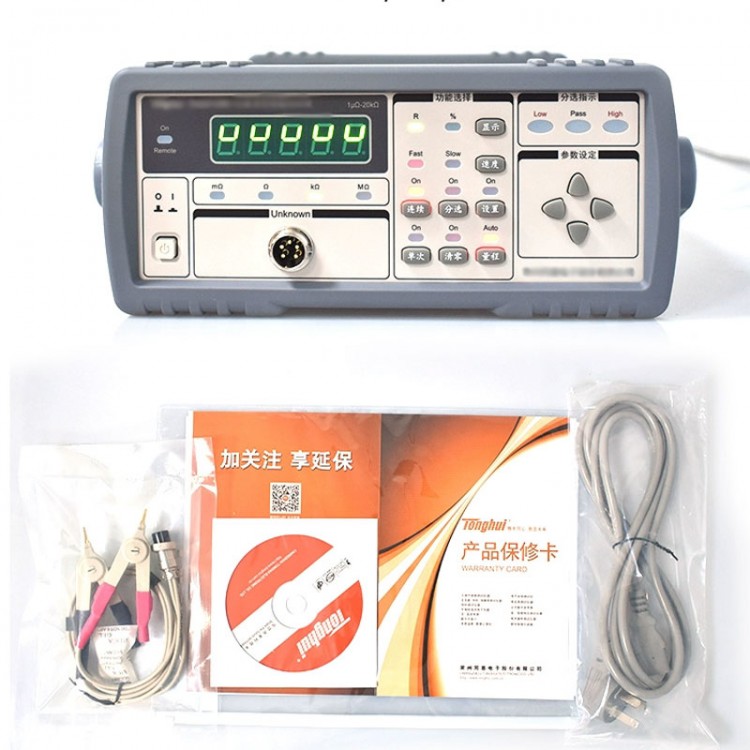

Package Included:
- 1 x Resistance tester
- 1 x Pair of alligator clips
- 1 x CD
- 1 x Warranty card
- 1 x Power cable
