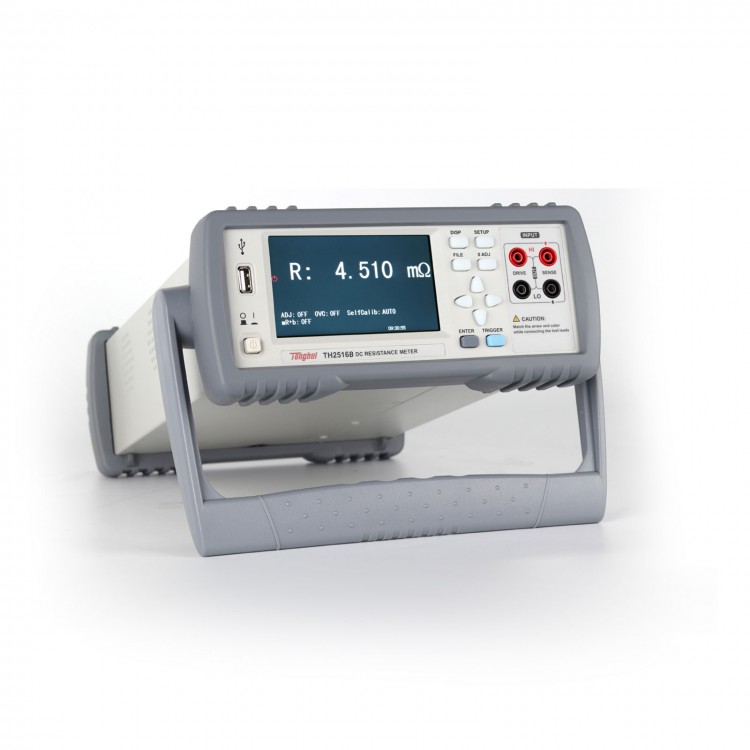

TH2516B 1uΩ-2MΩ DC Resistance Meter 32bits CPU High Precision Resistance Meter with 4.3-inch Touch Screen

TH2516B 1uΩ-2MΩ DC Resistance Meter 32bits CPU High Precision Resistance Meter with 4.3-inch Touch Screen

Description:
TH2516 adopts 32 bits CPU and high density SMD technology.24 bits, 4.3-inch and touch LCD screen brings ease for your eyes and convenience to your operation. The maximum 0.05% accuracy and minimum 1 µΩ resolution shore up its leading role in testing relay contact resistance, interconnecting resistance, conductor resistance, PCB resistance and welding-hole resistance. Temperature compensation and conversion functions make your tests be free from the effect of the environment temperature. The offset voltage compensation has effectively eliminated the electromotive force of the DUT and its contact potential difference. For the contact influence of the thermoelectricity on DUT, its elimination is achieved. Automation on production lines can be greatly improved by the realization of ultra-high test speed and the signal output of 3 compare results through HANDLER interface.

Features:
- Resistance range: 1uΩ - 20KΩ
- Maximum resistance accuracy: 0.05%
- Resistance resolution: 1u ohm
- Sampling rate up to 50 times/second
- 4.3-inch 24bit colorful touch screen with a resolution of 480x272
- R, LPR, and various testing functions
- Low resistance testing mode, effectively protects the tested component
- Offset voltage compensation function (OVC)
- User self calibration function (0 ADJ)
- Statistical function, providing statistics such as CpK and Cp
- Screenshot function, data recording function
- Simultaneously output the comparison results of three gears (out of limit, qualified, and audible)
- Instrument operation software can be automatically upgraded through USB HOST
- Optional operation interface in both Chinese and English
- Compliant with LXI Class C standards
- The Handler interface is used to implement online operations

Application:
- Components: resistors, inductors, transformers, motors, relays, circuit solder joints, capacitor rivet joints.
- Cables and connectors: multi stranded wires, connectors, various switches.
- Materials: thermosensitive materials (sensors for fuses and thermostats), conductive materials such as metal foil.
- New energy: Electric vehicle battery pack connection bridge, battery cell connection resistor.

Specification:
- Model: TH2516B
- Monitor: 24bit, resolution of 480x272 RGB TFT LCD display with touch screen funnction
- Reading digits: 4½ digits
- Measurement range: 1μΩ –20kΩ
- Resistance range: 20kohms
- Current: 100uA
- Basic measurement accuracy: 0.2%
- Resistance measurement time: FAST:10ms; MED:25ms; SLOW1:115ms; SLOW2:455ms. Above data is correct when DISPLAY is OFF; when DISPLAY is ON, 20ms should be added.
- Test terminal: 4-terminal
- Statistic function: AVG, MAX, MIN, OSD (Overall standard deviation), SSD (Sample standard deviation), Process capacity index (Cp, cpk)
- Compare judge:
  Signal output: HI/IN/LO
  Beep: beep mode (OFF, IN, HI/LO)
  Limit setting mode: absolute value high/low limit, Percentage high/low limit +nominal value
- Interface configuration: USB DEVICE, USB HOST, RS232C, HANDLER
- Product size: 235 x 105 x 360m
- Net weight: 3.6kg

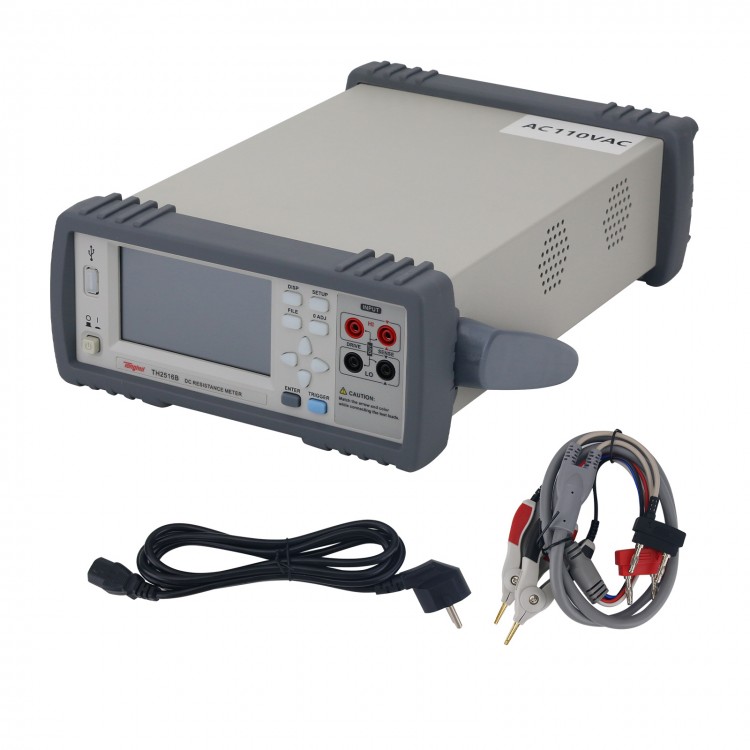

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x TH26050 4-Terminal Testing Cable
- 1 x User Manual
