• THB-8 1000mm Octacopter Frame 25mm Carbon Fiber 15kg Heavy-Duty FPV Multicopter/Aircraft Better than DJI S800

THB-8 1000mm Octacopter Frame 25mm Carbon Fiber 15kg Heavy-Duty FPV Multicopter/Aircraft Better than DJI S800

Availability: Out Of Stock

  • Price:$849.99
  • Price in reward points: 8500 Reward Points: 85
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $832.99 $815.99 $790.49 $756.49 Contact US
Quantity:

THB-8 1000mm Octacopter Frame 25mm Carbon Fiber 15kg Heavy-Duty FPV Multicopter/Aircraft Better than DJI S800

Specifications:
- Wheelbase/Shaft distance:1000mm
- Weight:2000g;
- Flying weight:4000g (without battery)
- Recommend flying weight:8500g;
- Max flying weight:15000g;
- 6S 10000mah battery x 2,weight 2400g, carrying weight 3600g ,flying time 15 minutes
- 6S 15000mah batteryt,3600g, carrying weight,2400g,flying time :20 minutes

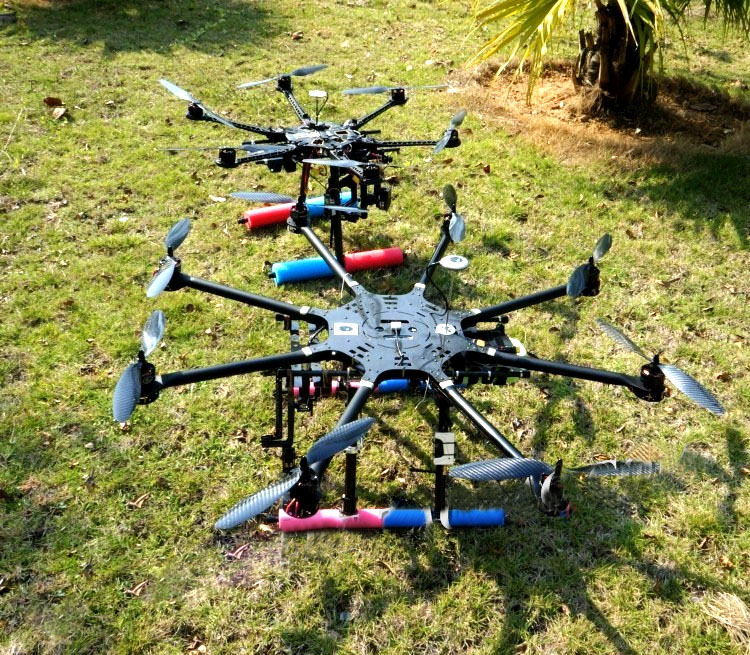

Following picture shows the THB-8 octacopter and DJI S800 Hexacopter

Features:
- taking 25mm diameter carbon fiber tube as material

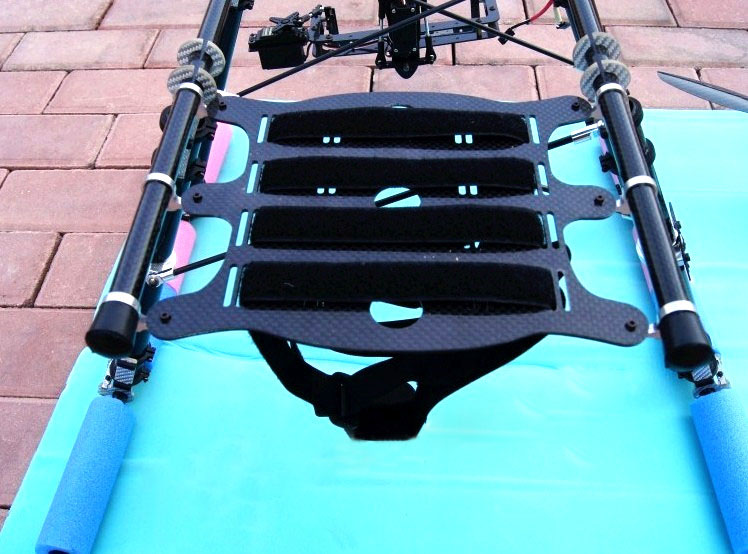

- with Sepcial designed landing skid set

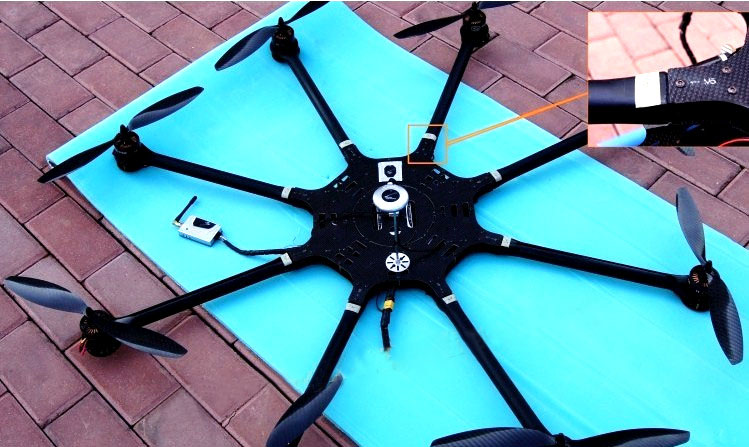

- Special screw hole designed,detachable but needn't calibrate when re aseemble,very easy to handle and operate

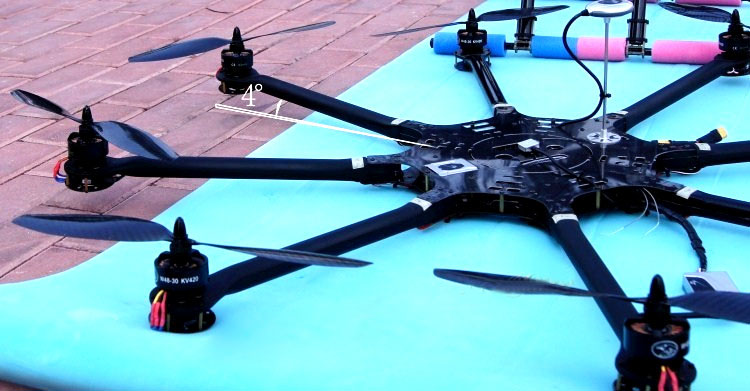

- 4 Degree wings up-forward design to keep bettery balance

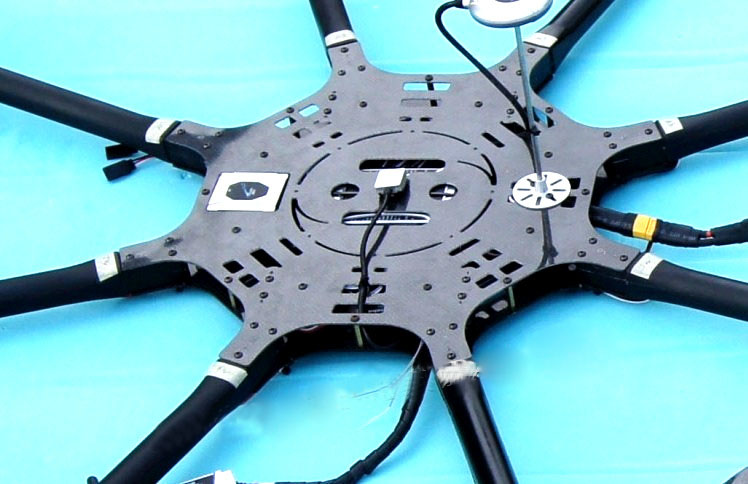

- Multi-function center board design,Flight control (ZERO YS-X6 or DJI )can be embedded in

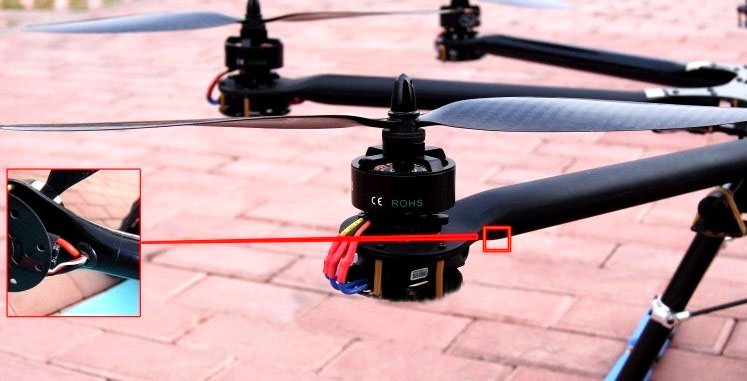

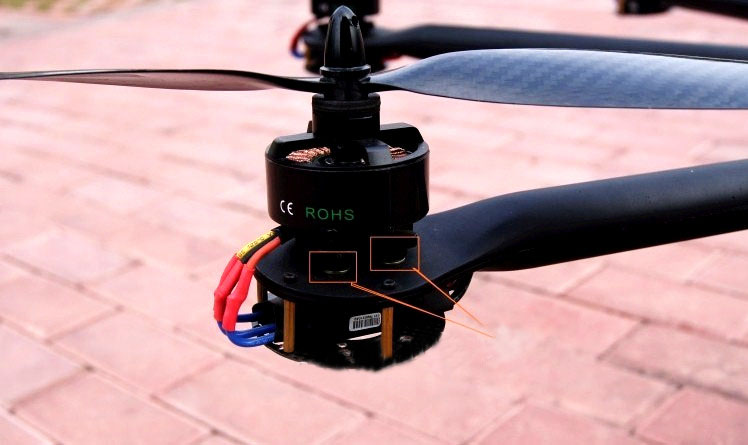

- ESC can be placed under the arm/wing,and 4pcs rubber damper placed between Motor and Wing

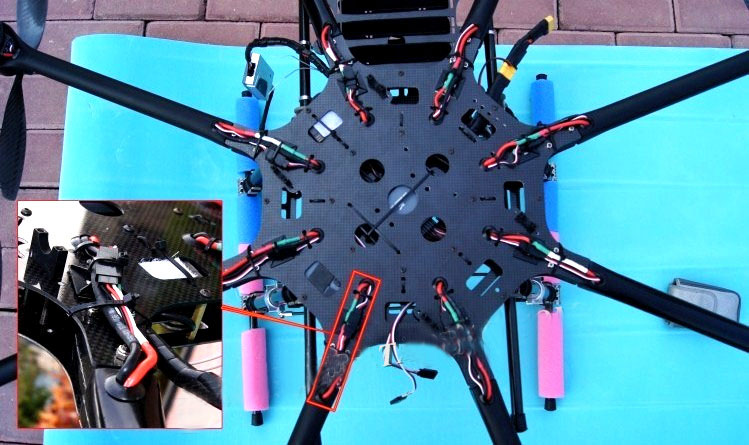

- Holes for wire connection and with rubber cushion for protection as picture shown





Package included:
- THB-8 1000mm Octacopter aircraft frame kit
- H-Shaped Landing skid set





Recommend motor and Flight controller (not included):
- ZERO YS-X6 or DJI Flight control system x1
- Hengli 4830 disk type brushless motor x 8
- Hobbywing 40A ESC x8
- 14-15 inch Propeller


Weight: 4000g(when all above finished);
- Safty flying weight is 10kg

Test data
- 6S 10000mah battery x 2,weight 2400g, carrying weight 3600g ,flying time 15 minutes
- 6S 15000mah batteryt,3600g, carrying weight,2400g,flying time :20 minutes










Test Vedio:



Under Wind Weather Vedio:
