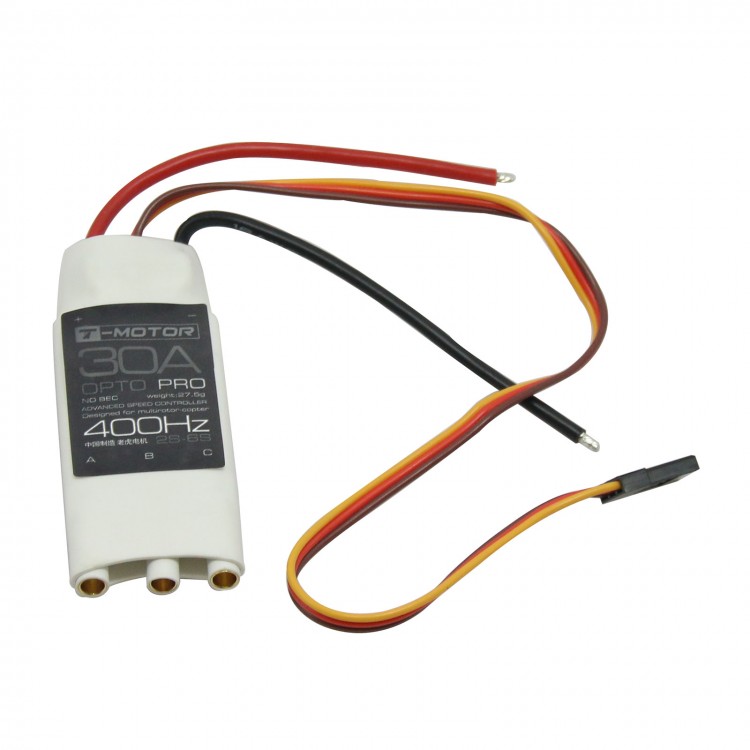

Tiger T-Motor 30APro ESC Speed Controller 400HZ 6S ESC Compatible Quadcopter/Hexacopter/Octocopter
T-Motor ESC30A OPTO PRO
- High performance Silabs C8051 F334 MCU
- Up to 25 MIPS throughput with 25 MHz clock
- Smooth and high responsive operation with improved code for multirotor applications, brings out the best compatibility with all kind of motors at the highest driving efficiency.
- Output: Continuous 30A, Burst 40A up to 10 Secs.
- Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
- BEC: none
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
- Size: 45mm (L) * 24mm (W) * 11mm (H).
- Weight: 31g.
Features:
- 1. Extreme low output resistance, super current endurance.
- 2. Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
- 3. Three start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircrafts and helicopters.
- 4. Throttle range can be configured and is fully compatible with all transmitters currently available on market.
- 5. Smooth, linear and precise throttle response.
- 6. Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
- 7. With a program card, you can activate the music playing function of the ESC, 15 tunes available.
