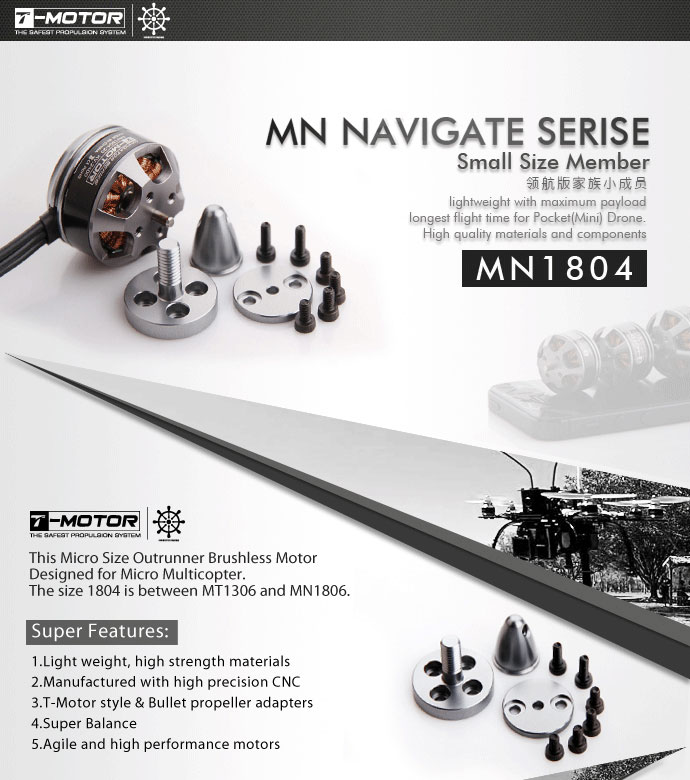

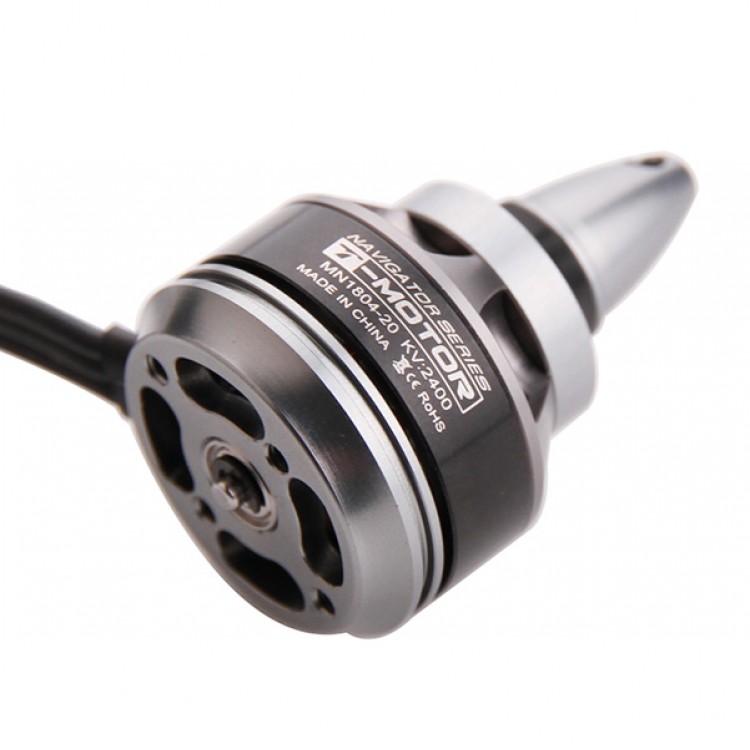

Tiger T-Motor Navigator Series High End MN1804 2400KV 2-3S Brushless Motor for Quadcopter Multicopters
Specifications:
Max. efficiency current.................................................................(2-5A)>81%
internal resistance..............................................................................230mΩ
Specifications:
- KV..............................................................................................................2400
- Configu ration....................................................................................12N14P
- Stator Diameter....................................................................................18mm
- Stator Length..........................................................................................4mm
- Shaft Diameter.......................................................................................2mm

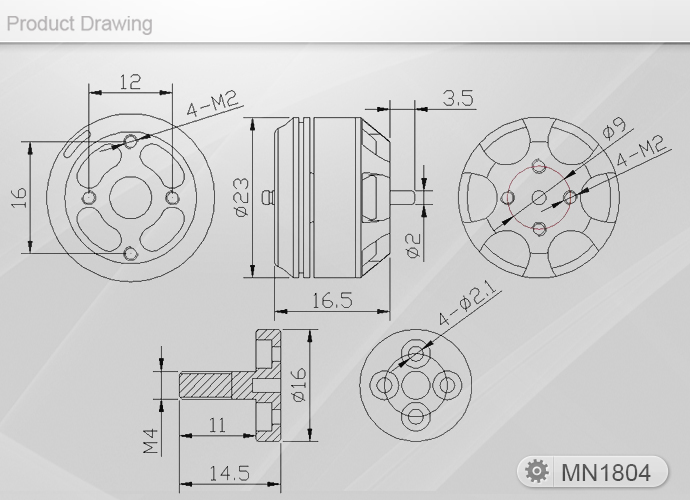

- Motor Dimensions(Dia.*Len)...............................................Φ23×16.5mm
- Weight (g)...................................................................................................16g
- ldle current(10)@10v(A)..........................................................................0.7A
- No.of Cells(Lipo).....................................................................................2-3S
- Max Continuous current(A)180S............................................................10A
- Max Continuous Power(W)180S...........................................................110W
- Max. efficiency current.................................................................(2-5A)>81%
- internal resistance..............................................................................230mΩ
