| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $86.78 | $85.01 | $82.35 | $78.81 | Contact US |

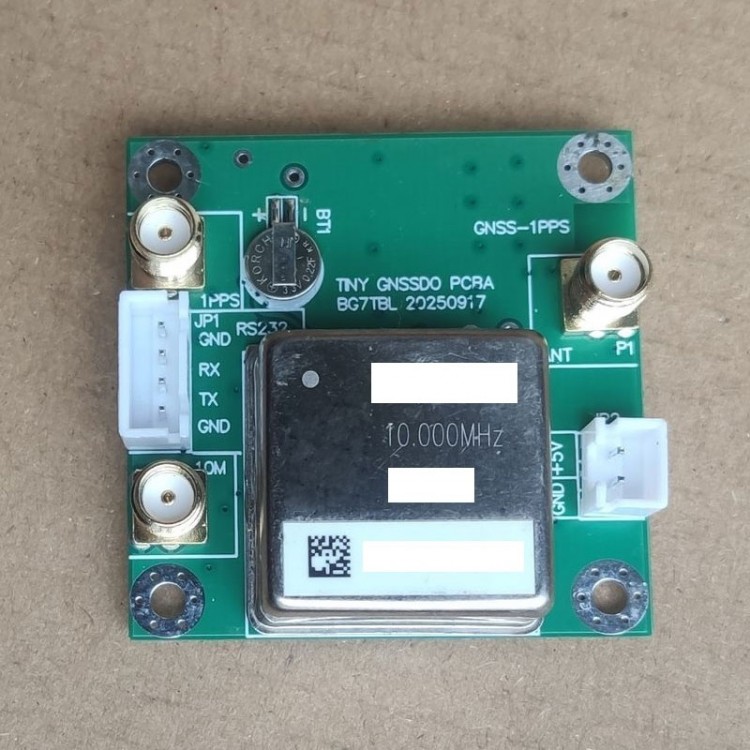

TINY GNSSDO PCBA High Precision GNSS Disciplined Oscillator Module 10MHz/Sinewave/10dBm Output
Specification:
- Product name: GNSS disciplined oscillator PCBA
- Model: TINY GNSSDO PCBA
- Input: GNSS (GPS, BDS, GLONASS, GALI) signal
- Output frequency: 10MHz/sinewave/10dBm
- Timing output: 1PPS/square wave/50% duty/3.3Vpp/30ns rms
- RS232 output: 0 - 3.3Vpp, 38400bps, NEMA protocol
- Disciplined frequency accuracy: 10M+/-300uHz
- Long time running frequency P-P: 10mHz (GNSS all time is lock)
- Holding accuracy: less than 4 hours/1us
- Interface: SMA, XH2.54
- Power: DC4.8 - 5.3V, power up < 4W, stable < 1.5W
- Antenna output power supply: DC4.5V/0.1A
- Product size: 45 x 45 x 18mm
- Net weight: 100g
Package Included:
- 1 x GNSS Disciplined Oscillator Module
