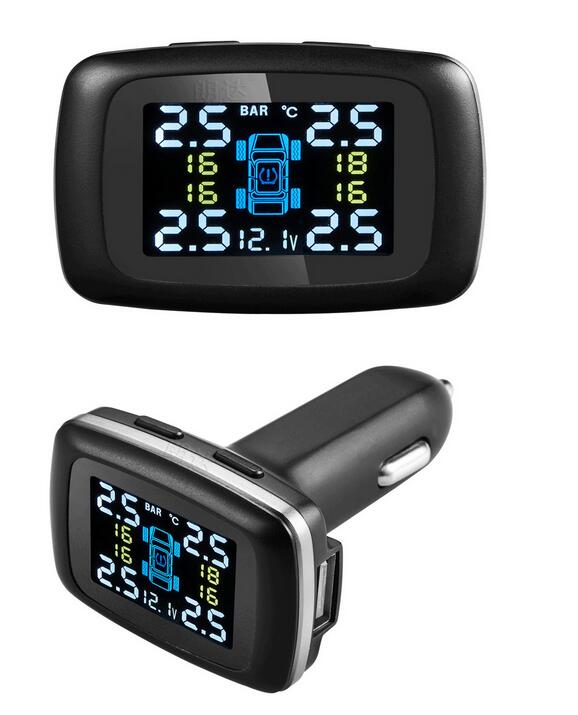

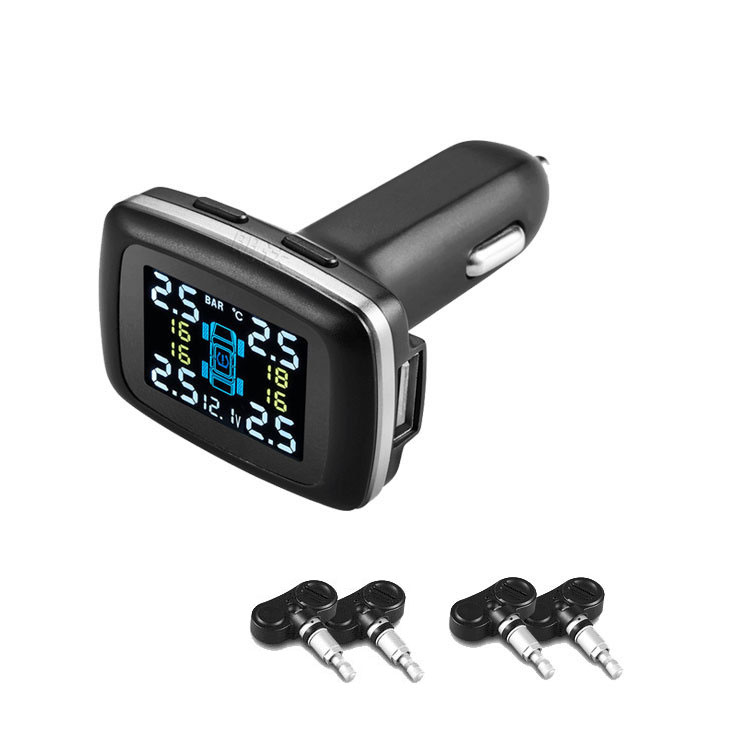

Tire Pressure Monitoring System TPMS Auto Alarm Car Colour Display 433.92MHz External Sensors

Tire Pressure Monitoring System TPMS Auto Alarm Car Colour Display 433.92MHz External Sensors

Five Functions:
- Predictable leak
- Preventive tire burst
- Lateral wall bulge
- Avoid vehicle deviation
- Reduce tire wear

Product description:
- Dual mode version
- Temperature unit  °C/°F switchable
- Pressure unit BAR/PSI  switchable
- Support spare tire monitoring
- Need to add spare tire sensor
- Can monitor tire dates:presure,temperature,battery,electricity.If there is any abnormity,it will transfer to the display and give an alarm.
- Real-time monitoring,date synchronous display
- Four wheel wireless smart sensing technology.
- It can start automatically when it power on.
- High voltage alarm value:3.0Bar
- Low voltage alarm value:2.0Bar
- High temperature alarm value:70°C
- If the tire monitoring date is beyond the preset safety range,The value on the display will flash,the fault Icon displays and alarm.You can cancel the alarm with any button.But other alarm prompting datas still display until the fault eliminate.

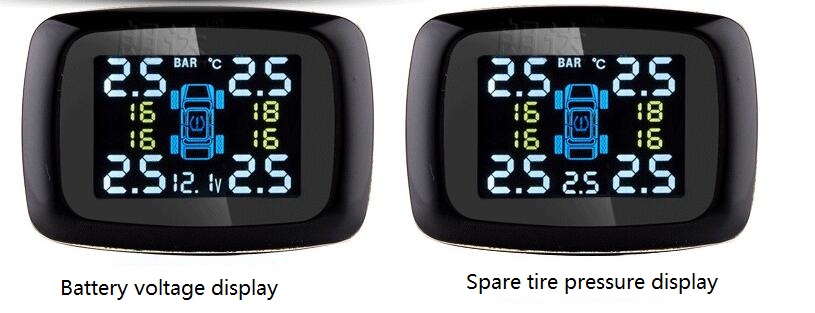

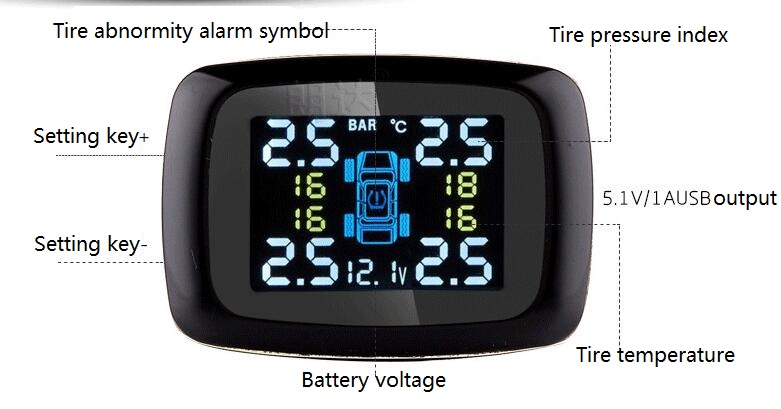

Display parameter:
- Working efficiency:433.92MHz
- Working temperature:-40°C~135°C
- Working voltage:DC 10V~24V

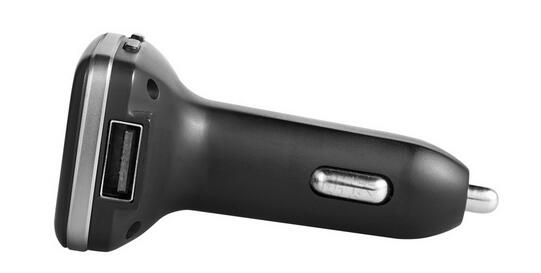

- SB output:5.1V/1A
- Weight:9g
- Pressure monitoring range:0~5.0BAR

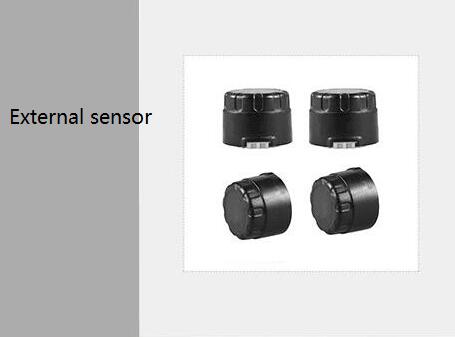

External sensor parameter:
- Transmission power:<10dBm
- Transmission frequency:433.92MHz+-15KHz
- Pressure testing range:0~8Bar
- Battery life:1~3 year
- Battery replacement:replaceable
- Weight:9.5g
- Dynamic balance:NO
- Install method:sensor self-intall
- If you drive for 4 hours everyday,you can use for 1~3year.

Note:The external sensor,install on the valve core,self DIY,intall and use,you need to screw the sensor before pumping up the tire.

Package List:
- 1 x Tire Pressure Monitoring System
