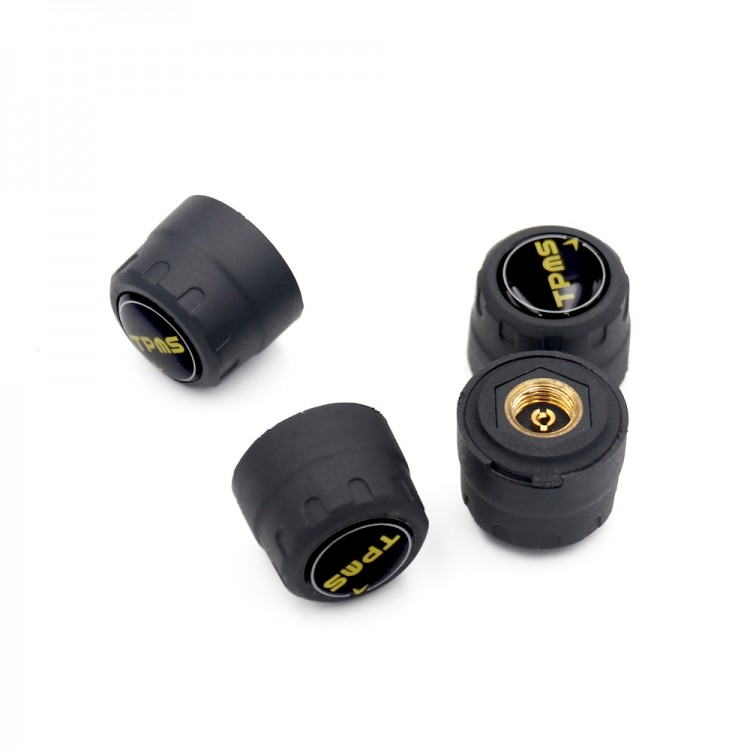

V101B Bluetooth 4.0 TPMS Tire Pressure Monitoring System TPMS Sensor Set For Android IPhone Ipad

V101B Bluetooth 4.0 TPMS Tire Pressure Monitoring System TPMS Sensor Set For Android IPhone Ipad

Description:
It is based on a new Bluetooth technology-Bluetooth 4.0 (Bluetooth Low Energy) new tire pressure monitoring system (TPMS) design.

With low cost, low power consumption and high stability of Bluetooth 4.0 (Bluetooth Low Energy), it helps you build tire pressure monitoring system. It is a direct tire pressure monitoring system, that is, pressure and temperature sensors are installed on vehicle tires, and tire pressure information is transmitted to device for Android, iPhone and iPad equipped with Bluetooth 4.0 through Bluetooth transmission. And on APP software installed displays real-time data. In this way, the tire pressure and temperature of your vehicle can be monitored in real time, and an alarm can be issued when the tire pressure and temperature are abnormal.

TPMS is mainly used to monitor the temperature and pressure of automobile tires in real time. When the pressure and temperature exceed or fall below the standard value range, the system will send out an alarm signal, thereby effectively avoiding traffic accidents.

The TPMS system uses a direct temperature and pressure measurement system. The system is divided into two modules: Bluetooth 4.0 communication module and smart terminal. The Bluetooth 4.0 communication module uses the temperature and pressure sensor in the tire and the Bluetooth 4.0 transceiver to send data to the smart terminal. The tire pressure and temperature are monitored in real time, and the data signal is wirelessly transmitted to the smart terminal and displayed on the corresponding APP program interface. When tire leaks, tire pressure is too high or too low, temperature is too high and other abnormal conditions, the mobile phone will automatically alarm and display the tire status to ensure the safety of the car. The monitoring effect is relatively accurate and reliable.

Product Parameters:
- Core: For ARM M0
- Main control chip: DA14531
- Communication name: TPMS1-4_XXXXXX
- Communication method: Bluetooth 4.0
- Working voltage: 3V
- Quiescent current: ≤ 1.4-1.8μA
- Bluetooth operating frequency: 2.4GHz
- Bluetooth transmit power: 0dBm MAX.
- Response time: ≤ 5s
- Display mode: APP mode
- Waterproof rating: IP67
- Working humidity: 95% MAX.
- Tire pressure detection range: 100-1300kPa
- Tire pressure detection accuracy: ± 10kPa
- Tire temperature detection accuracy: ± 3℃
- Working temperature: -30℃ to +70℃ (external type)
- Storage temperature: -30℃ to +70℃ (external type)

Package Included:
- 1 x Set of TPMS
