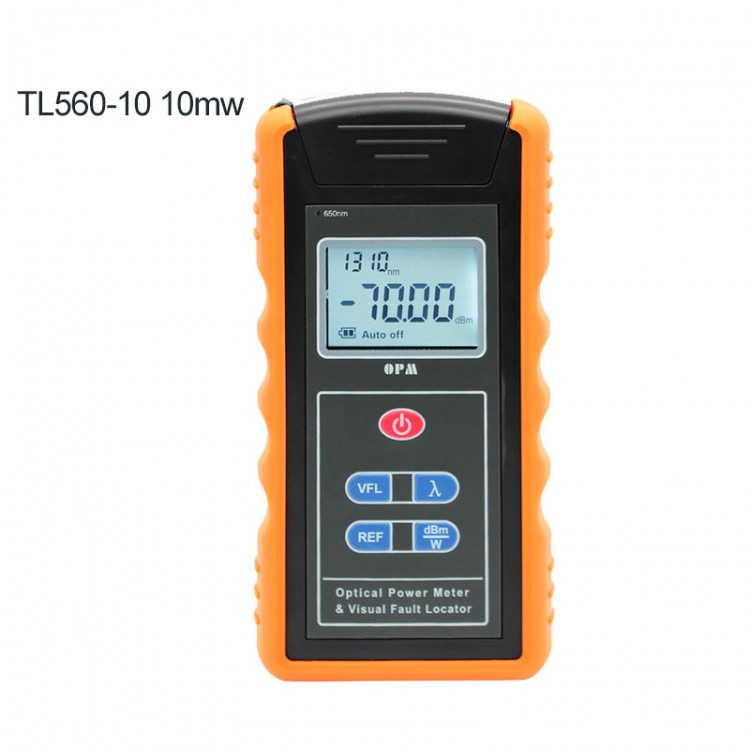

TL560 Fiber Optical Power Meter Multimeter -70 ~ + 10dBm/50 ~ + 26dBm Optional 10mw Power Red Light

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.46
  • Price in reward points: 345 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.77 $33.08 $32.05 $30.67 Contact US
Quantity:

TL560 Fiber Optical Power Meter Multimeter -70 ~ + 10dBm/50 ~ + 26dBm Optional 10mw Power Red Light

Description:

The optical multimeter has a rugged shell, small size, light weight, portable and low power consumption, large LCD display, making measurement faster and more convenient. It is suitable for cable television systems, optical communications, other fields construction and equipment maintenance.

Specification:
Power Measurement Range: A: -70 ~ + 10dBm / C: -50 ~ + 26dBm
Wavelength Measurement Range: 800 ~ 1700nm
Wavelength Calibration: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Probe Type: InGaAs
Accuracy: <±3% (-10dBm, 22℃)
Display Resolution (dB): linear display: 0.1%, logarithmic display: 0.01dBm
Operating Temperature: -10 ~ + 50℃
Storage Temperature: -20 ~ + 70℃
Relative Humidity: 90% (+ 30 ), non-condensing
Optical Interface: FC, SC (ST LC optional)
Power: 2*AA batteries (not included)
Battery Continuous Operation Time: 120 hours (optical power works only)
Automatic Shutdown Time: 10min
Weight: 180g
Size: 158 x 82 x 29mm
Red Light Accessory: wavelength 650nm, power 10mw, output 0HZ, 2HZ

Features:
-Support 6 wavelength, 50nm/1300nm/1310nm/1490nm/1550nm/1625nm, suitable for various test environment.
-The universal optical interface is equipped with FC and SC adapters, and the red light part is  1/10/20/30/50mw optional.
-Rubber protective sleeve to better protect the machine and extend the service life.

Calibration Method:
1. Turn the DIP switch the battery back cover to ON terminal to enter the calibration procedure.
2. Press REF button to increase 0.05dB, press dBm/W button to decrease 0.05dBm/W, press λ button to switch wavelength.
3 .Press the power button to save the calibration value.
4. After finishing calibration, turn the DIP switch to OFF terminal.

Package List:
-1 x Power Meter
-1 x SC Interface
-1 x FC Interface
-1 x Red Light Interface
-1 x User Manual
-1 x Meter Bag

Note:
1. The product dose not include battery. It is recommended to use 2*AA batteries.
2. Available in blue and orange, shipped randomly.
3. The product is optional in in two types: A: -70 ~ + 10dBm / C: -50 ~ + 26dBm.
