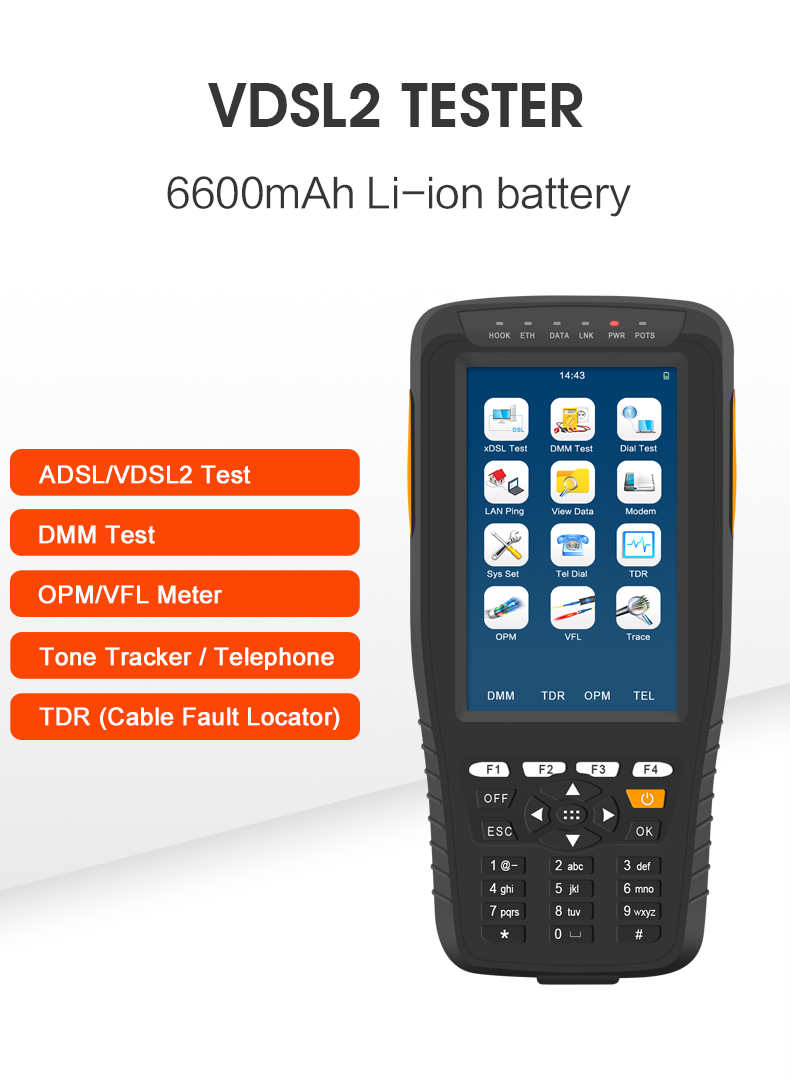

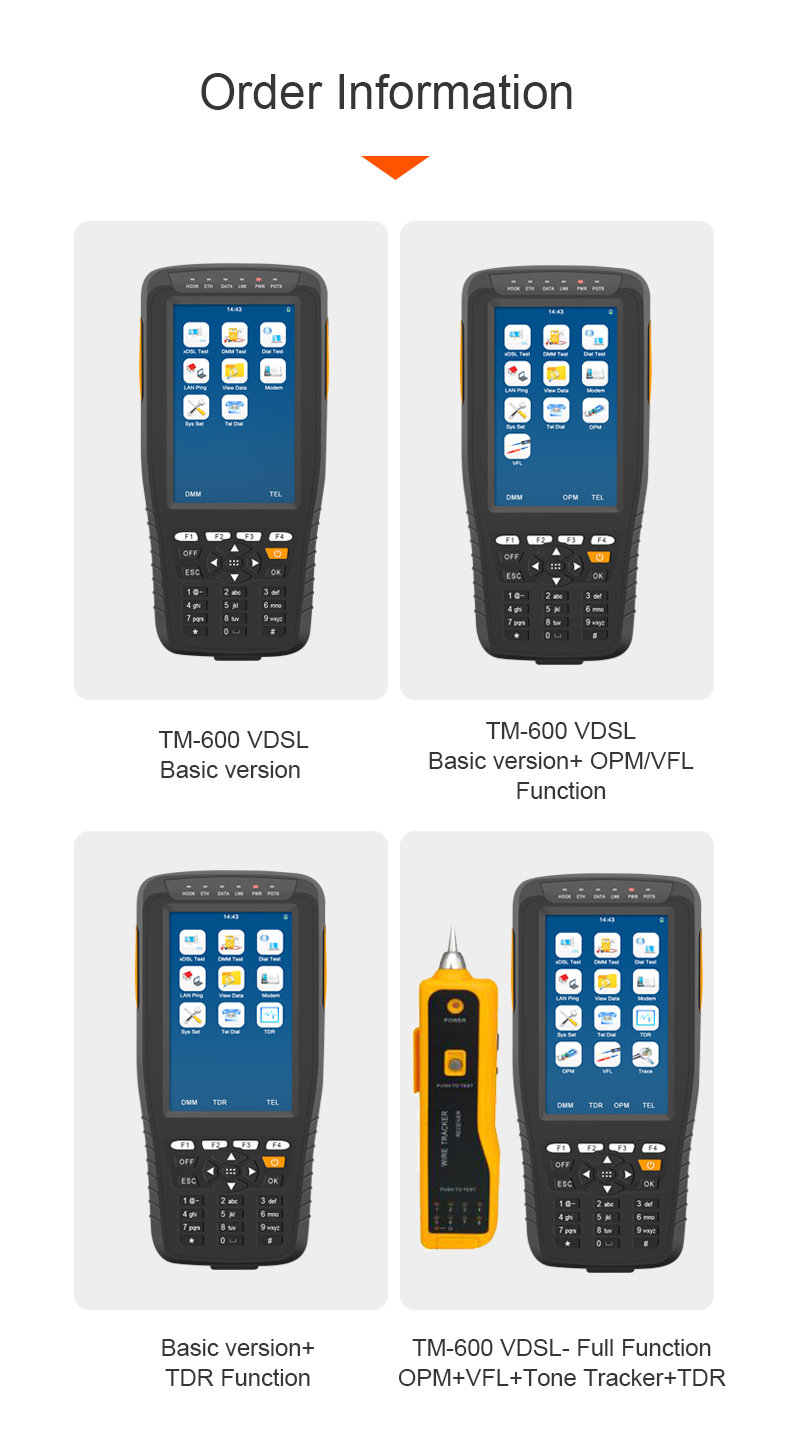

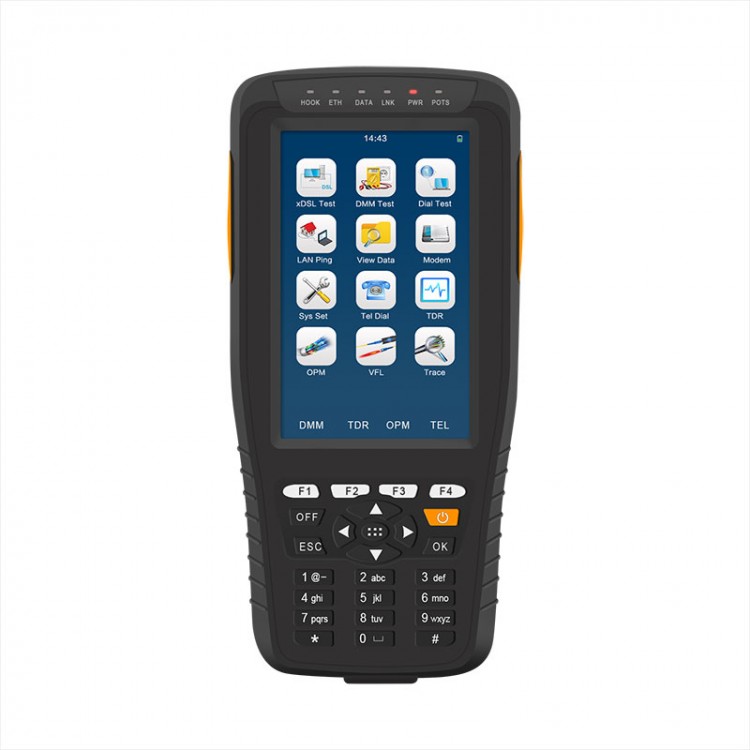

TM-600 VDSL Tester Full Function Version (ADSL/VDSL2/OPM/VFL/TDR Function/Tone Tracker)

TM-600 VDSL Tester Full Function Version (ADSL/VDSL2/OPM/VFL/TDR Function/Tone Tracker)

Description:
TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc.) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;

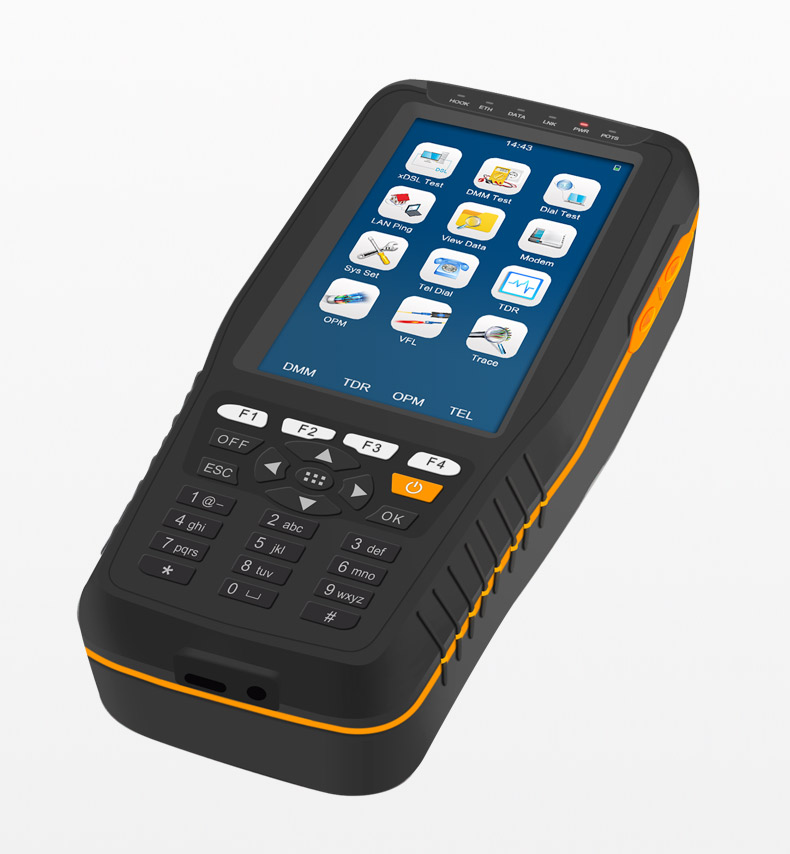

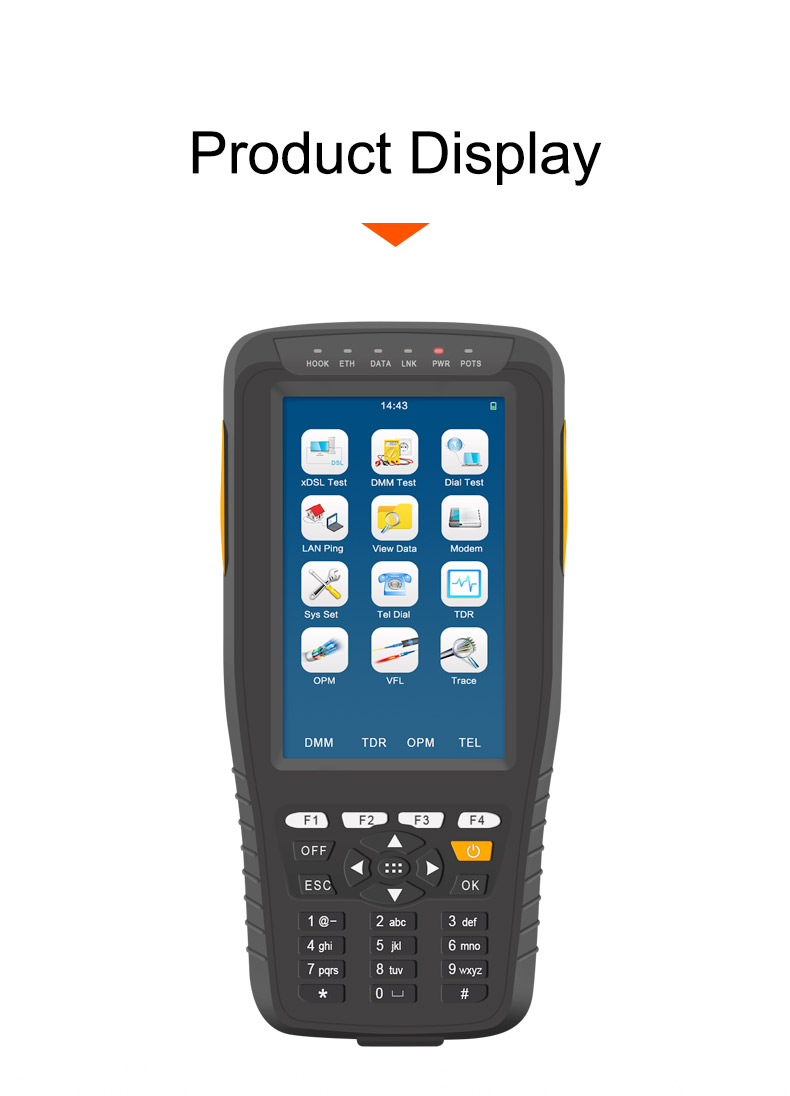

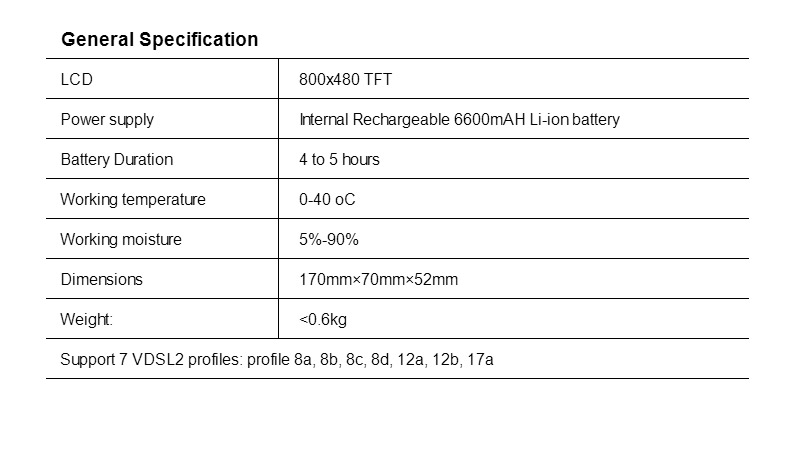

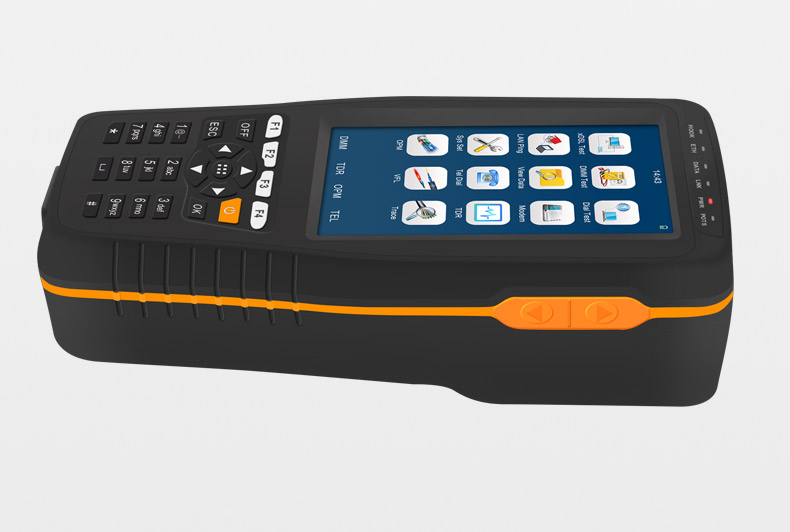

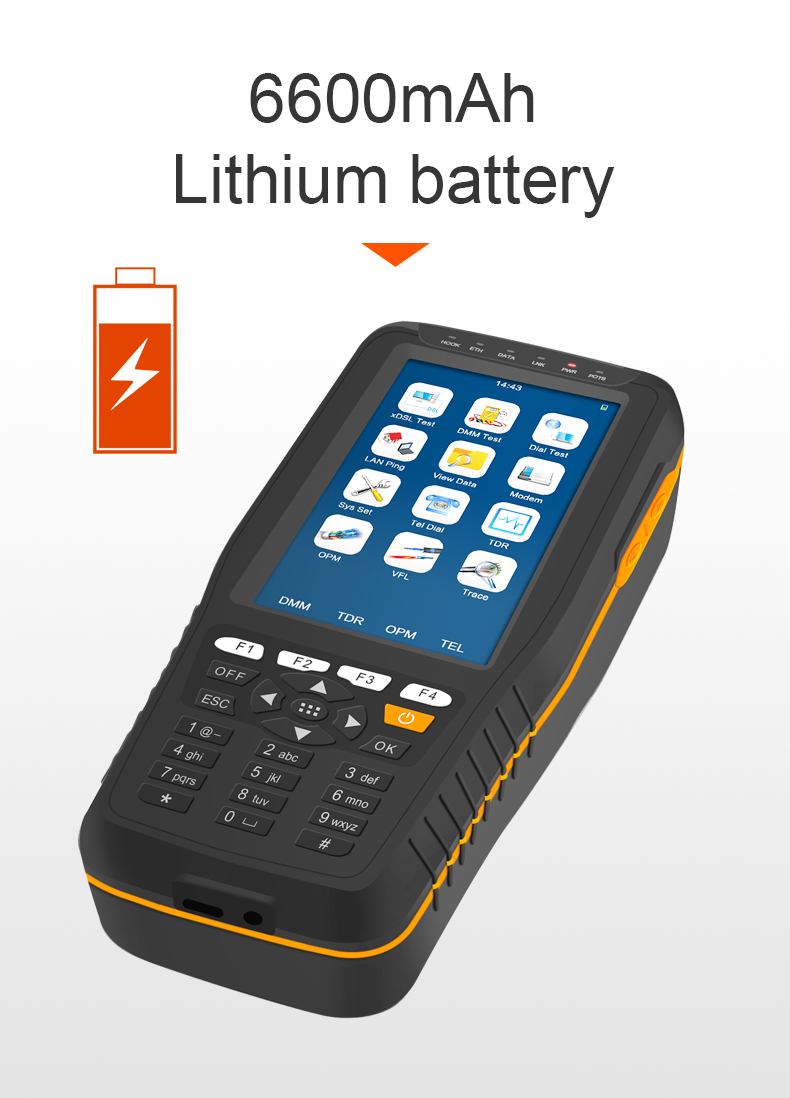

It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery, etc.

Key Features:

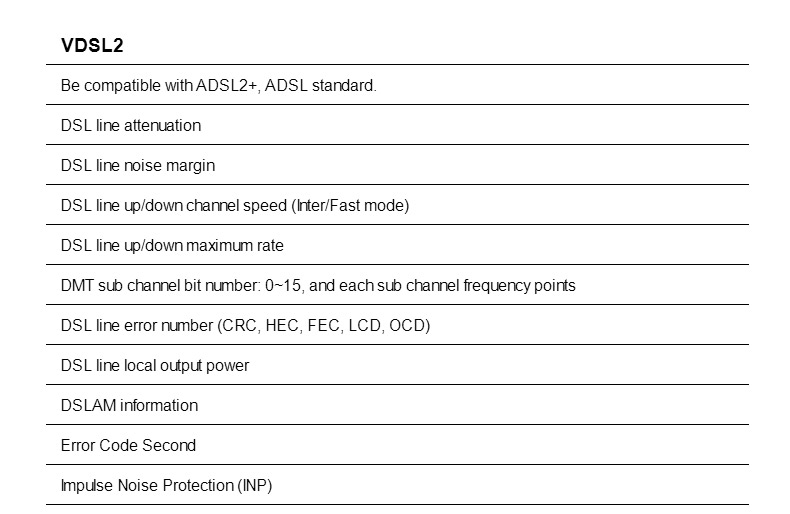

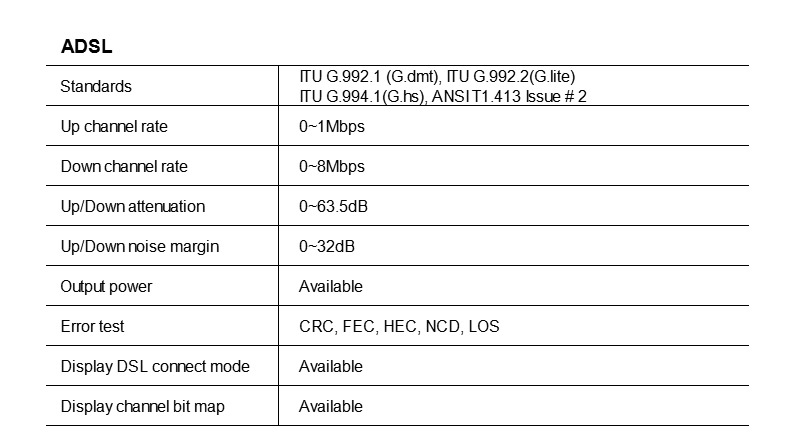

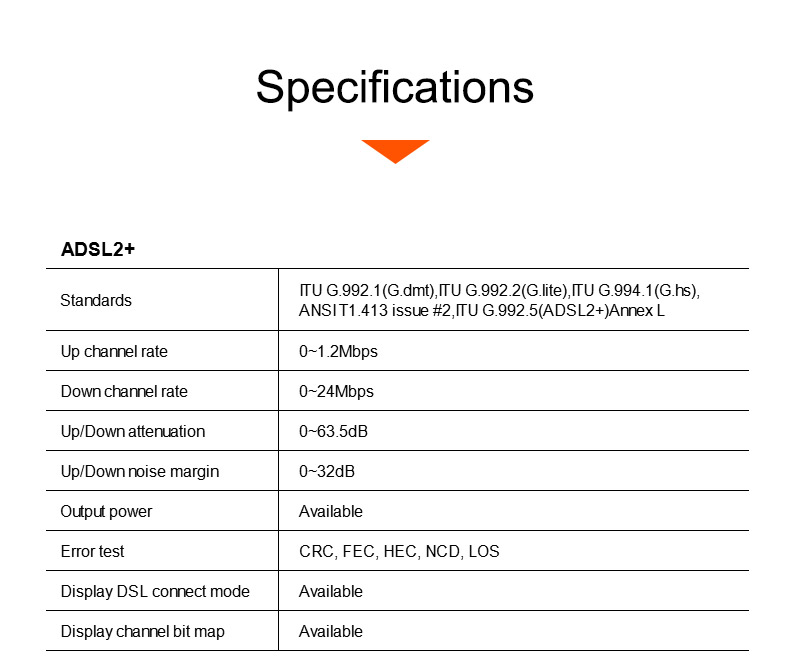

- Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2

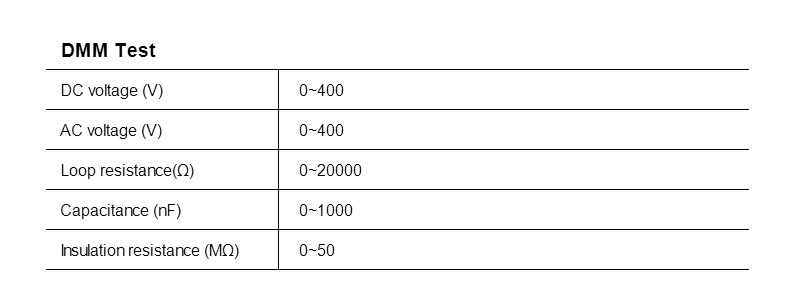

- Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
- Supports Modem emulation and simulating login to Internet
- Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

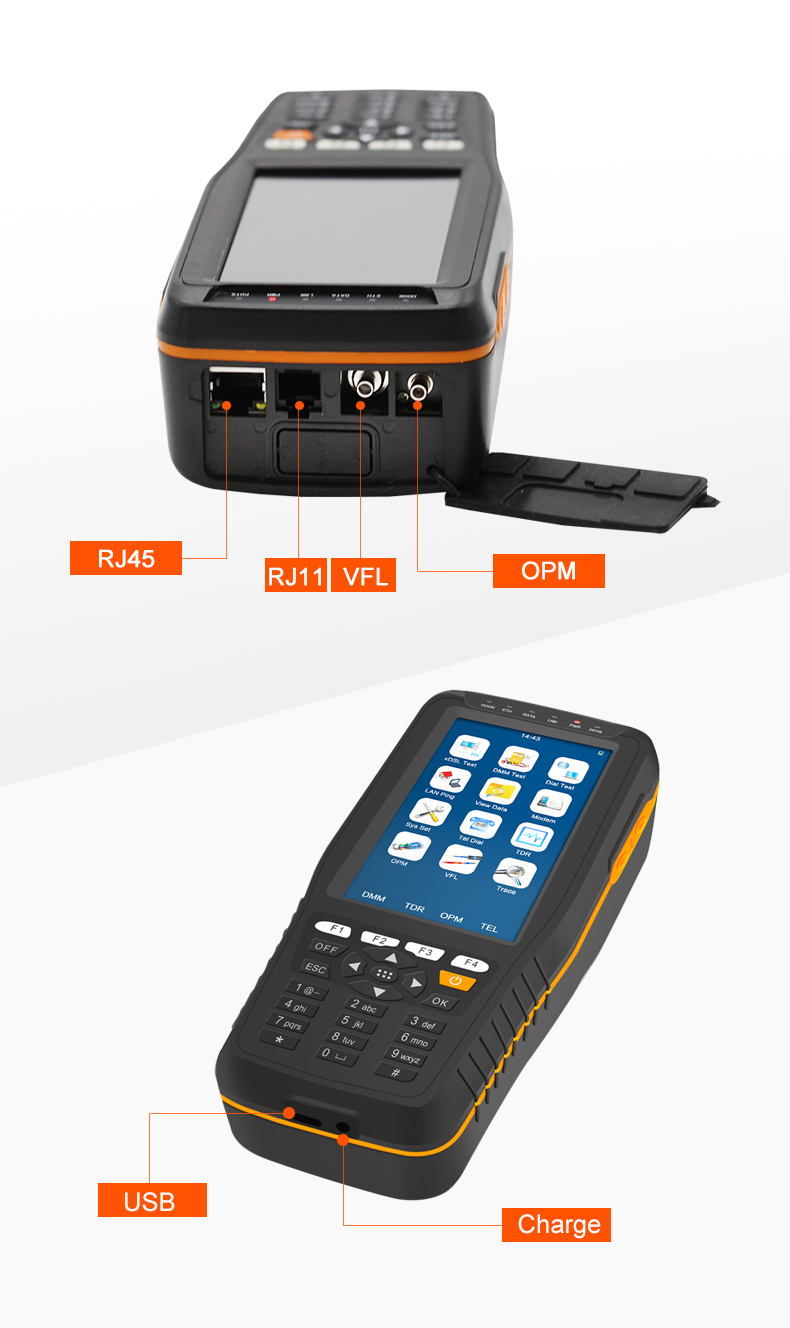

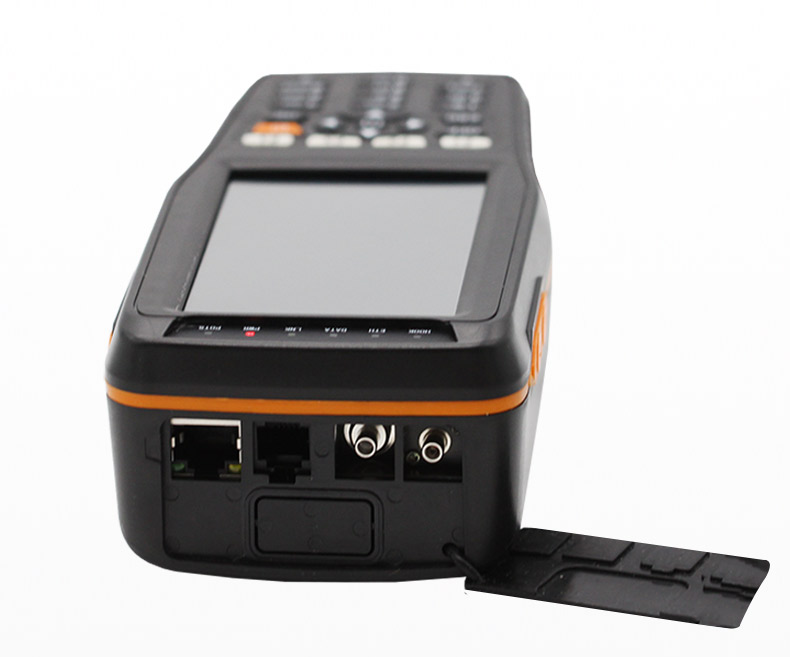

- Connects to CO via alligator clip or RJ11
- Rechargeable Li-ion Battery
- Beep and LEDs alarm indications (Lower Power, PPP, LAN, xDSL)
- Data memory function

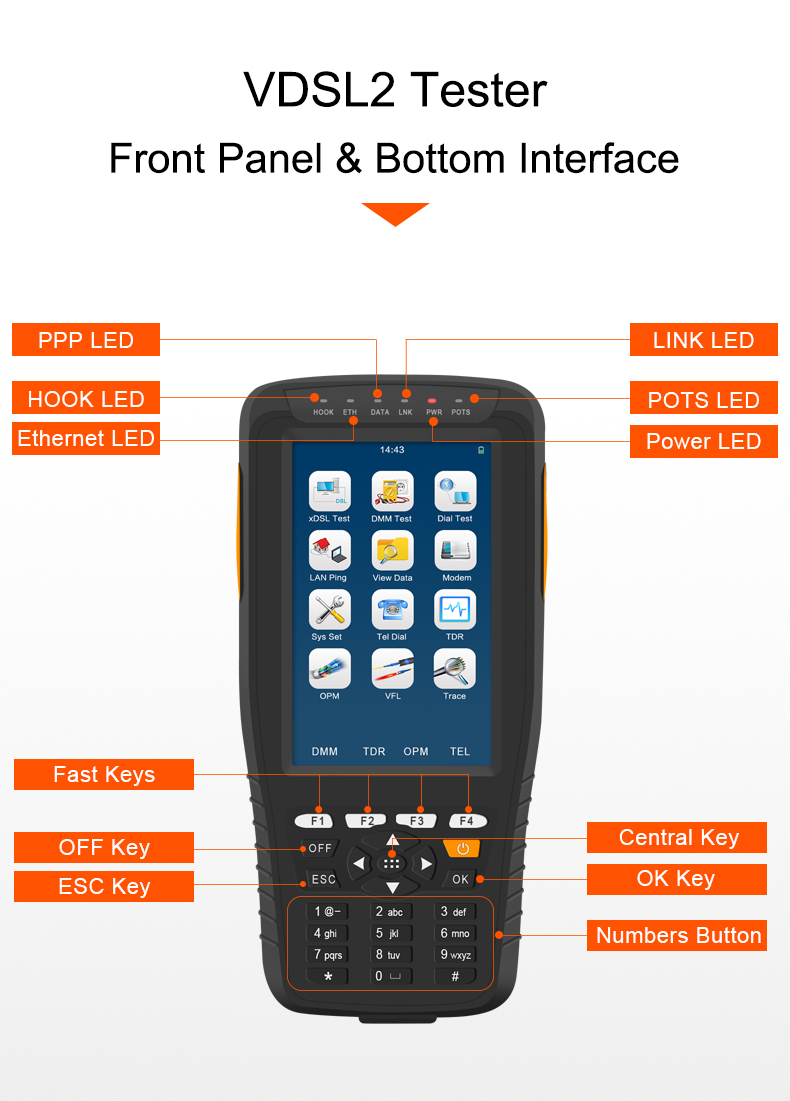

- LCD display, Menu operation
- Automatically shut off if no any operation on keyboard
- Compliant with all known DSLAMs
- Software management
- Simple, portable and money-saved

Functions:
- DSL Physical layer test
- Modem Emulation (Replace the user Modem completely)
- PPPoE Dialing (RFC1683,RFC2684,RFC2516)
- PPPoA Dialing (RFC2364)
- Telephone Function
- DMM Test
- Ping Function (WAN & LAN)
- Data upload to computer and software management
- Setup system parameter: backlight time, shut off automatically time without operation, press tone
- Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
- Check dangerous voltage

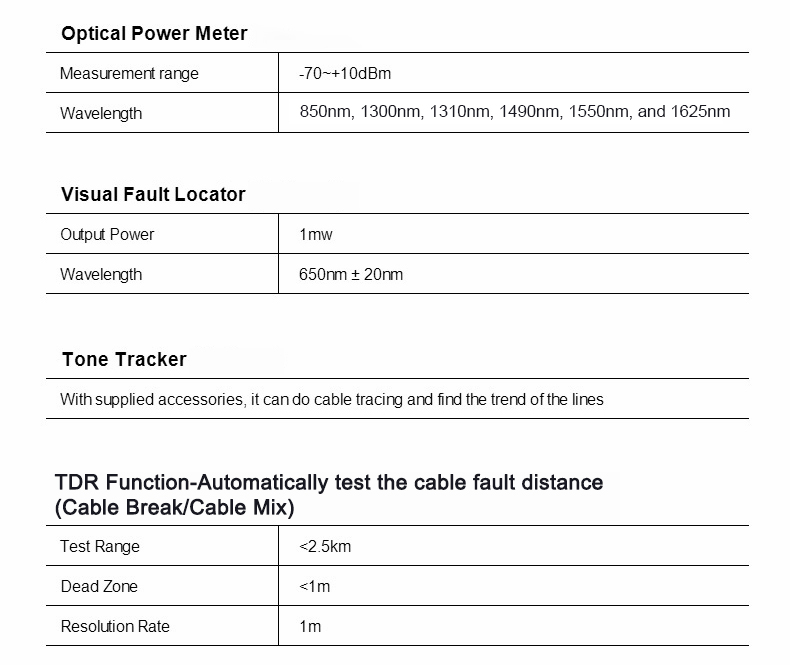

- Optical Power Meter (Included)
- Visual Fault Locator (Included)
- Tone Tracker (Included)
- TDR Cable Fault Locator (Included)

Package Included:
- 1 x VDSL Tester
- 1 x Carry Case and Strap
- 1 x Battery Charger
- 1 x Test Cord
- 1 x Direct Network Cable
- 1 x USB Cable
- 1 x CD (Management Software)
- 1 x Factory Test Report
- 1 x Wire Tracker
